Parking Brake Switch

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

PARKING BRAKE SWITCH TERMINALS CONTINUITY REFERENCE

	Continuity to ground
Parking brake pedal depressed	Yes
Parking brake pedal released	No

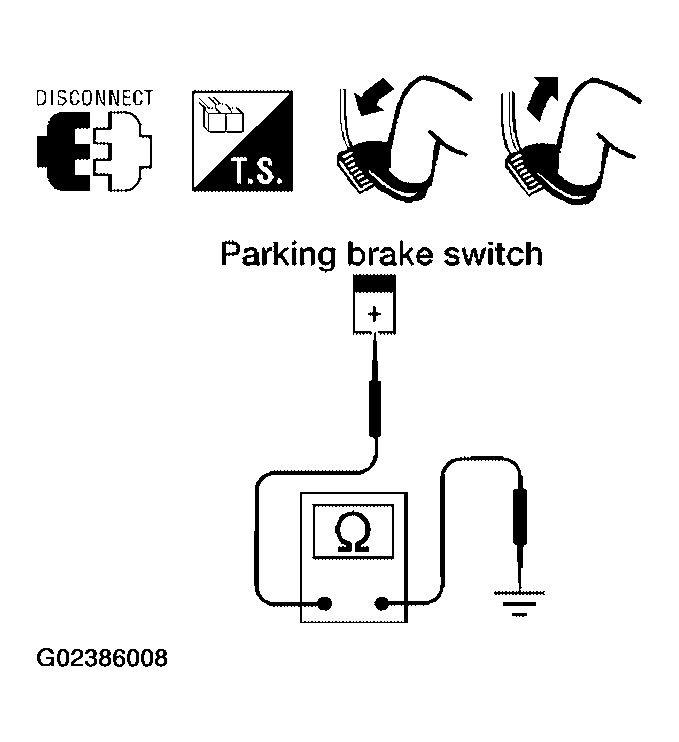

Fig 1: Identifying Parking Brake Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
