ICC Brake Switch and Stop Lamp Switch

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

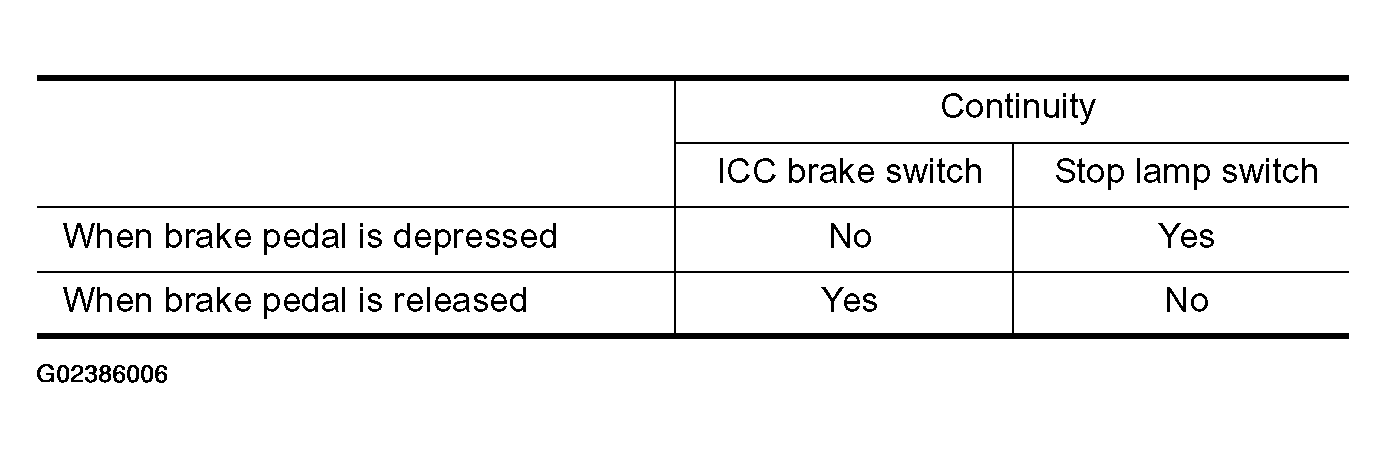

Fig 1: ICC Brake Switch And Stop Lamp Switch Continuity Chart
G02386006Courtesy of NISSAN MOTOR CO., U.S.A.

Check each switch after adjusting brake pedal. Refer to  "BRAKE PEDAL ".

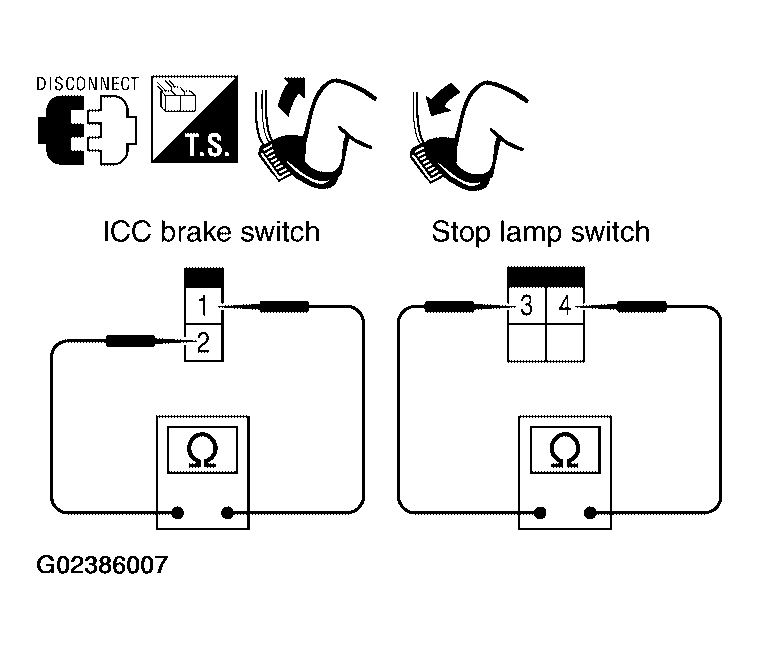

Fig 2: Identifying ICC Brake Switch and Stop Lamp Switch
G02386007Courtesy of NISSAN MOTOR CO., U.S.A.
