Terminals and Reference Value for Display Control unit
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

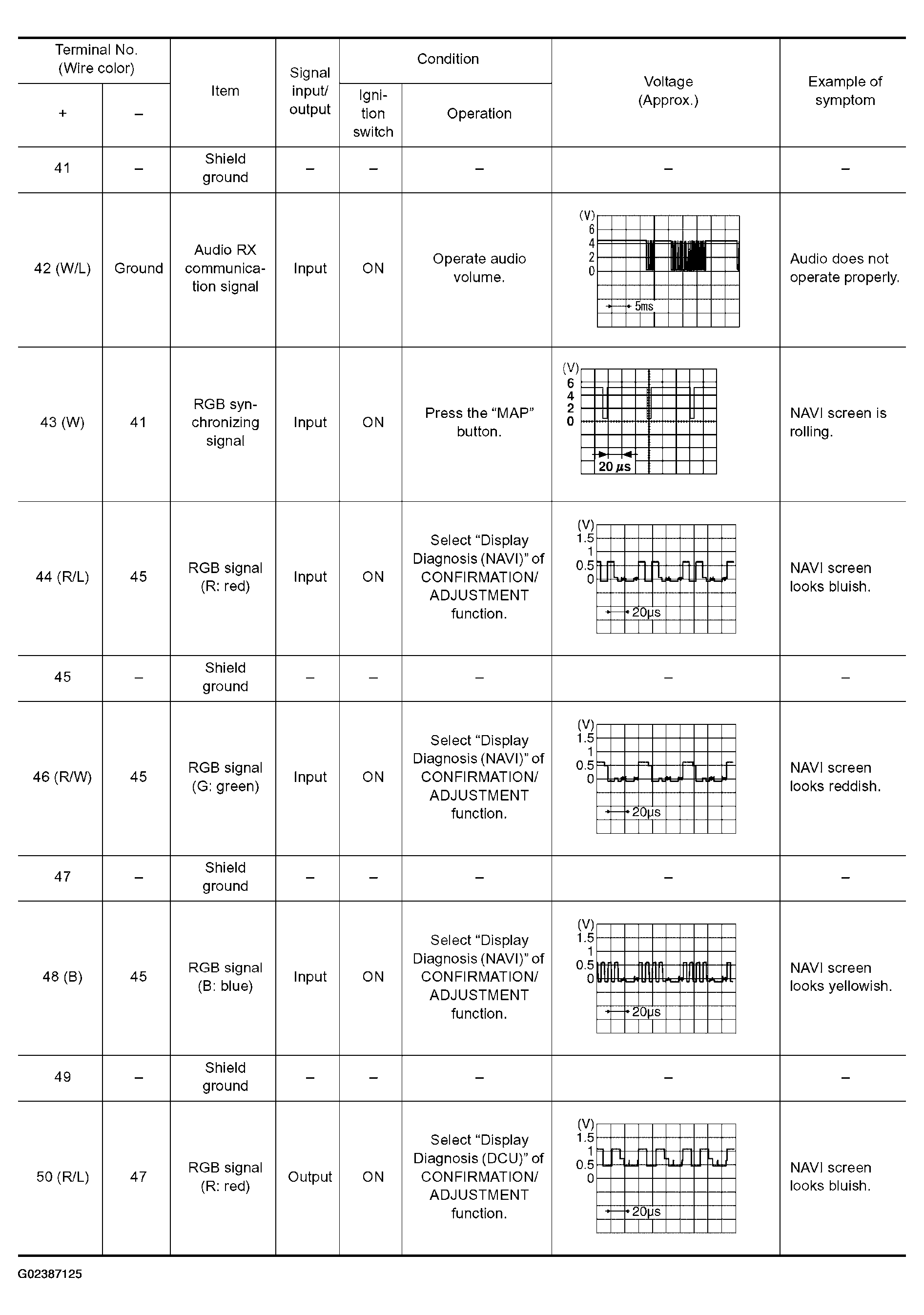

Fig 1: Display Control Unit - Terminals And Reference Value Chart (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

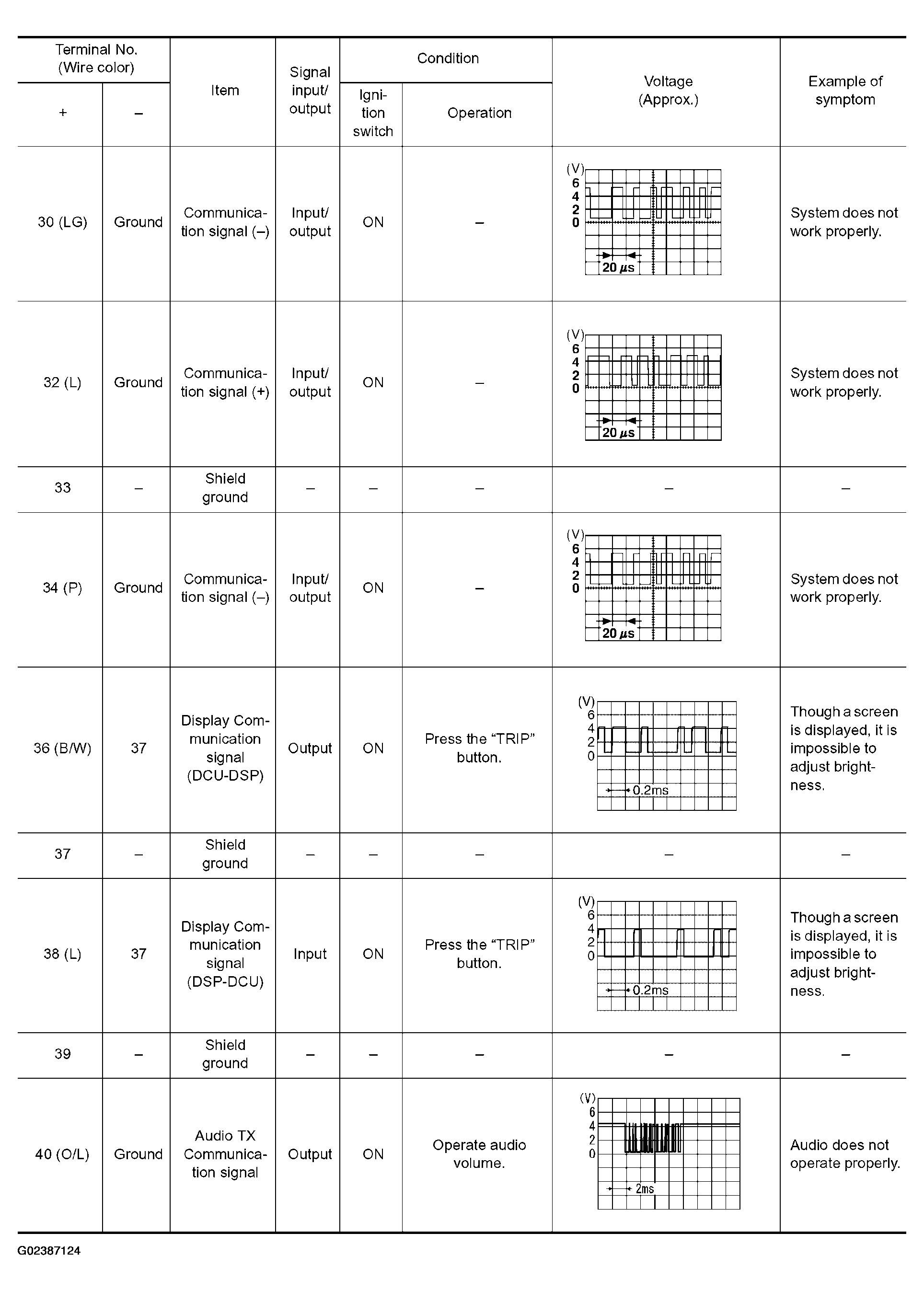

Fig 2: Display Control Unit - Terminals And Reference Value Chart (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

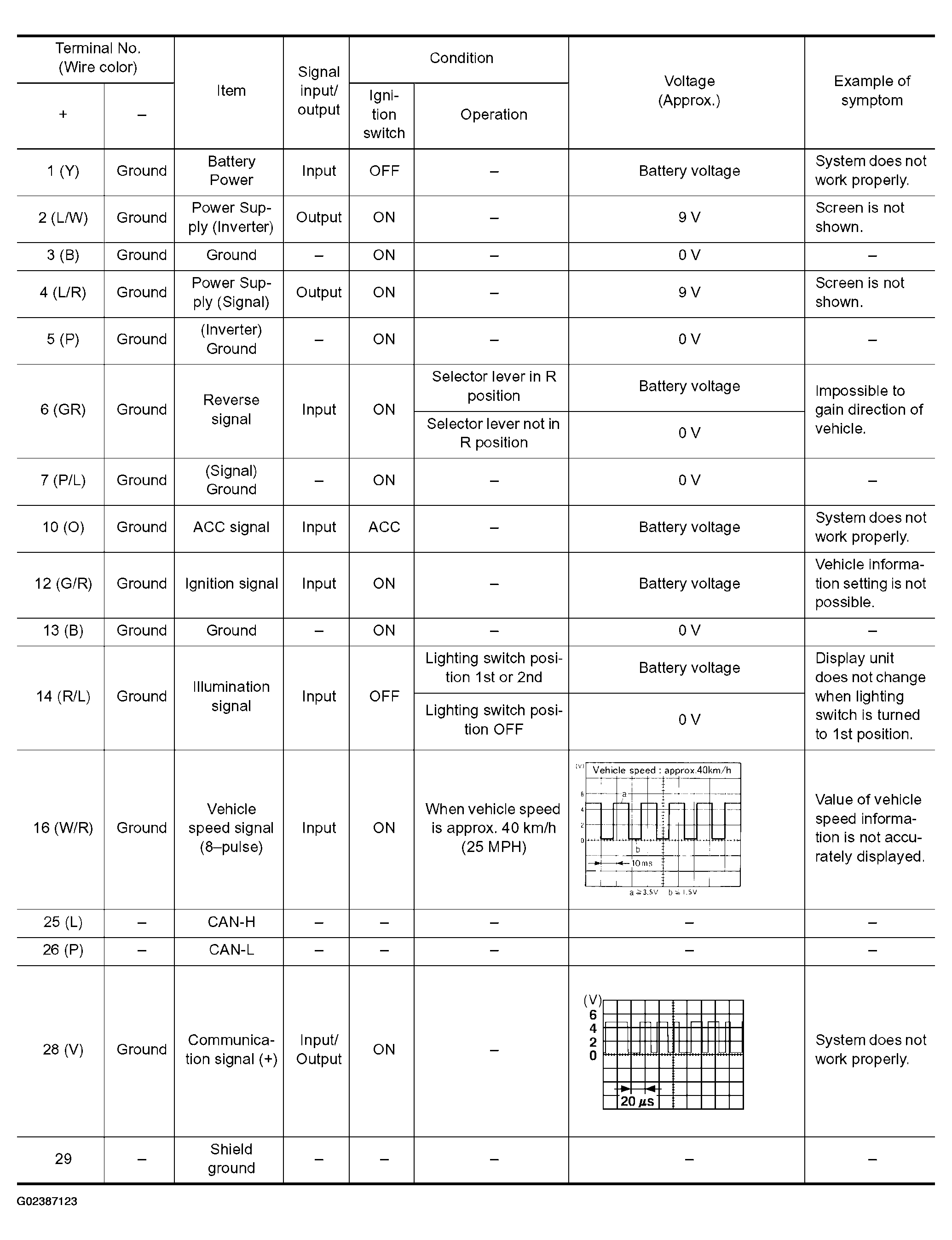

Fig 3: Display Control Unit - Terminals And Reference Value Chart (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

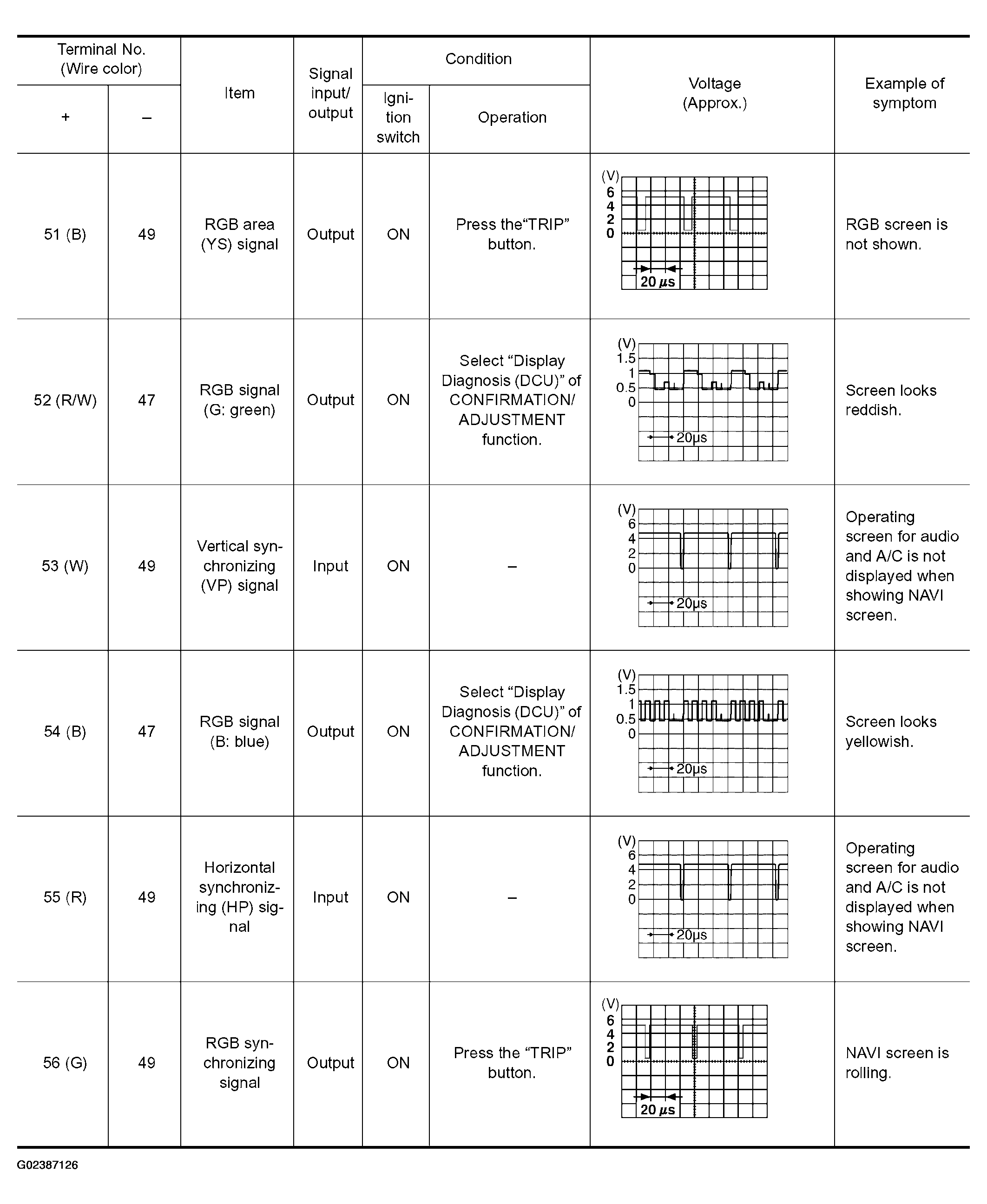

Fig 4: Display Control Unit - Terminals And Reference Value Chart (4 Of 4)
