Function Of Center Switch: Notes

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Display with Pushed "DEST" button

Easy Mode ("Short Menus" ON)

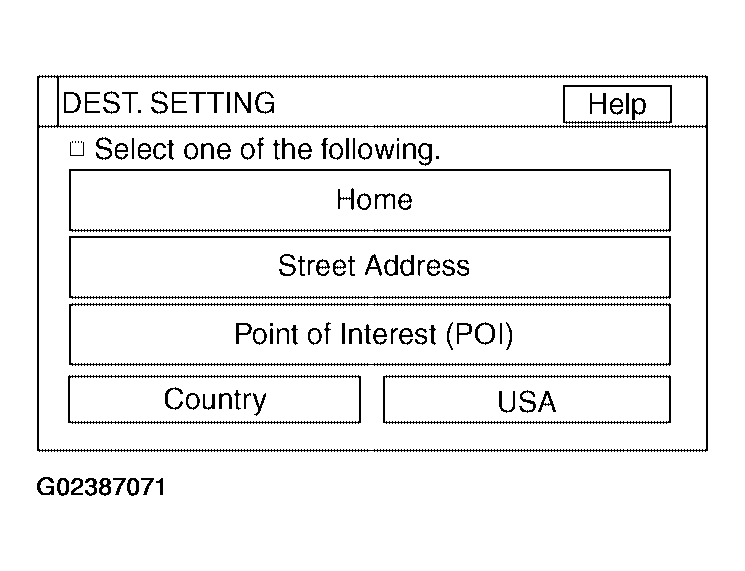

Fig 1: Identifying Easy Mode Display With "DEST" Button
Courtesy of NISSAN MOTOR CO., U.S.A.
Expert Mode ("Short Menus" OFF)

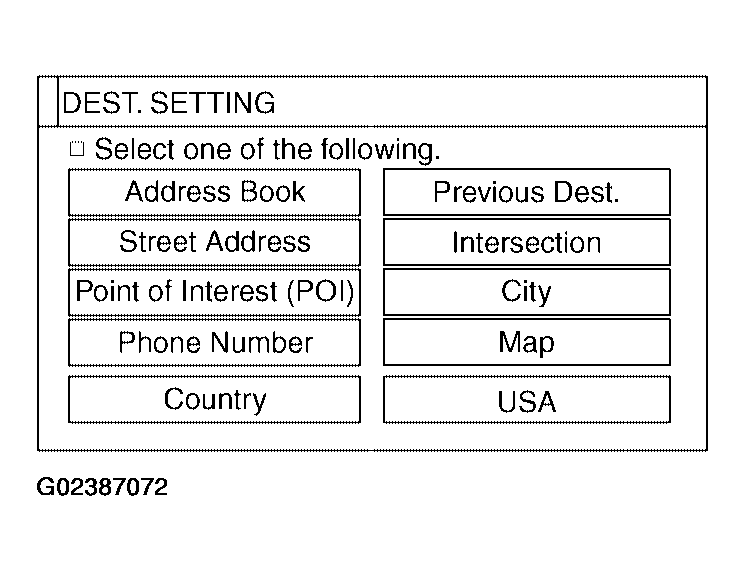

Fig 2: Identifying Expert Mode Display With "DEST" Button
Courtesy of NISSAN MOTOR CO., U.S.A.

The function of each icon is as follows:

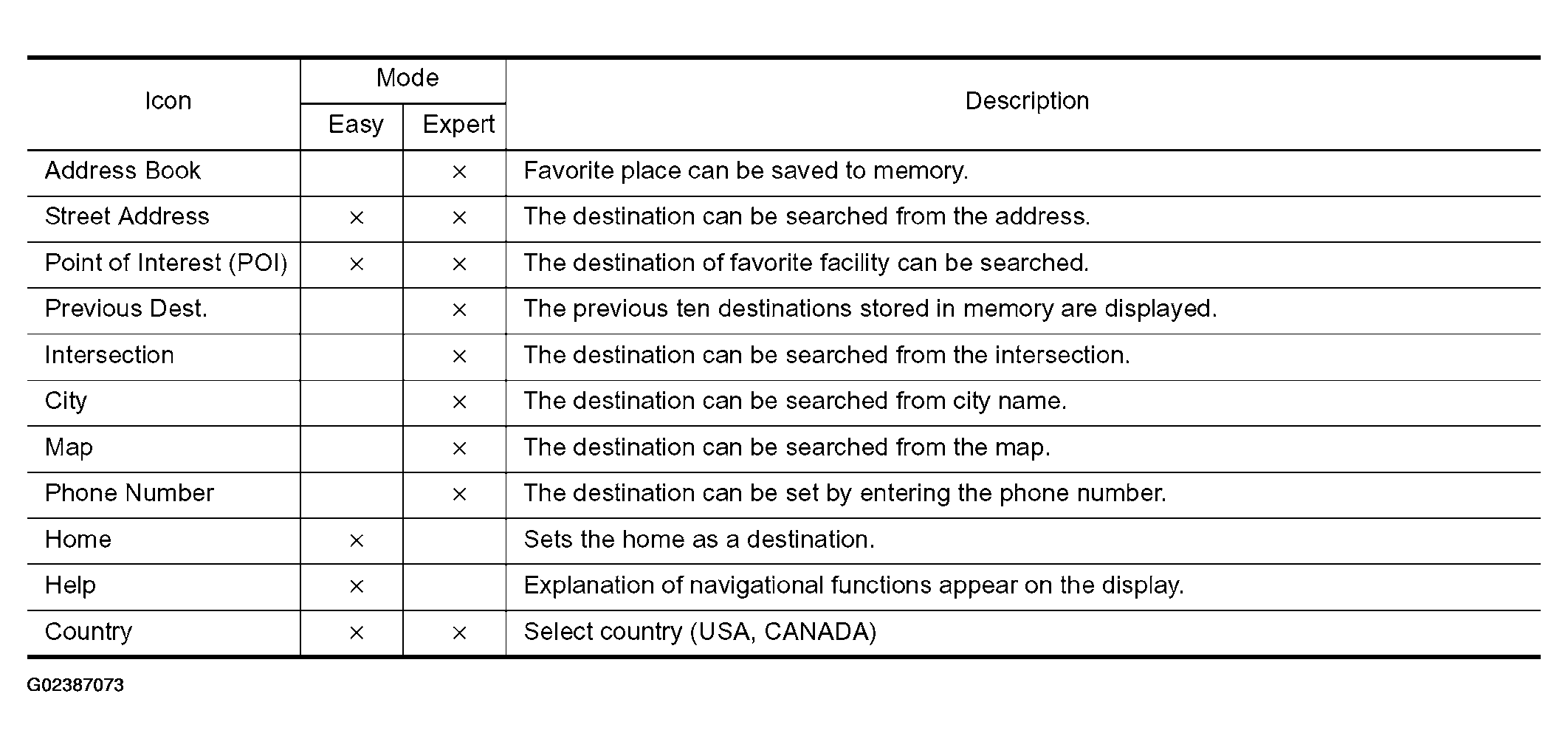

Fig 3: "DEST" Setting Display - Icon Description Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
