Self-Diagnosis Result: Notes

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Quick reference table

Select an malfunctioning diagnosis No. in the diagnosis result quick reference table.
Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to "WIRING DIAGRAM - COMM - ".
Turn the ignition switch OFF and perform self-diagnosis again.

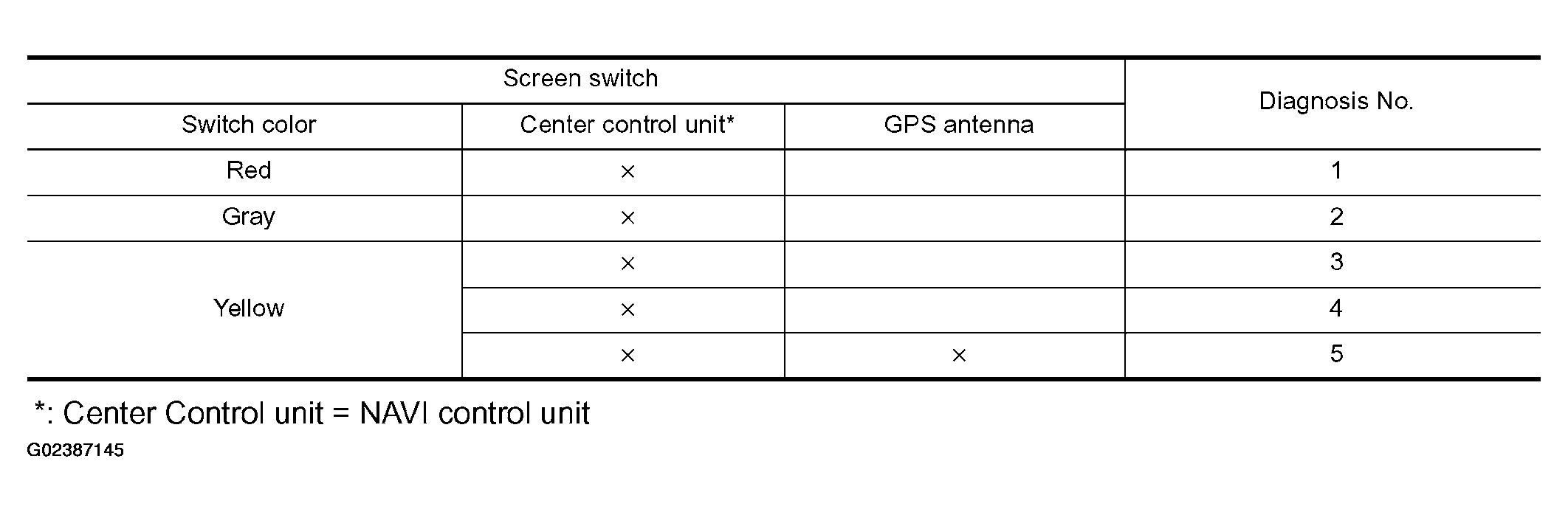

Fig 1: Self-Diagnosis Result - Quick Reference Table
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- When AV switch has a malfunction, you cannot start. Refer to "UNABLE TO OPERATE ALL OF AV SWITCHES (UNABLE TO START SELF-DIAGNOSIS) ".
- When display unit has a malfunction, you cannot start. Refer to "SCREEN IS NOT SHOWN ".
