Self-Diagnosis Result: Notes

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Quick reference table

Select a malfunctioning diagnosis No. in the diagnosis result quick reference table.
Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to "WIRING DIAGRAM - COMM - ".
Turn the ignition switch OFF and perform self-diagnosis again.

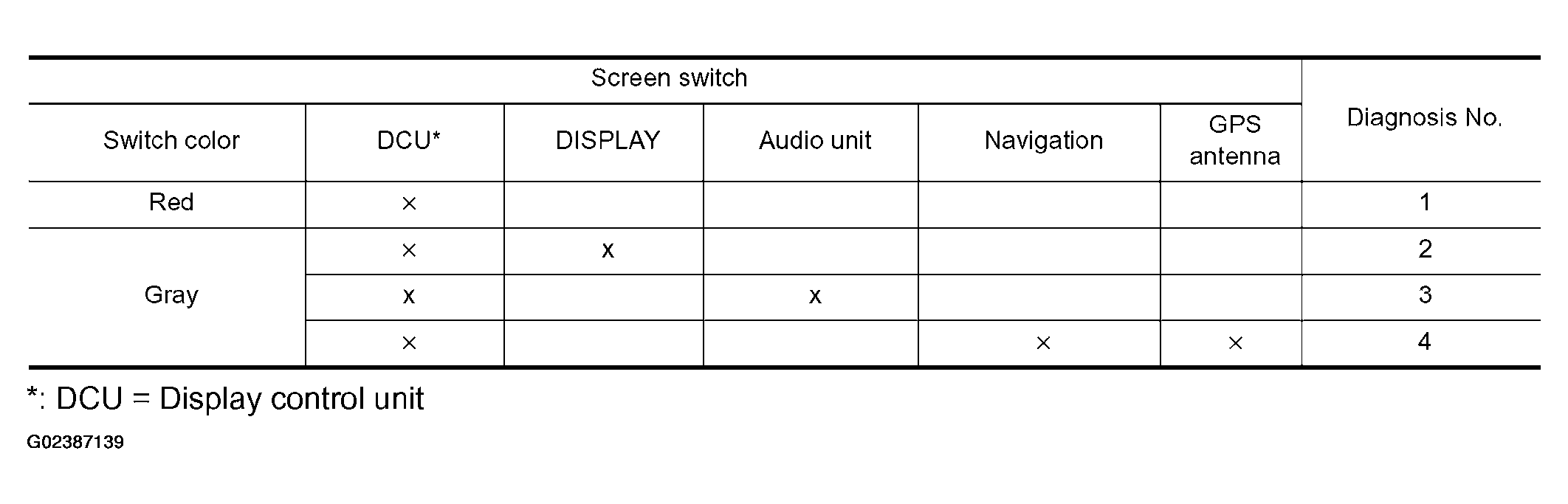

Fig 1: Self-Diagnosis Result - Quick Reference Table
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- When AV switch has a malfunction, you cannot start. Refer to "UNABLE TO OPERATE ALL OF AV SWITCHES (UNABLE TO START SELF-DIAGNOSIS) ".
- When display unit has a malfunction, you cannot start. Refer to "SCREEN IS NOT SHOWN ".
