Removal and Installation of GPS Antenna

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove defroster grille.
  2. Remove screws.
  3. Remove center console. Refer to "CENTER CONSOLE ".

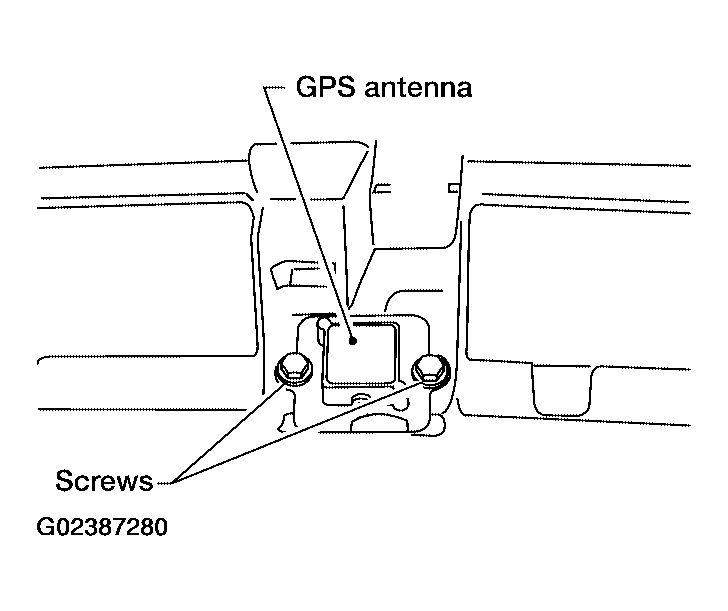

    Fig 1: Identifying GPS Antenna Screws
    G02387280Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Disconnect GPS antenna connector and remove GPS antenna and feeder assembly out the top.
  5. Installation is in the reverse order of removal.

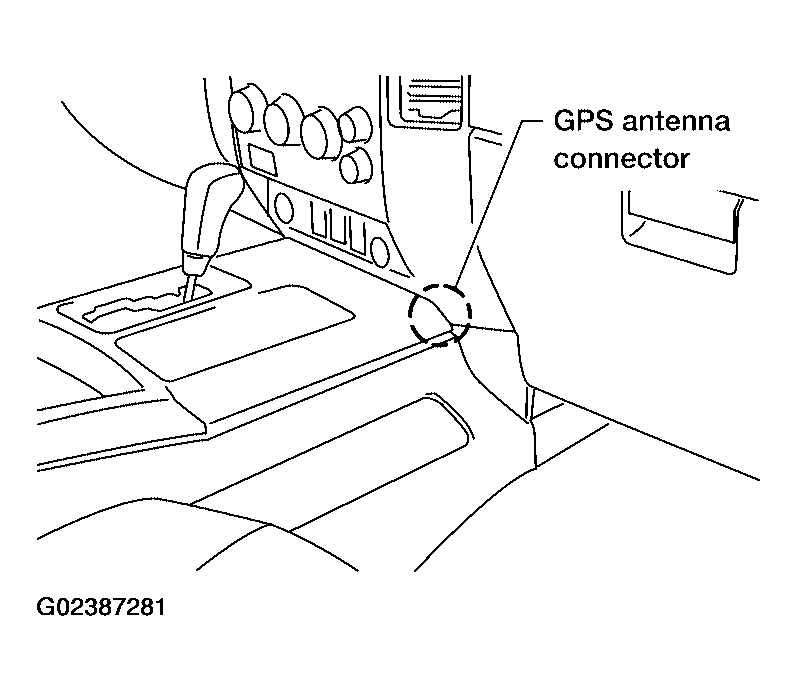

    Fig 2: Identifying GPS Antenna Connector
    G02387281Courtesy of NISSAN MOTOR CO., U.S.A.
