Illumination Signal Check for NAVI Control Unit

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ILLUMINATION SIGNAL
1. Turn the ignition switch ON.
2. Check voltage between NAVI control unit and ground.

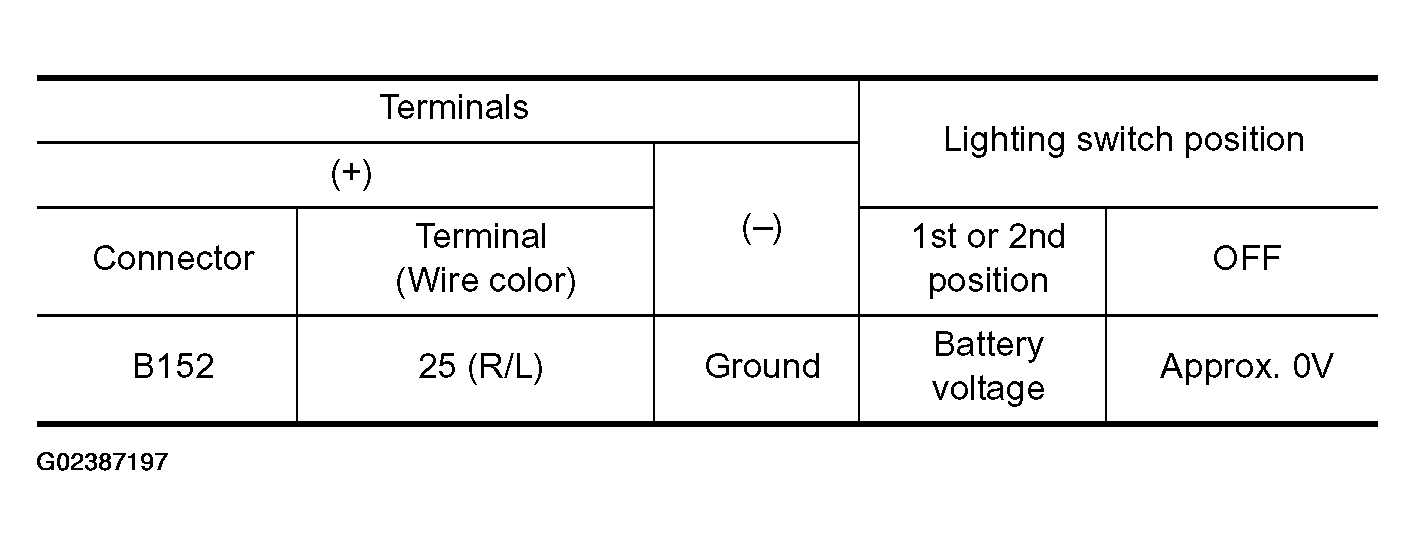

  Fig 1: NAVI Control Unit Connector B152 Terminals And Ground Voltage Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.

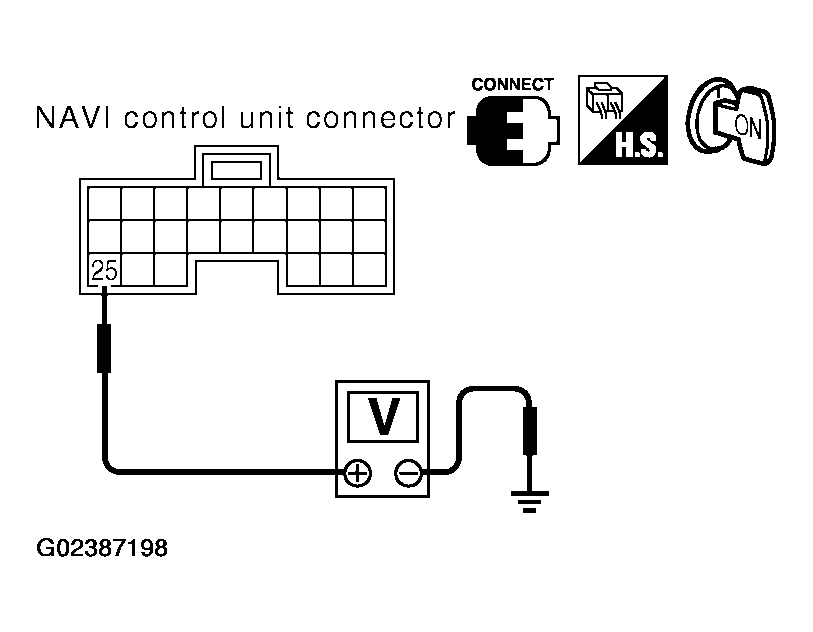

  Fig 2: Checking Voltage Between NAVI Control Unit Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace NAVI control unit. Refer to "REMOVAL AND INSTALLATION OF NAVI CONTROL UNIT ".
- NG: Check harness for open or short between NAVI control unit and IPDM E/R.
