CAN Communication Line Check

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MONITOR DESCRIPTION

Start display control unit self-diagnosis. Refer to "SELF-DIAGNOSIS MODE (DCU) ".
Select "CAN DIAG SUPPORT MONITOR". Refer to "CAN DIAG SUPPORT MONITOR ".

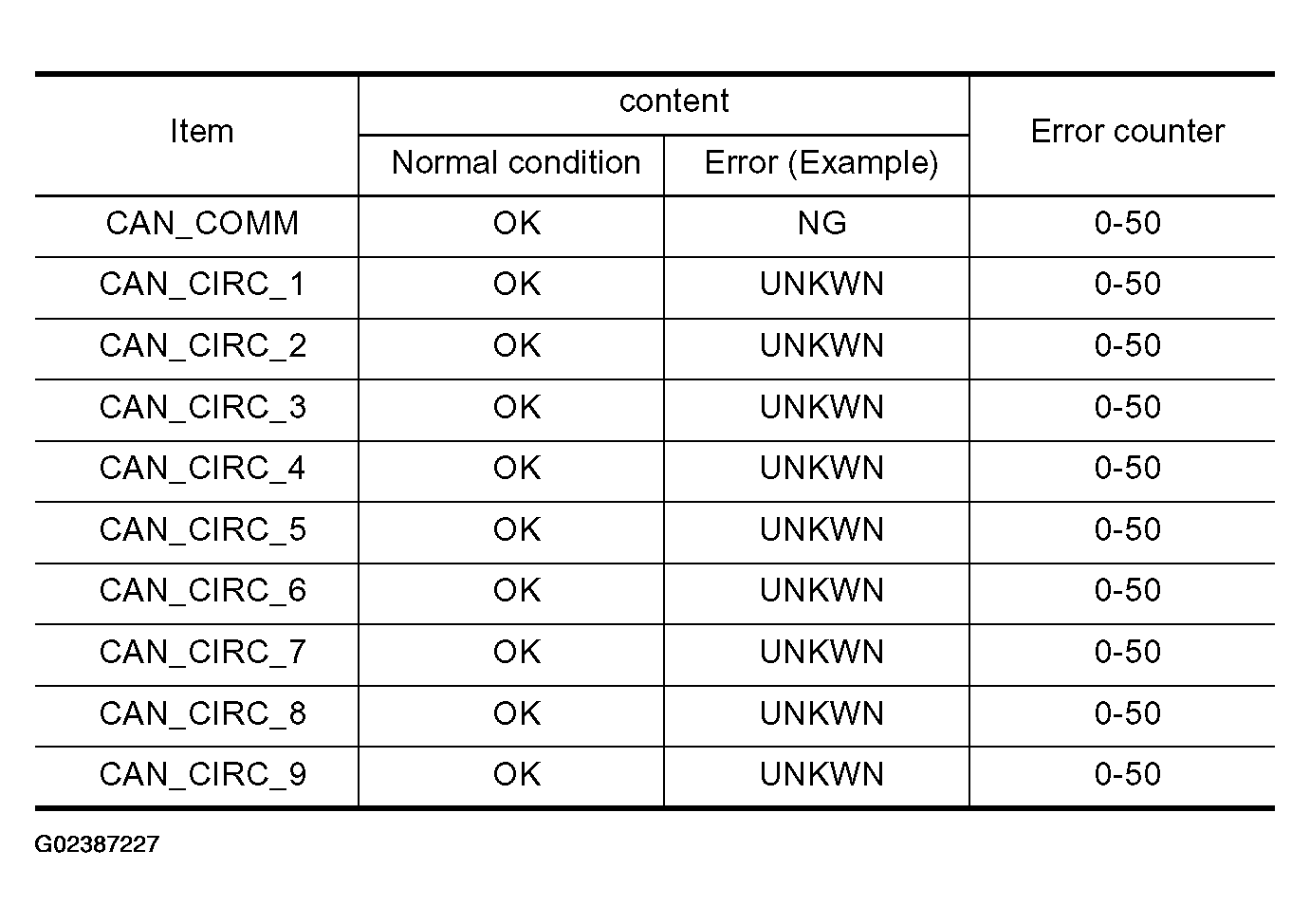

Fig 1: CAN Communication Line Check - Item, Content And Error Counter Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

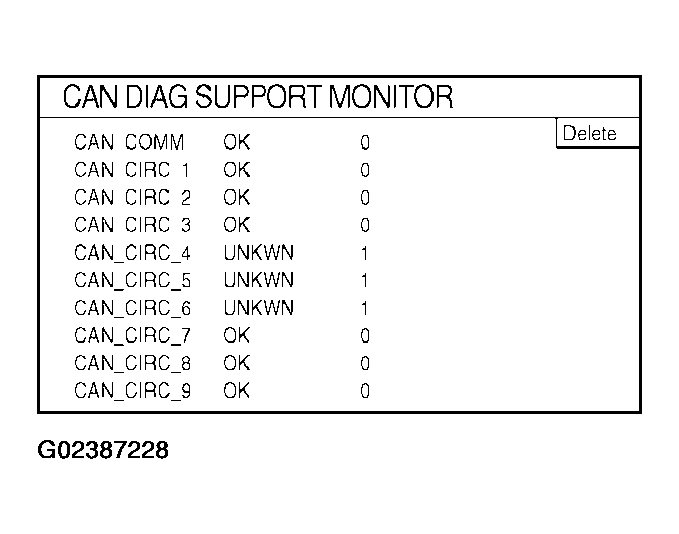

Fig 2: Identifying CAN Diag Support Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

Record each item display description (OK/NG/UKNWN) displayed on the following CAN DIAG SUPPORT MONITOR Check Sheet.

CAN DIAG SUPPORT MONITOR Check Sheet

CAN DIAG SUPPORT MONITOR - CHECK SHEET

Diagnosis item	Screen display		Diagnosis item	Screen display
CAN_COMM	OK	NG	CAN CIRC 5	OK	UNKWN
CAN_CIRC_1	OK	UNKWN	CAN_CIRC_6	OK	UNKWN
CAN_CIRC_2	OK	UNKWN	CAN_CIRC_7	OK	UNKWN
CAN_CIRC_3	OK	UNKWN	CAN_CIRC_8	OK	UNKWN
CAN_CIRC_4	OK	UNKWN	CAN_CIRC_9	OK	UNKWN

: After filling in CAN DIAG SUPPORT MONITOR Check Sheet, GO TO "CAN COMMUNICATION ".
