Removal and Installation of Video Monitor

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear roof console assembly. Refer to "HEADLINING ".
  2. Disconnect the video monitor connector.
  3. Remove the video housing screws.
  4. Remove the video monitor and housing.

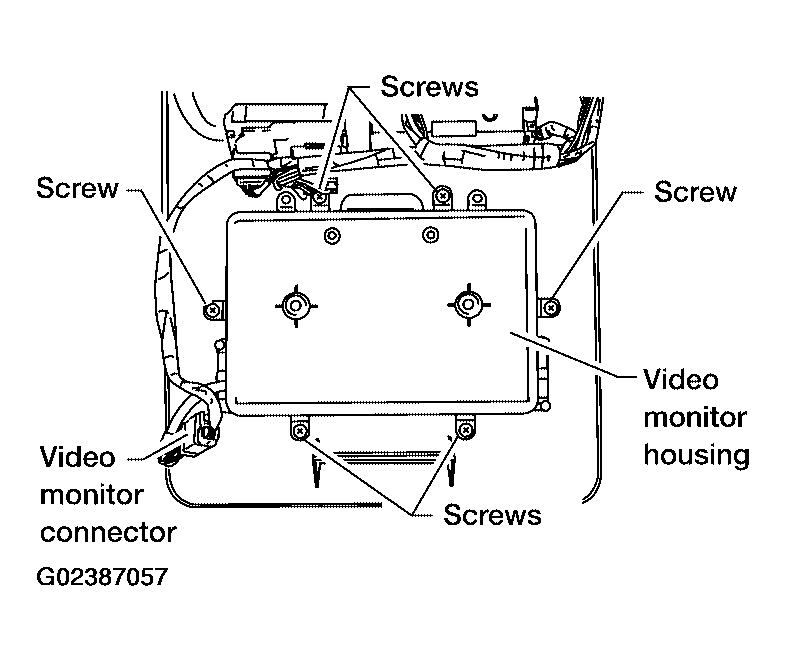

    Fig 1: Identifying Video Monitor Components
    G02387057Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the video monitor hinge screws and remove the video monitor.
  6. Installation is in reverse order of removal.

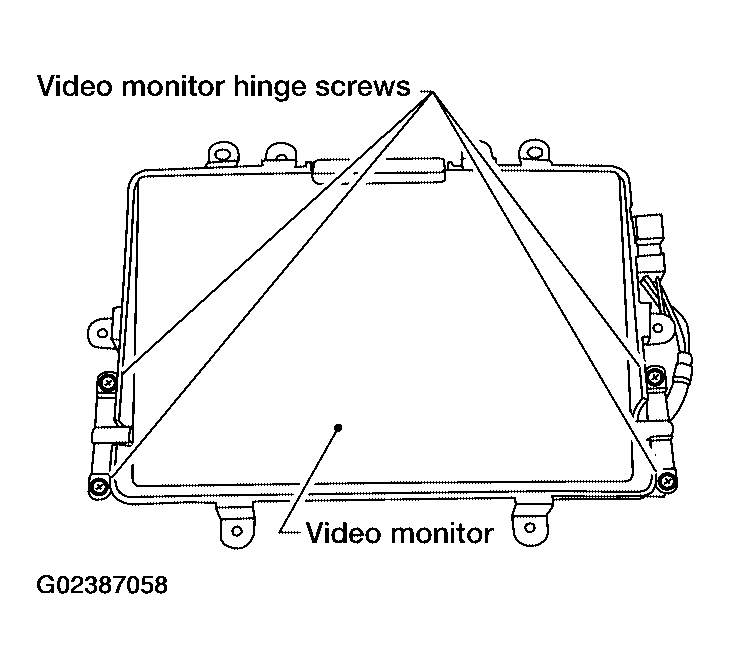

    Fig 2: Identifying Video Monitor Hinge Screws
    G02387058Courtesy of NISSAN MOTOR CO., U.S.A.
