Removal and Installation of DVD Player

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console compartment. Refer to "CENTER CONSOLE ".
  2. Remove the screws and DVD player.
  3. Installation is in reverse order of removal.

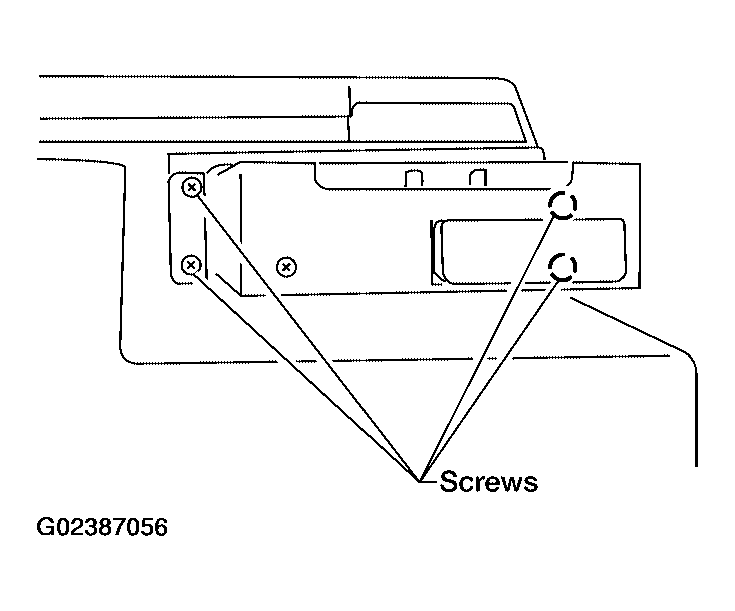

    Fig 1: Identifying DVD Player Screws
    G02387056Courtesy of NISSAN MOTOR CO., U.S.A.
