Malfunction With Radio And Cd

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, confirm that other AV switch functions (except audio functions) operate. If not, refer to "UNABLE TO OPERATE ALL OF AV SWITCHES (UNABLE TO START SELF-DIAGNOSIS) ".

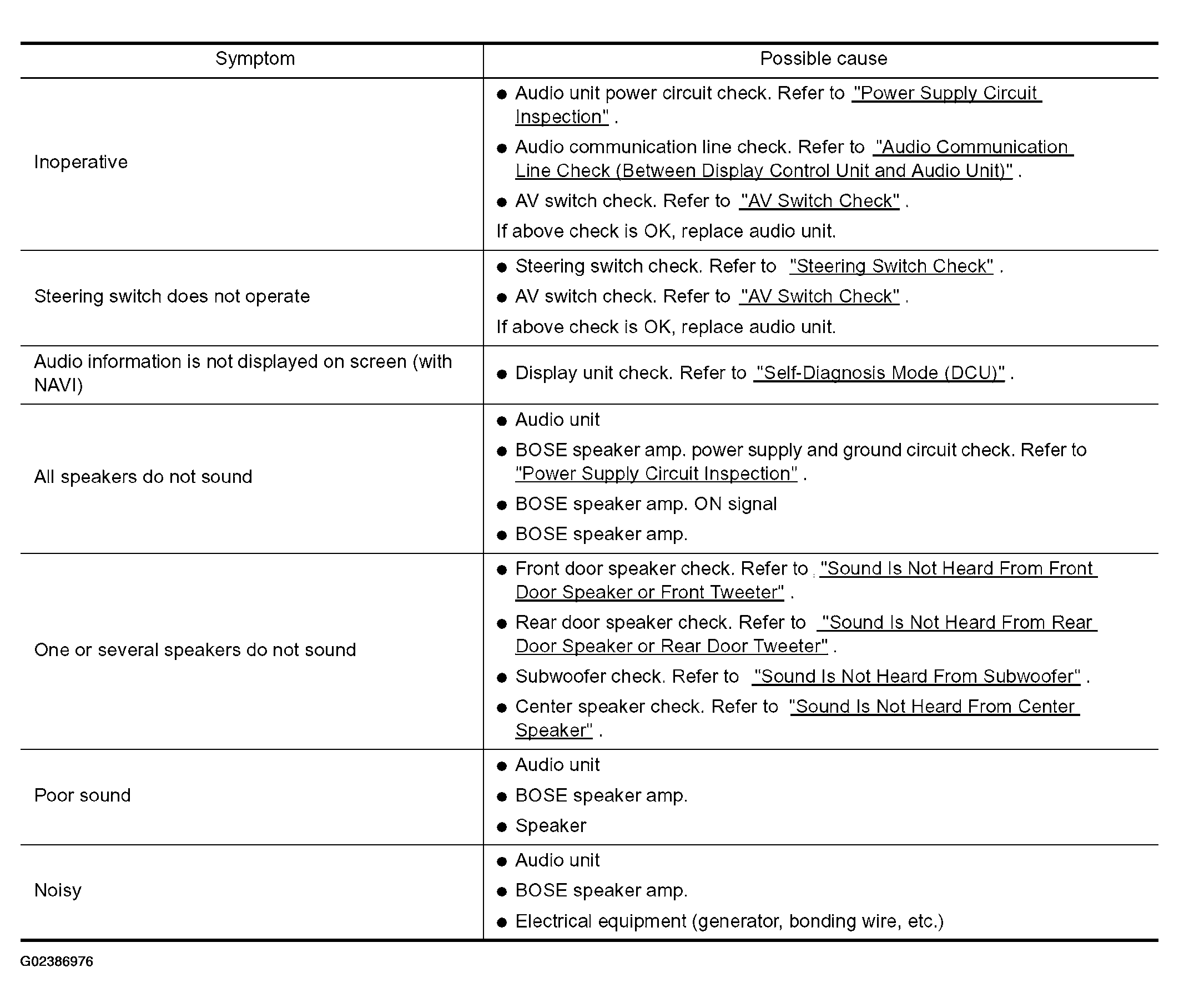

Fig 1: Malfunction With Radio And CD - Problem Symptom Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
