Removal and Installation of Rear Door Speaker

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door finisher. Refer to "DOOR FINISHER ".
  2. Remove the three rear speaker screws and remove speaker.
  3. Disconnect connector.
  4. Installation is in the reverse order of removal.
    • Rear speaker screws: 3.5 N.m (0.36 kg-m, 31 in-lb)

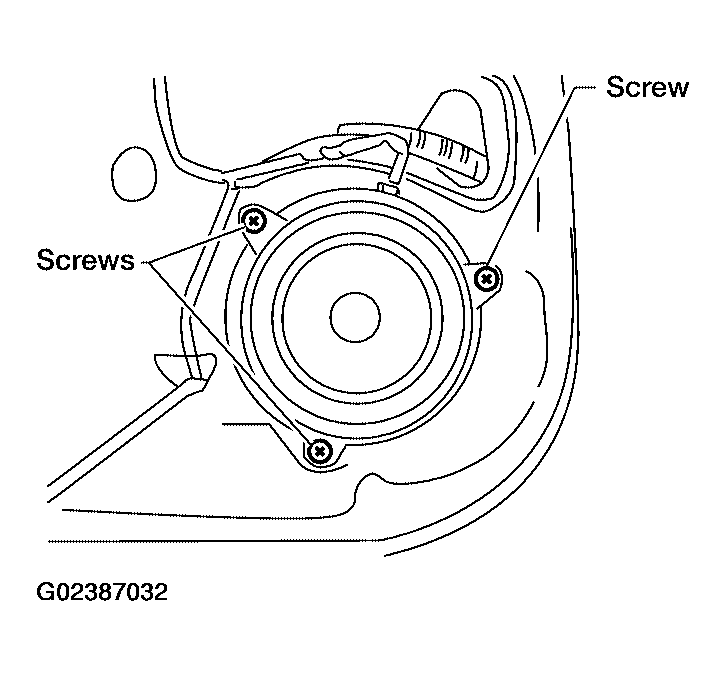

    Fig 1: Identifying Rear Door Speaker Screws
    G02387032Courtesy of NISSAN MOTOR CO., U.S.A.
