Removal and Installation of Front Tweeter

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tweeter grille. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove push pins.
  3. Disconnect connector and remove tweeter.
  4. Installation is in the reverse order of removal.

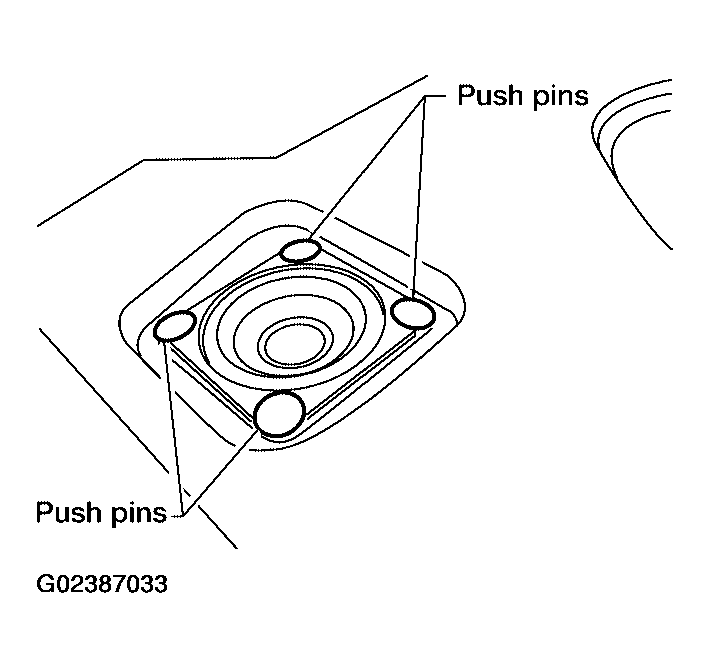

    Fig 1: Identifying Push Pins
    G02387033Courtesy of NISSAN MOTOR CO., U.S.A.
