Removal and Installation of Front Door Speaker

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door finisher. Refer to "DOOR FINISHER ".
  2. Remove the four front door speaker screws.
  3. Disconnect connector and remove the speaker.
  4. Installation is in the reverse order of removal.
    • Front door speaker screws: 3.5 N.m (0.36 kg-m, 31 in-lb)

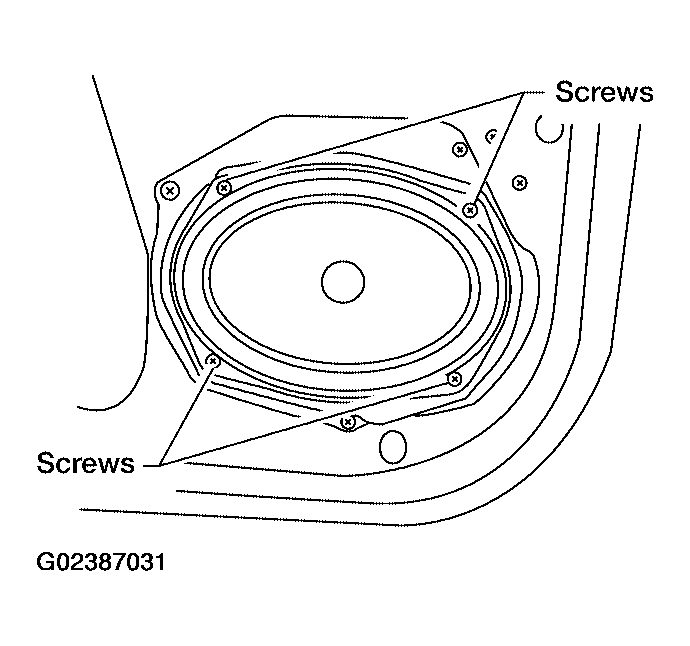

    Fig 1: Identifying Front Door Speaker Screws
    G02387031Courtesy of NISSAN MOTOR CO., U.S.A.
