Removal and Installation of Center Speaker

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid D. Refer to "CLUSTER LID D ".
  2. Remove the screws and remove the center speaker.
  3. Installation is in the reverse order of removal.

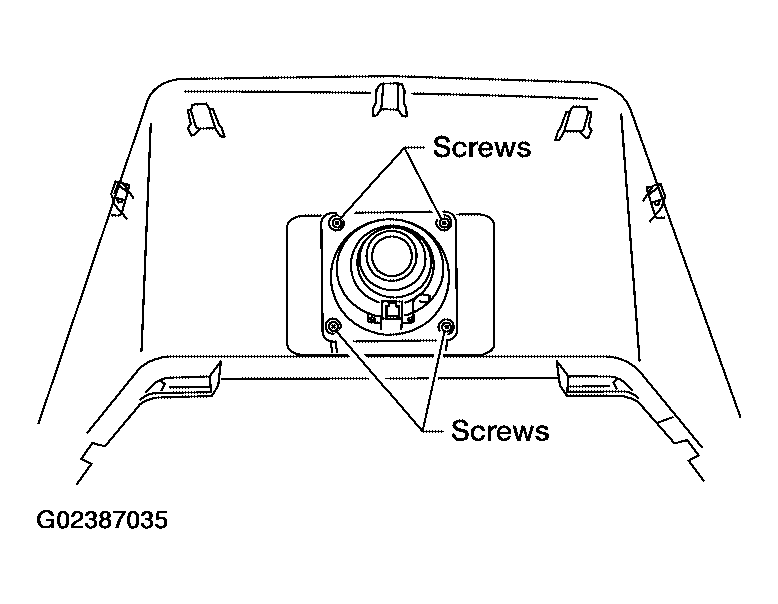

    Fig 1: Identifying Center Speaker Screws
    G02387035Courtesy of NISSAN MOTOR CO., U.S.A.
