Removal and Installation of BOSE Speaker Amp.

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
  2. Remove BOSE speaker amp. bracket screws and slide BOSE speaker amp. down.
  3. Disconnect connectors and remove BOSE speaker amp.
  4. Installation is in the reverse order of removal.
    • BOSE speaker amp. mounting screws: 3.5 N.m (0.36 kg-m, 31 in-lb)

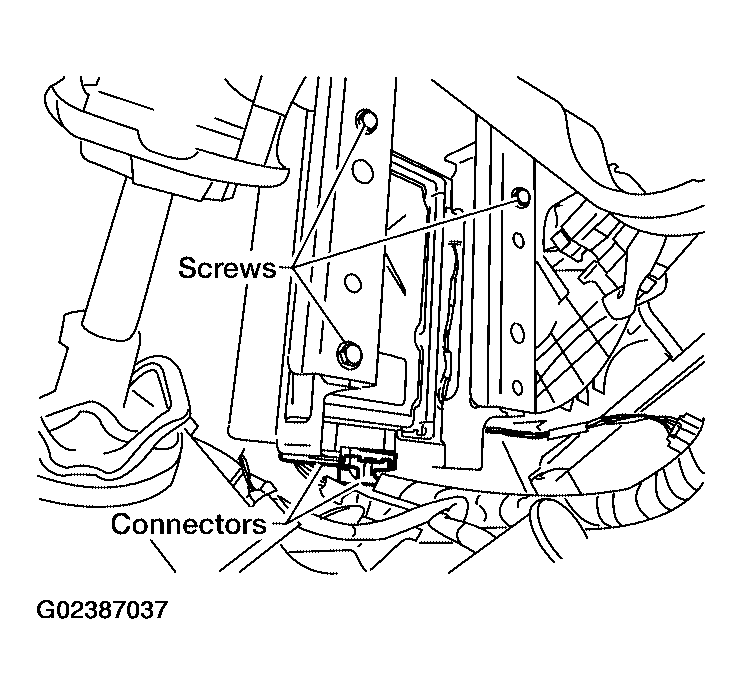

    Fig 1: Identifying BOSE Speaker Amp. Bracket Screws And Connectors
    G02387037Courtesy of NISSAN MOTOR CO., U.S.A.
