Wiring Diagram - W/ANT -

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

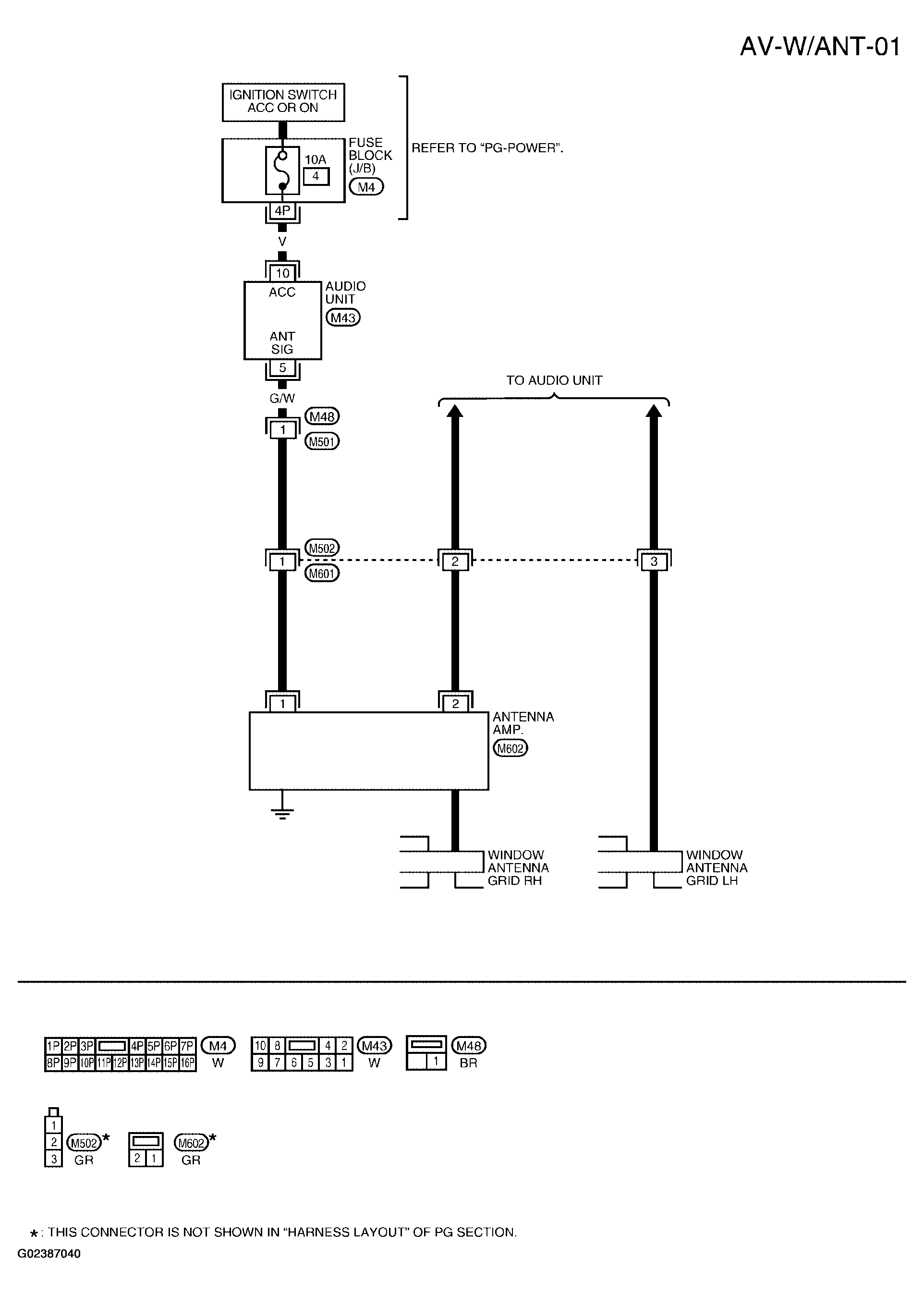

Fig 1: Wiring Diagram - W/ANT - AV-W/ANT-01

Courtesy of NISSAN MOTOR CO., U.S.A.
