Element Check

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

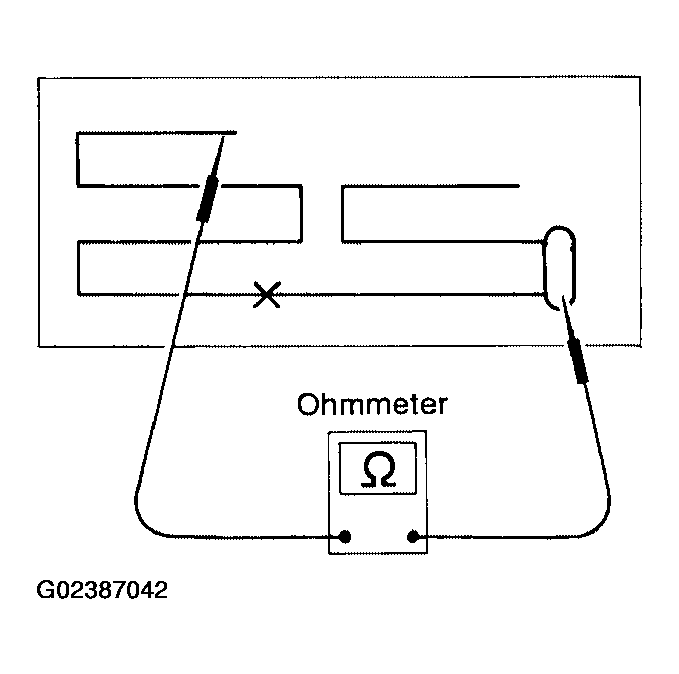

Attach probe circuit tester (ohm setting) to antenna terminal on each side.

Fig 1: Attaching Probe Circuit Tester (OHM Setting) To Antenna Terminal On Each Side
Courtesy of NISSAN MOTOR CO., U.S.A.

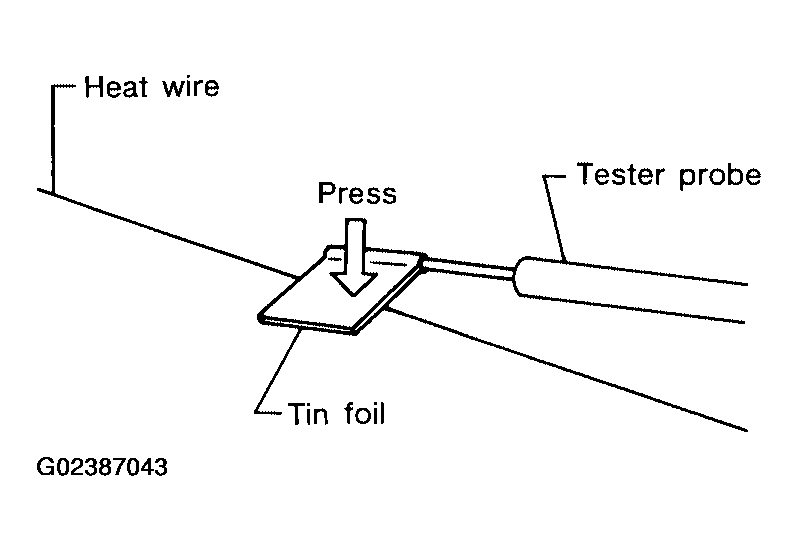

- When measuring continuity, wrap tin foil around the top of probe. Then, press the foil against the wire with your finger.
Fig 2: Wrapping Tin Foil Around The Top Of Probe And Pressing The Foil Against Wire
Courtesy of NISSAN MOTOR CO., U.S.A.

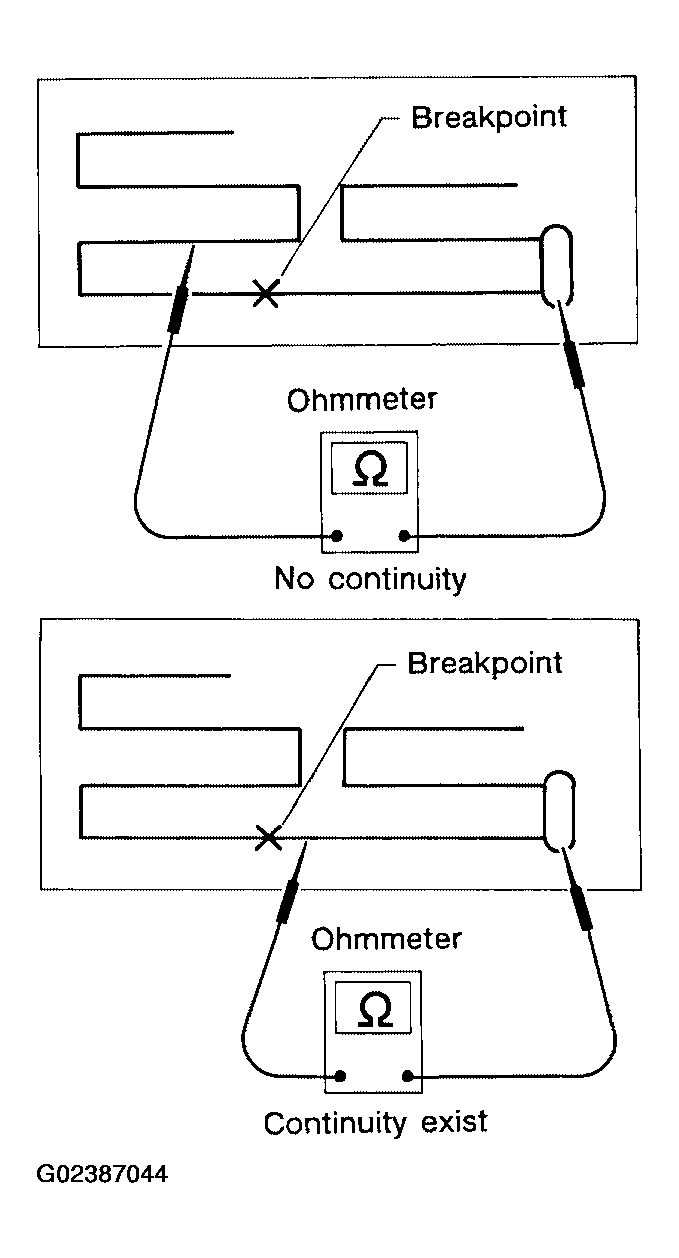

If an element is broken, no continuity will exist.

Fig 3: Identifying Break Point Of Element
Courtesy of NISSAN MOTOR CO., U.S.A.

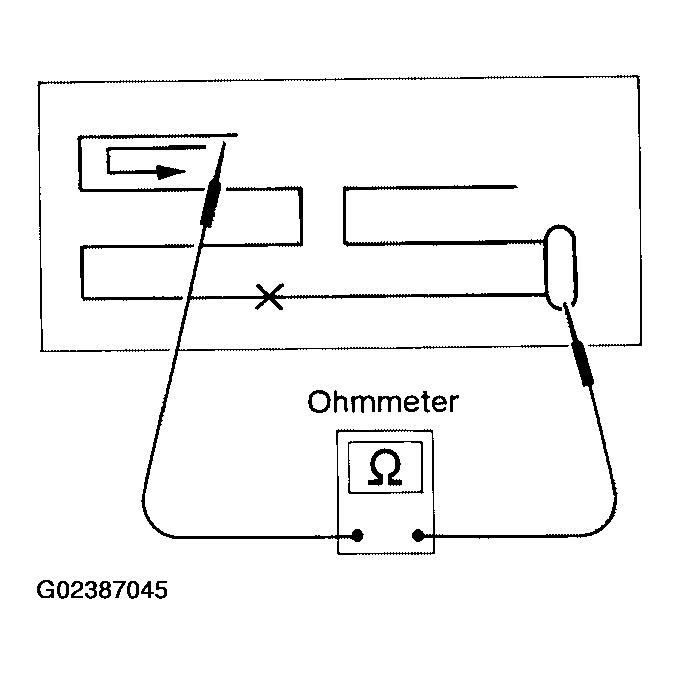

To locate a break, move probe along element. Tester indication will change abruptly when probe passes the broken point.

Fig 4: Moving Probe Along Element To Locate Broken Point
Courtesy of NISSAN MOTOR CO., U.S.A.
