Wiper Does Not Wipe When Rear Washer Operates
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK COMBINATION SWITCH INPUT SIGNAL

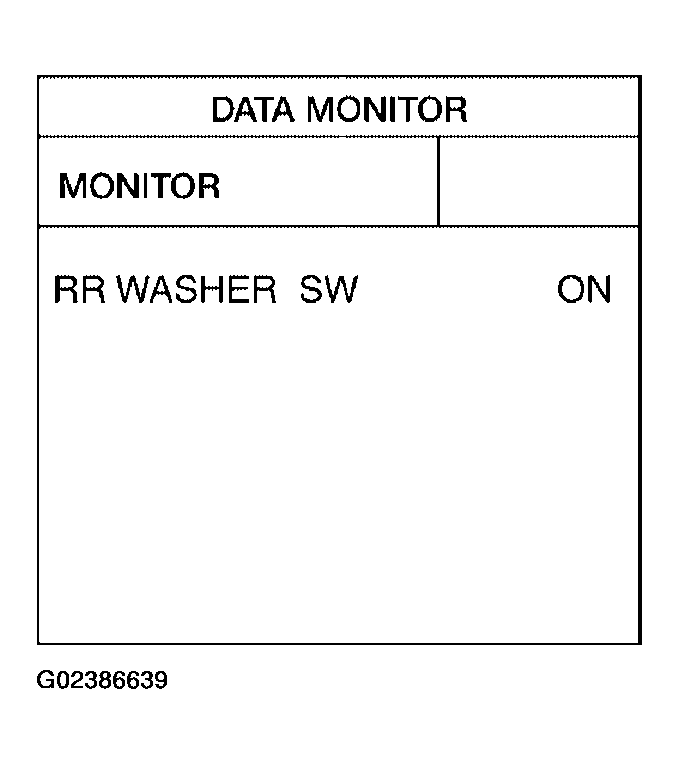

Select "BCM" on CONSULT-II. With "WIPER" data monitor, make sure "RR WASHER SW" turns ON-OFF according to operation of rear washer switch.
When rear wiper switch is in WASHER position: RR WASHER SW ON
OK or NG
- OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
- NG: Check the wiper switch. Refer to "COMBINATION SWITCH READING FUNCTION ".
