Removal and Installation of Rear Wiper Motor: Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not drop the wiper motor or cause it to contact other parts.

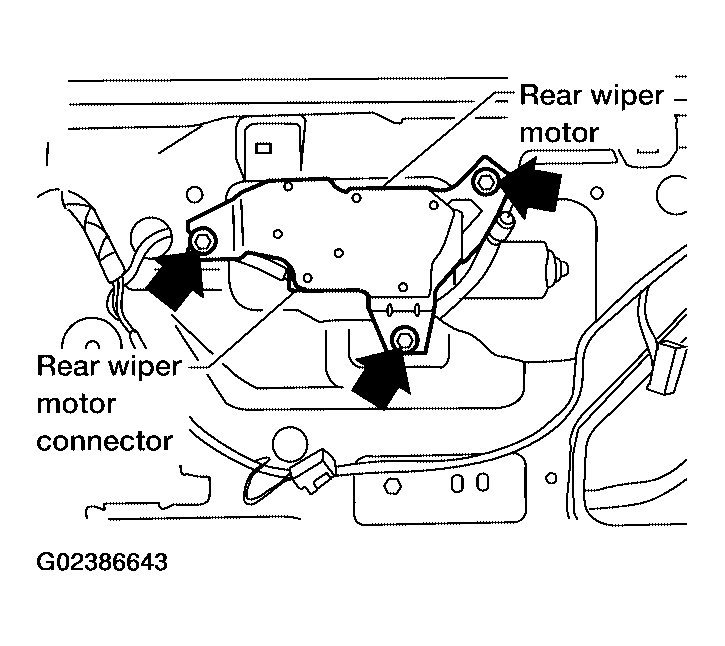

Fig 1: Identifying Rear Wiper Motor, Rear Wiper Motor Connector And Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

Clean up the pivot area as illustrated. This will reduce possibility of wiper arm looseness.
Install rear wiper motor to the vehicle.
Connect rear wiper motor connector.
Install glass hatch latch assembly and adjust as necessary. Refer to "BACK DOOR LOCK ".
Install back door finisher lower. Refer to "BACK DOOR TRIM ".
Attach pivot cap.
Attach wiper arm. Refer to "REMOVAL AND INSTALLATION OF REAR WIPER ARM, ADJUSTMENT OF REAR WIPER ARM STOP LOCATION ".

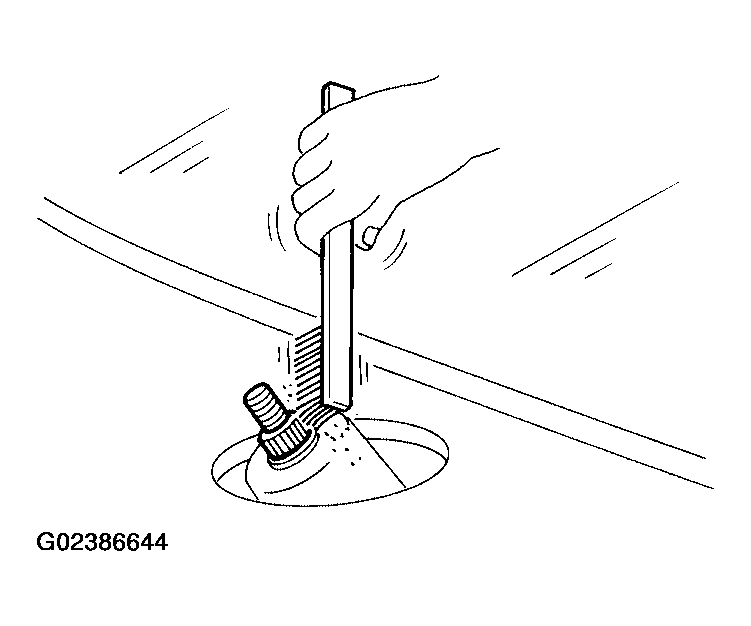

Fig 2: Cleaning Pivot Area
Courtesy of NISSAN MOTOR CO., U.S.A.
