Removal and Installation of Rear Wiper Arm, Adjustment of Rear Wiper Arm Stop Location: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the rear wiper motor and stop it at the auto stop position.
  2. Remove rear wiper arm cover by gripping bottom edge and rotating cover up. Remove mounting nut, and remove the wiper arm.

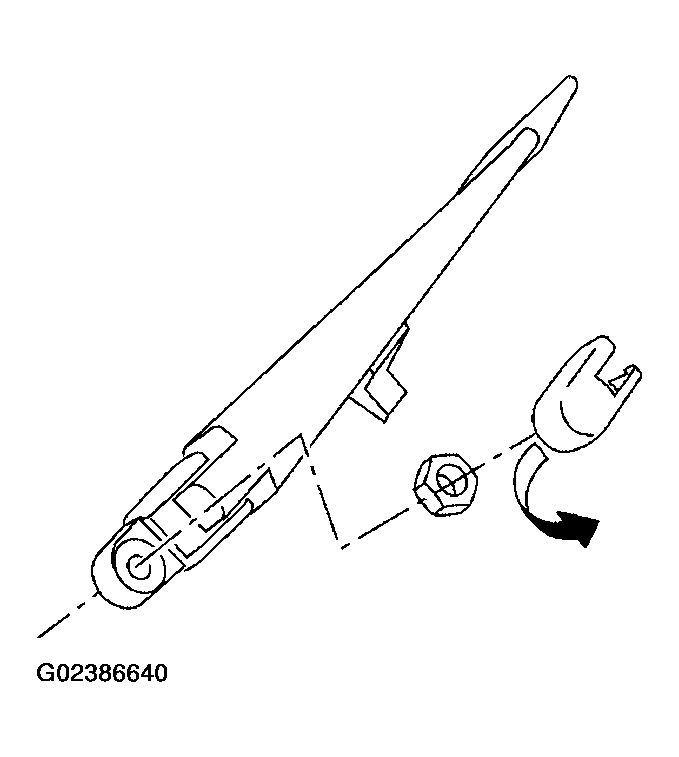

    Fig 1: Removing Mounting Nut And Wiper Arm
    G02386640Courtesy of NISSAN MOTOR CO., U.S.A.
