Removal and Installation of Rear Wiper Arm, Adjustment of Rear Wiper Arm Stop Location: Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Prior to wiper arm installation, turn on wiper switch to operate wiper motor and then turn it "OFF" (Auto Stop).
Clean up the pivot area as illustrated. This will reduce the possibility of wiper arm looseness.
Install rear wiper arm so that the arm rests in the stopper and tighten wiper arm nut to specification.

Rear wiper arm nut: 10.2 N.m (1.0 kg-m, 8 ft-lb)

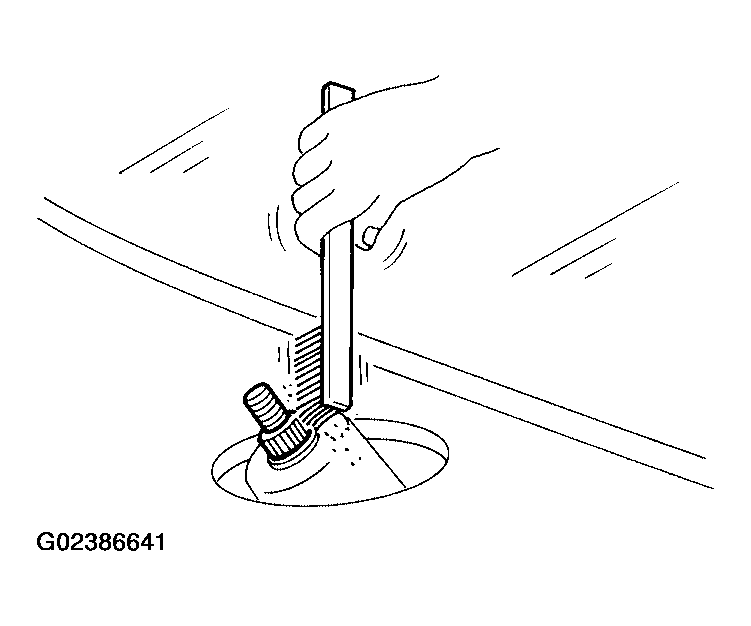

Fig 1: Cleaning Pivot Area
Courtesy of NISSAN MOTOR CO., U.S.A.
