Removal and Installation of Rear Washer Nozzle: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear spoiler. Refer to "REAR SPOILER ".
  2. Remove rear washer tube from nozzle.
  3. Release retaining clips, and remove washer nozzle.

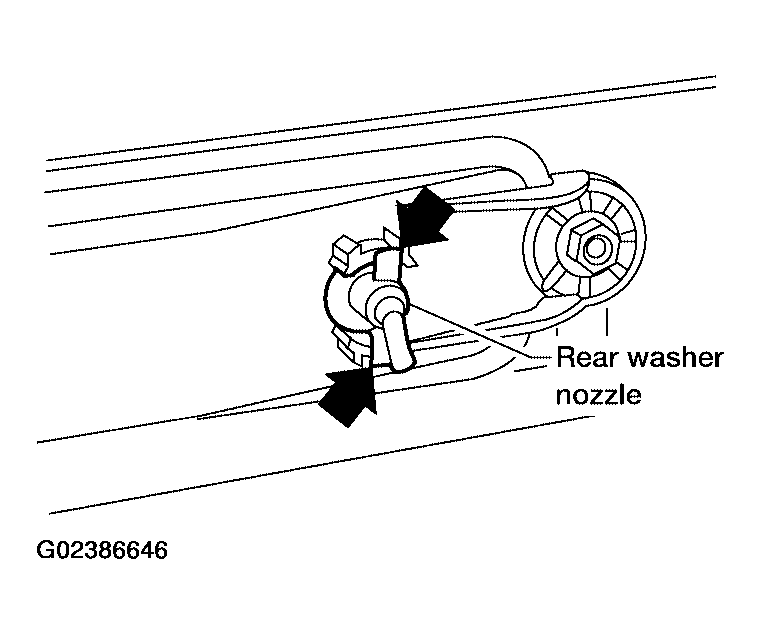

    Fig 1: Releasing Retaining Clips And Removing Washer Nozzle
    G02386646Courtesy of NISSAN MOTOR CO., U.S.A.
