Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille. Refer to "FRONT GRILLE ".
  2. Disconnect horn connector.
  3. Remove horn bolt and remove horn from vehicle.

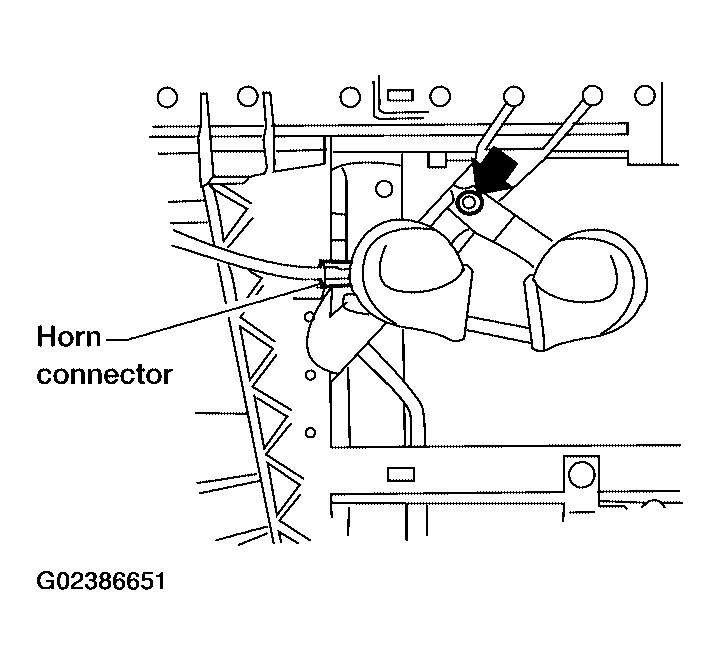

    Fig 1: Identifying Horn Connector And Horn Bolt
    G02386651Courtesy of NISSAN MOTOR CO., U.S.A.
