Inspection Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

COMBINATION SWITCH TO BCM INSPECTION
Select "BCM" on CONSULT-II. With "WIPER" data monitor, check that "FR WIPER INT" turns ON-OFF according to operation of wiper switch.
- OK or NG
- OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
- NG: Replace wiper switch. Refer to "REMOVAL AND INSTALLATION OF WIPER AND WASHER SWITCH ".

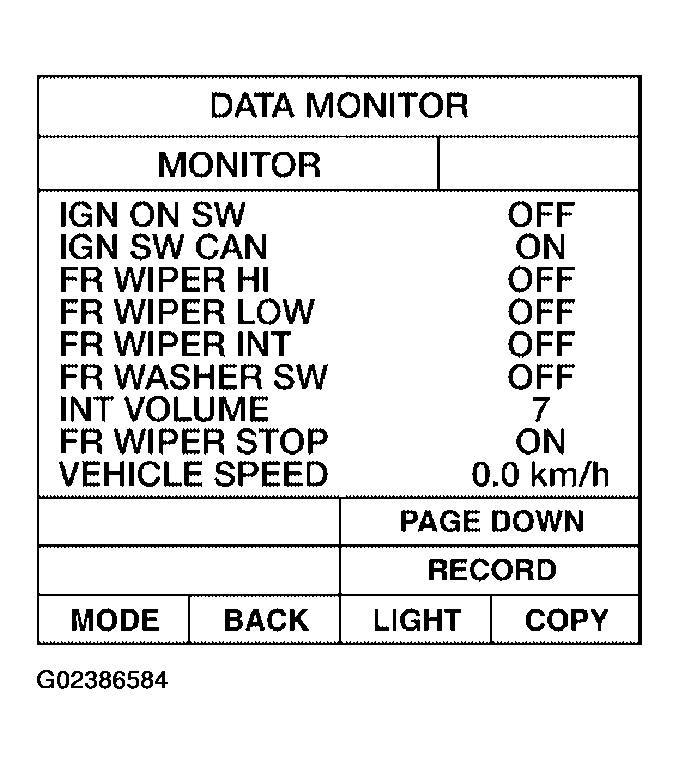

Fig 1: Identifying "FR WIPER INT" On Data Monitor Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
