Inspection Procedure

With CONSULT-II

1. Select "IPDM E/R" with CONSULT-II, and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.
2. Select "FRONT WIPER" on "SELECT TEST ITEM" screen.

Without CONSULT-II

1. Turn on front wipers using auto active test. Refer to "AUTO ACTIVE TEST ".
2. Confirm front wiper operation.

OK or NG

• OK: GO TO 4
• NG: GO TO 2.

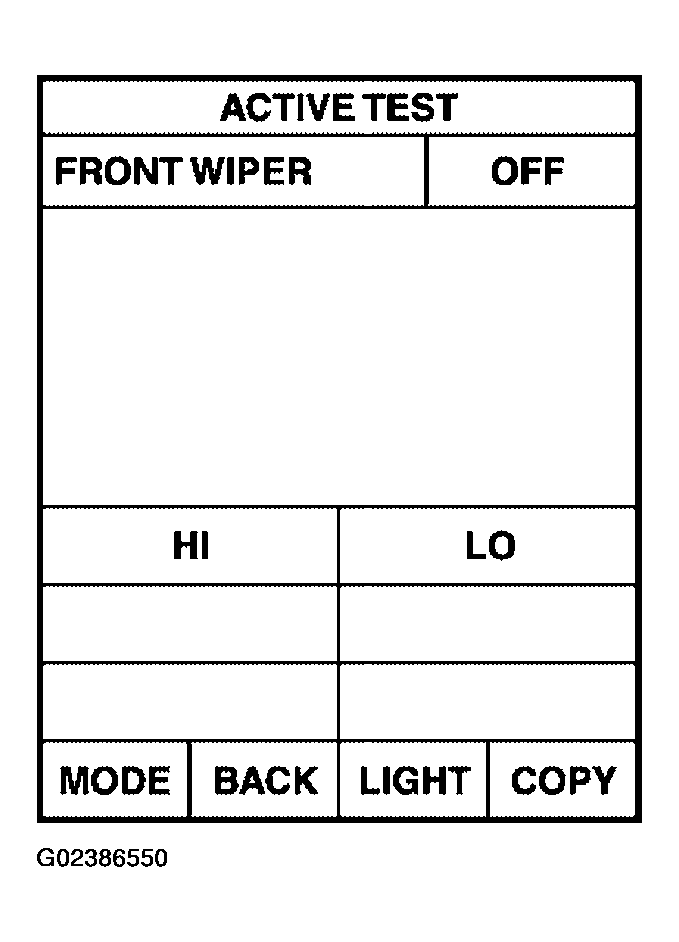

Fig 1: Identifying "FRONT WIPER"

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connectors and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector terminals and front wiper motor harness connector terminals.

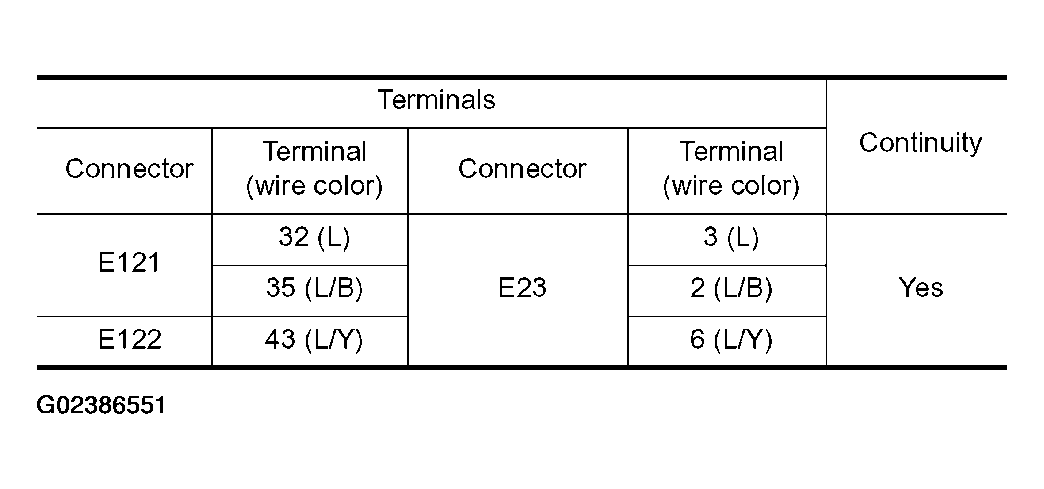

   Fig 2: IPDM E/R Harness Connector Terminals And Front Wiper Motor Harness Connector Terminals Continuity Specification Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

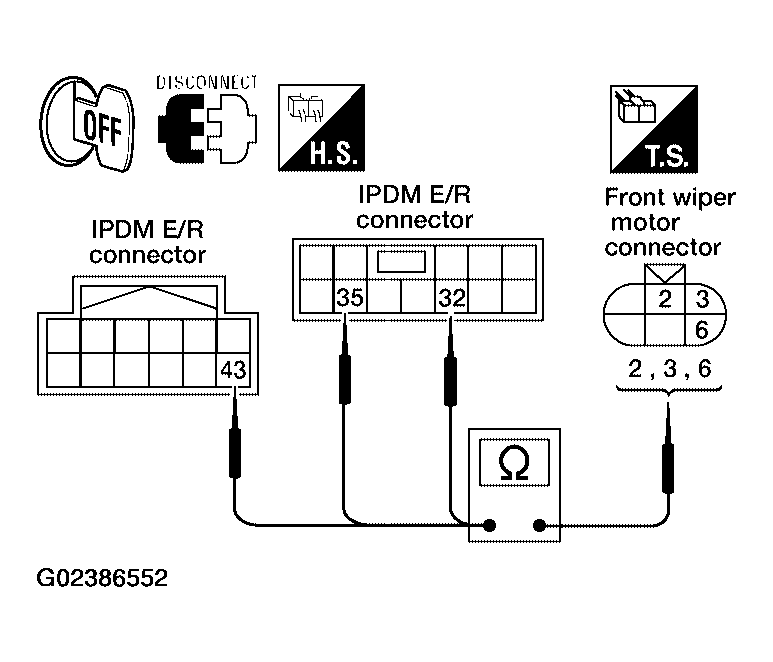

   Fig 3: Checking Continuity Between IPDM E/R Harness Connector Terminals And Front Wiper Motor Harness Connector Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between IPDM E/R harness connector terminals and ground.

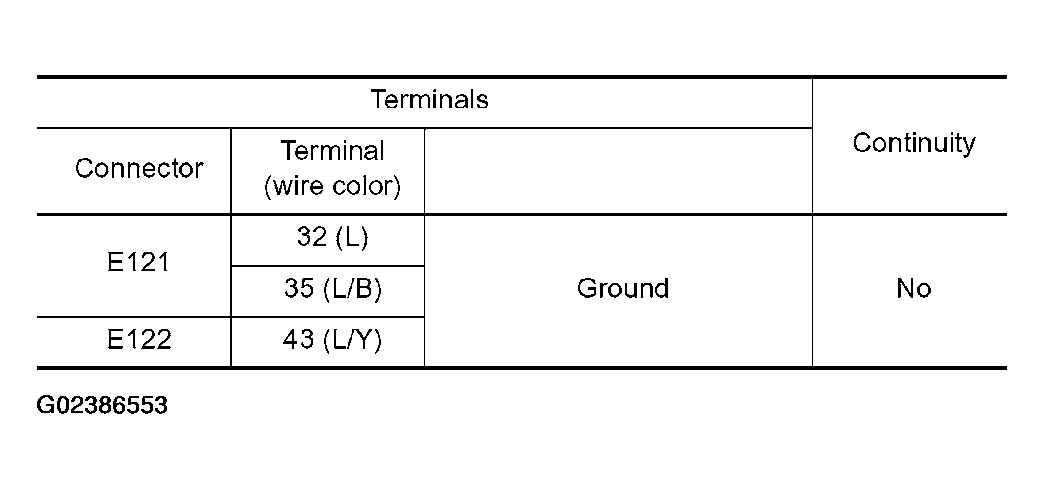

   Fig 4: IPDM E/R Harness Connector Terminals And Ground Continuity Specification Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

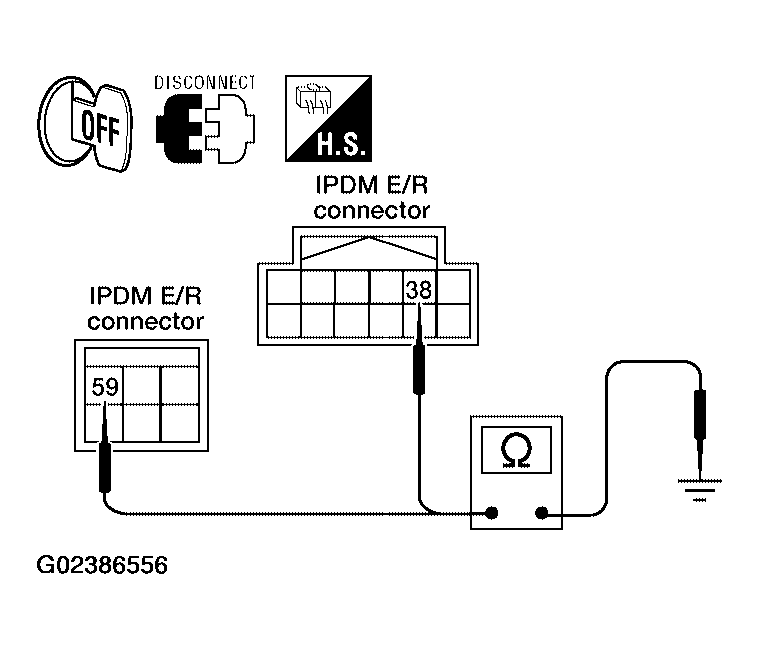

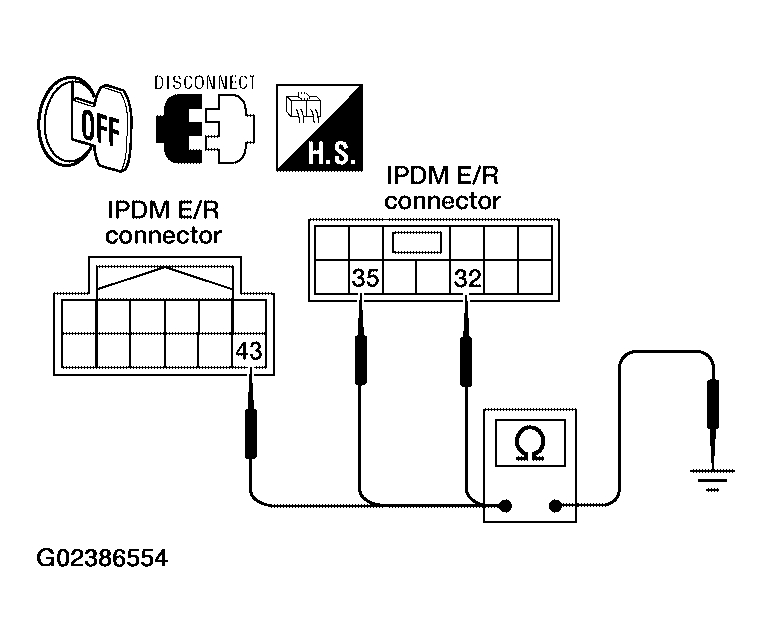

   Fig 5: Checking Continuity Between IPDM E/R Harness Connector Terminals And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Check continuity between IPDM E/R harness connector terminal and ground.

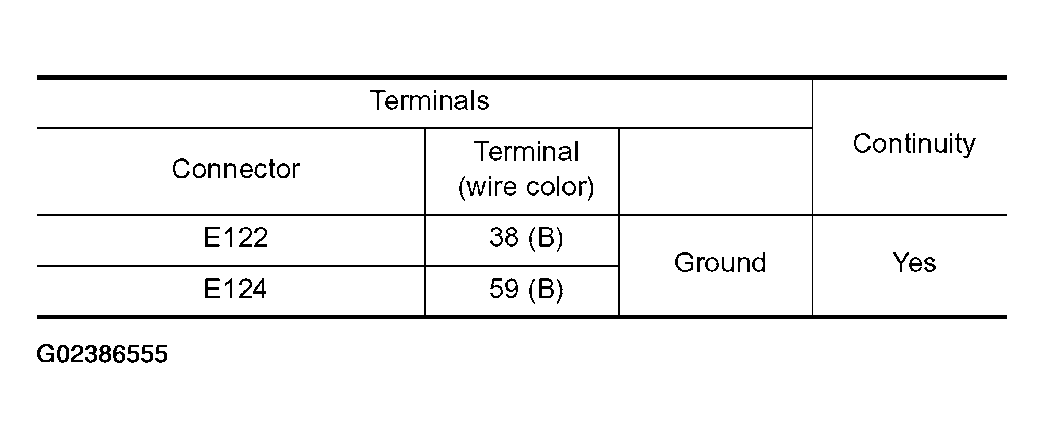

   Fig 6: IPDM E/R Harness Connector Terminal And Ground Continuity Specification Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 7: Checking Continuity Between IPDM E/R Harness Connector Terminal And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Check continuity between front wiper motor harness connector terminal 1 and ground.

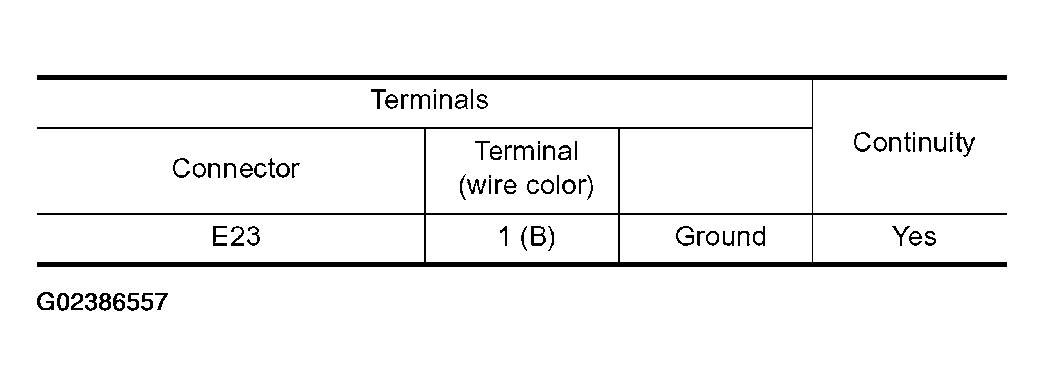

   Fig 8: Front Wiper Motor Harness Connector Terminal 1 And Ground Continuity Specification Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

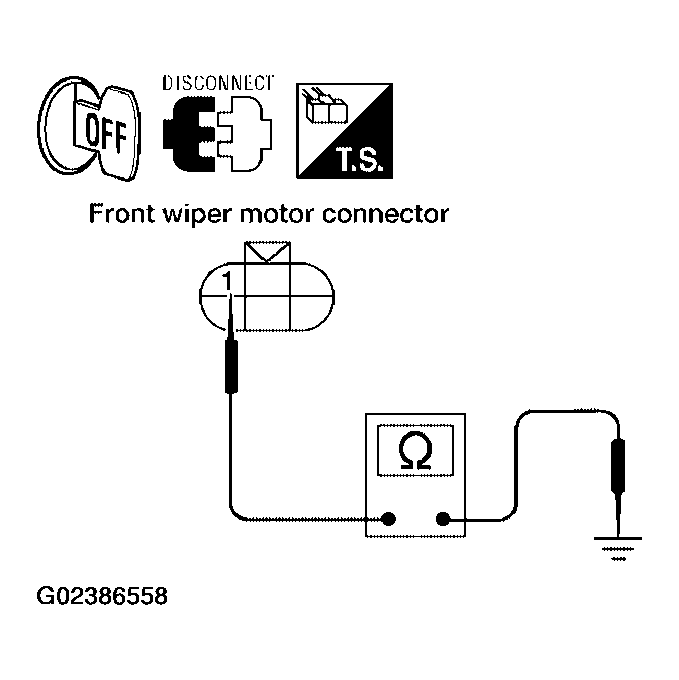

   Fig 9: Checking Continuity Between Front Wiper Motor Harness Connector Terminal 1 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Connect connectors. GO TO 3.
• NG: Check for open circuit in harness between front wiper motor and ground.

With CONSULT-II

1. Select "HI" on "ACTIVE TEST" screen.
2. When front wiper relay, and front wiper high relay are operating, check voltage between IPDM E/R terminals and ground.

Without CONSULT-II

1. Turn on front wipers using the auto active test. Refer to "AUTO ACTIVE TEST ".
2. When front wiper relay, and front wiper high relay are operating, check voltage between IPDM E/R terminals and ground.

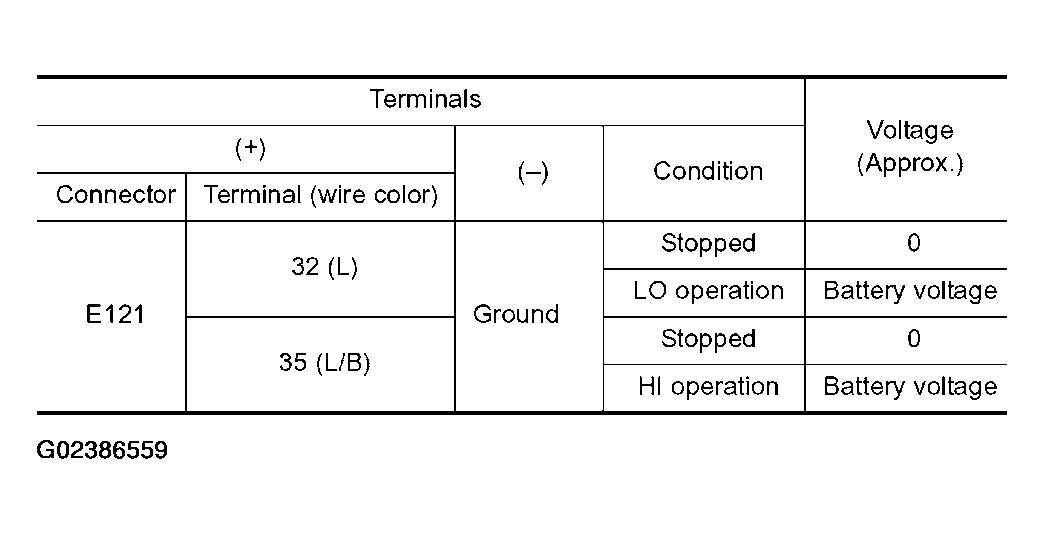

   Fig 10: IPDM E/R Terminals And Ground Voltage Specification Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

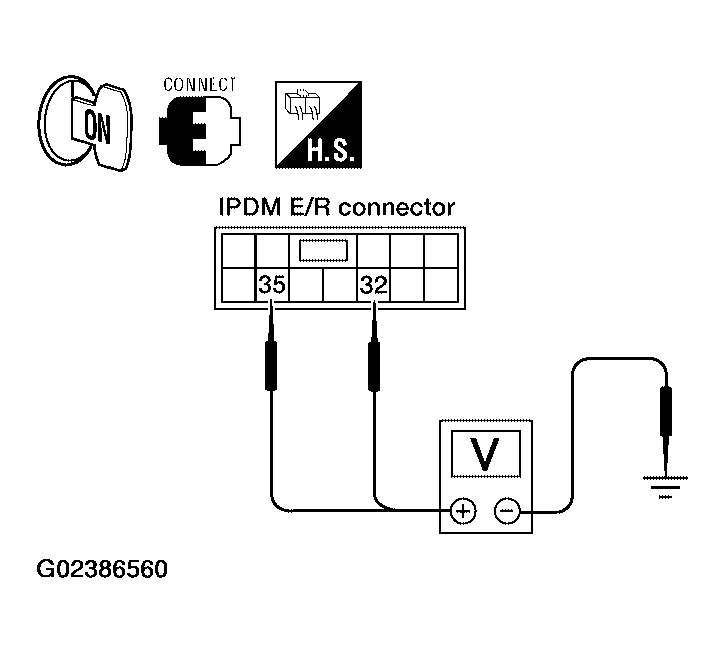

   Fig 11: Checking Voltage Between IPDM E/R Terminals And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Replace the front wiper motor. Refer to "REMOVAL AND INSTALLATION OF WIPER MOTOR AND LINKAGE  ".
• NG: Replace IPDM E/R. Refer to "REMOVAL AND INSTALLATION OF IPDM E/R ".

Select "BCM" on CONSULT-II. With "WIPER" data monitor, check that "FR WIPER INT", "FR WIPER LOW" and "FR WIPER HI" turn ON-OFF according to operation of wiper switch.

OK or NG

• OK: GO TO 5.
• NG: Check wiper switch. Refer to "COMBINATION SWITCH READING FUNCTION  ".

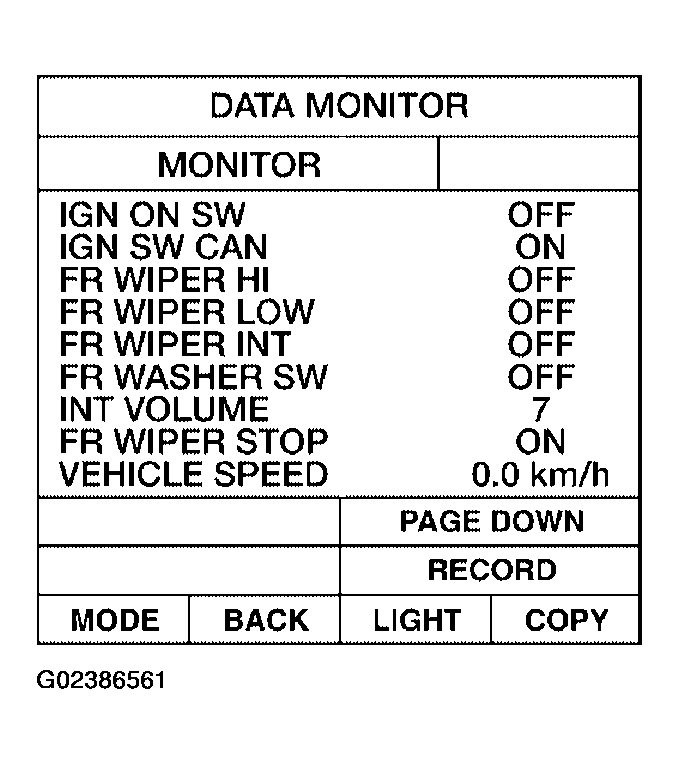

Fig 12: Identifying "FR WIPER INT", "FR WIPER LOW" And "FR WIPER HI"

Courtesy of NISSAN MOTOR CO., U.S.A.

Select "BCM" on CONSULT-II. Carry out self-diagnosis of BCM.

Displayed self-diagnosis results

NO DTC: Replace the BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".

CAN COMM CIRCUIT: Check CAN communication line of BCM. GO TO "CAN COMMUNICATION INSPECTION USING CONSULT-II (SELF-DIAGNOSIS) ".

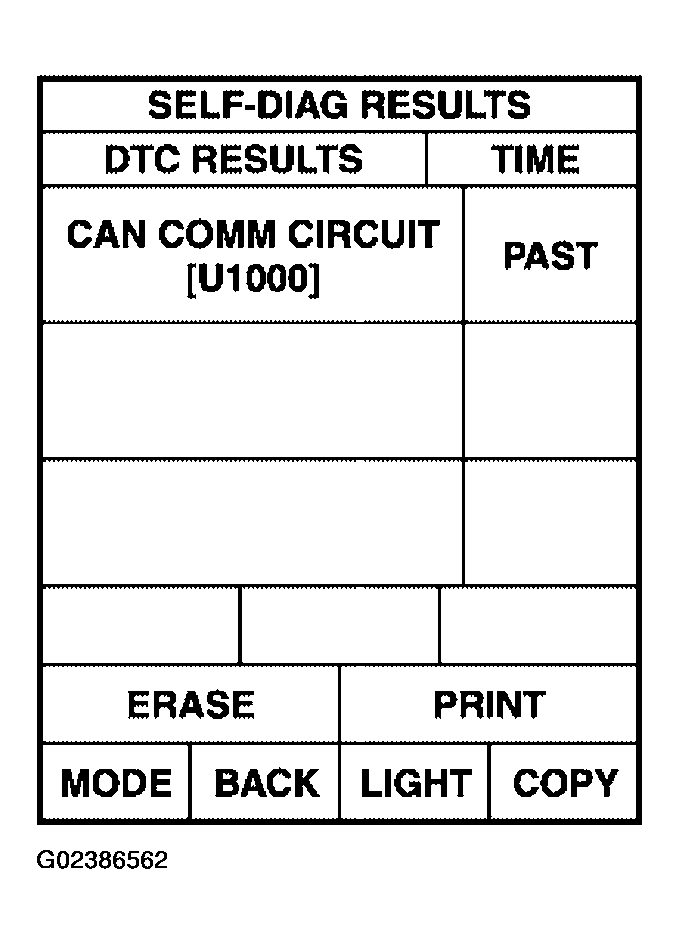

Fig 13: Identifying Self-Diagnosis Results Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
