Front Wiper And Washer System: Schematic

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

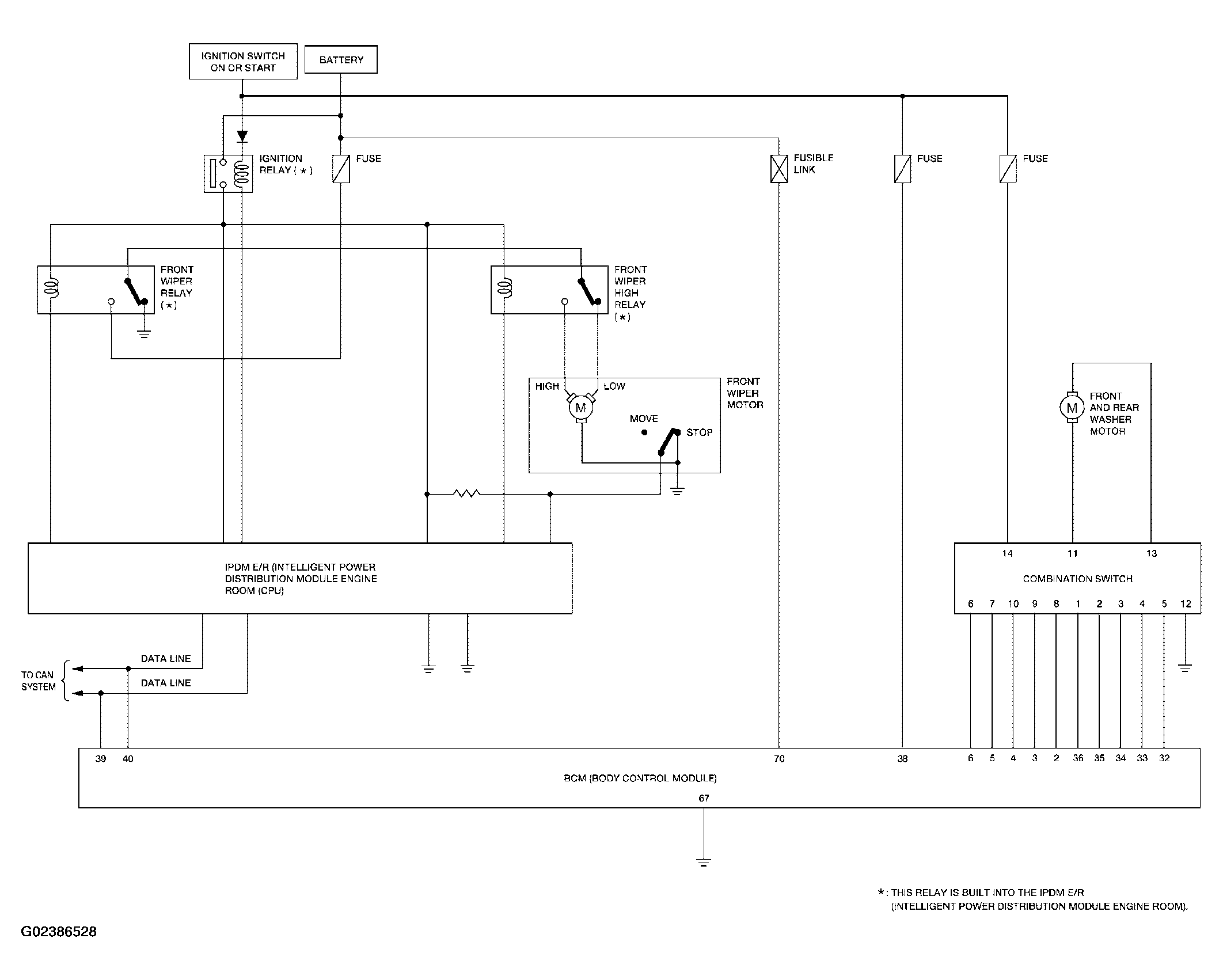

Fig 1: Front Wiper And Washer System - Schematic Diagram
G02386528Courtesy of NISSAN MOTOR CO., U.S.A.
