Removal and Installation of Wiper Motor and Linkage: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the wiper motor, and stop it at the auto stop position.
  2. Remove wiper arms from the vehicle. Refer to "REMOVAL AND INSTALLATION OF FRONT WIPER ARMS, ADJUSTMENT OF WIPER ARMS STOP LOCATION  ".
  3. Remove the cowl top extension. Refer to "COWL TOP ".
  4. Disconnect wiper motor connector.
  5. Remove cowl top extension bracket.
  6. Remove wiper frame assembly mounting bolts, and remove wiper frame assembly.
  7. Remove wiper motor from wiper frame assembly.

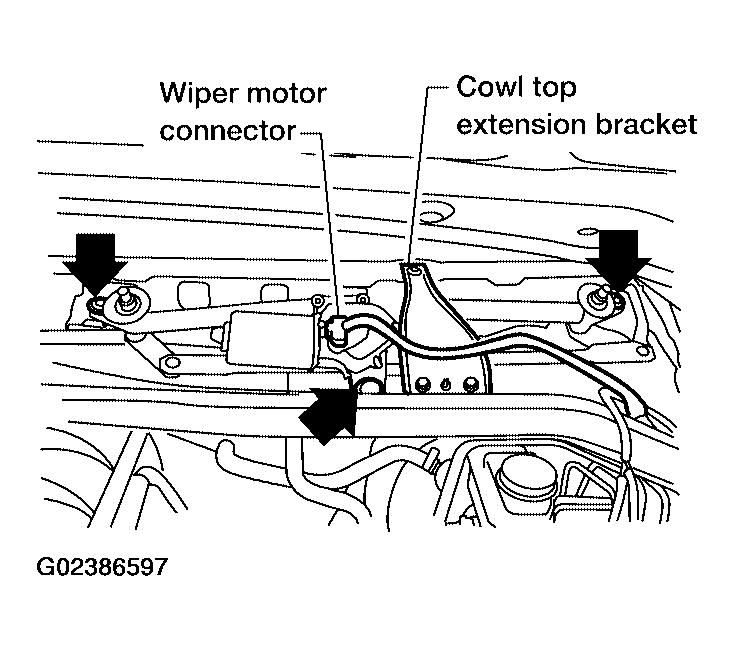

    Fig 1: Identifying Wiper Motor Connector, Cowl Top Extension Bracket And Mounting Bolts
    G02386597Courtesy of NISSAN MOTOR CO., U.S.A.
