Removal and Installation of Wiper Motor and Linkage: Notes
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

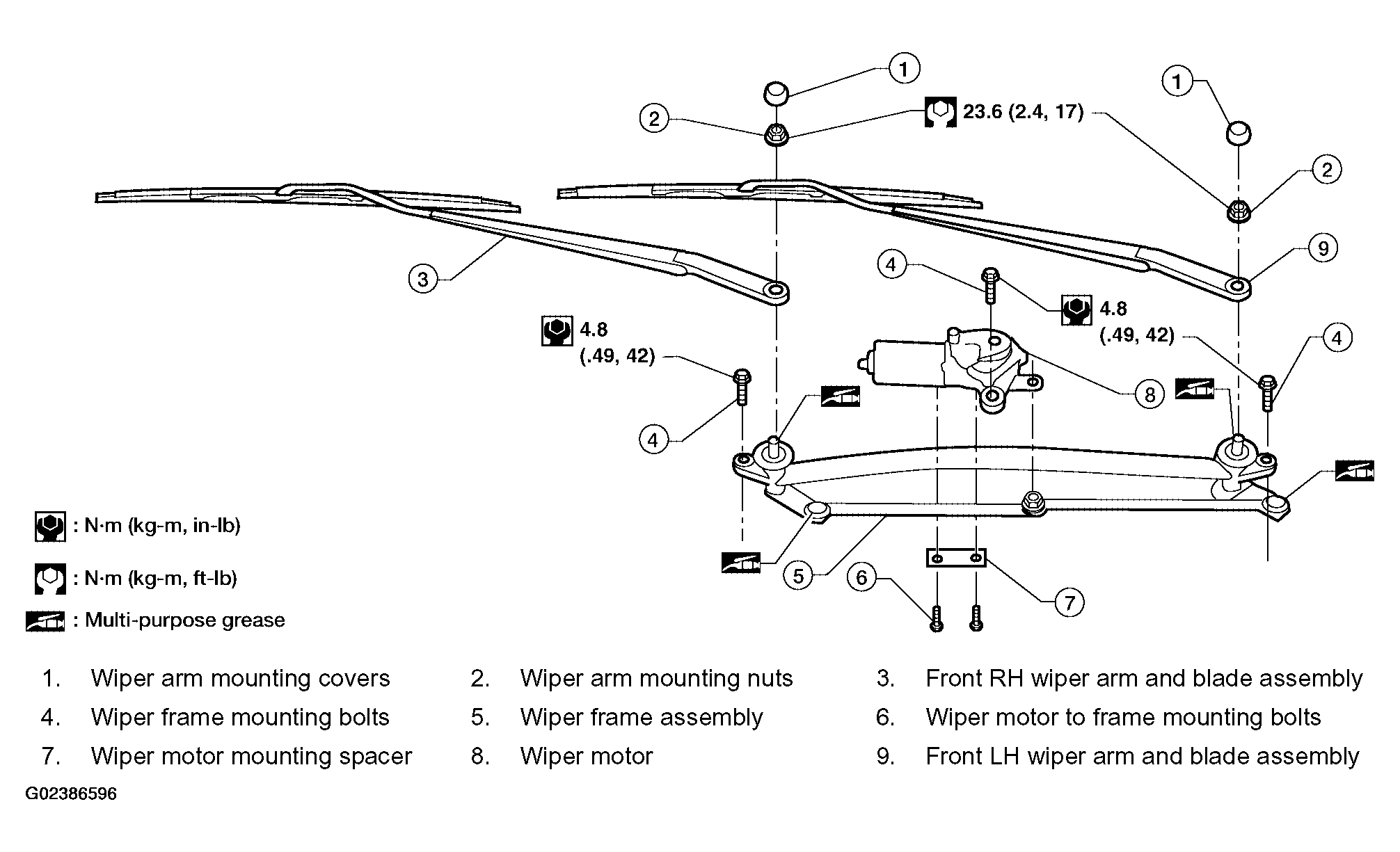

Fig 1: Exploded View Of Wiper Motor And Linkage With Torque Specifications
