Removal and Installation of Washer Tank: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove side washer tank screw.

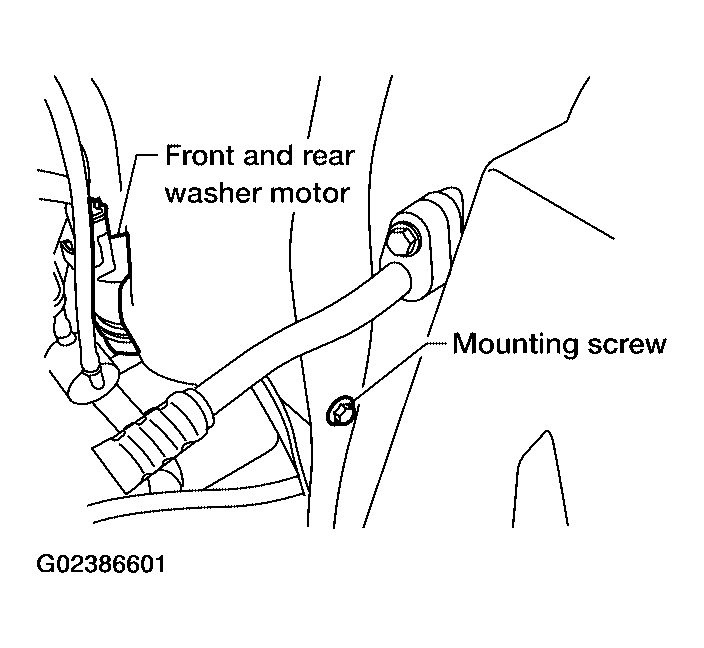

    Fig 1: Identifying Side Washer Tank Screw
    G02386601Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove front and rear washer motor connector, washer fluid level sensor connector, and front and rear washer hoses.

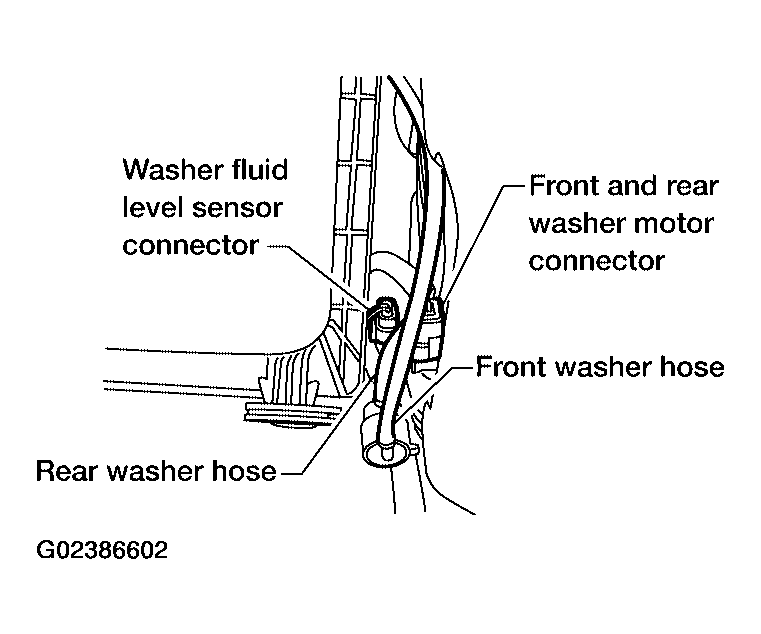

    Fig 2: Identifying Front And Rear Washer Motor Connector, Washer Fluid Level Sensor Connector And Front And Rear Washer Hose
    G02386602Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove front washer tank screw, then remove washer tank.

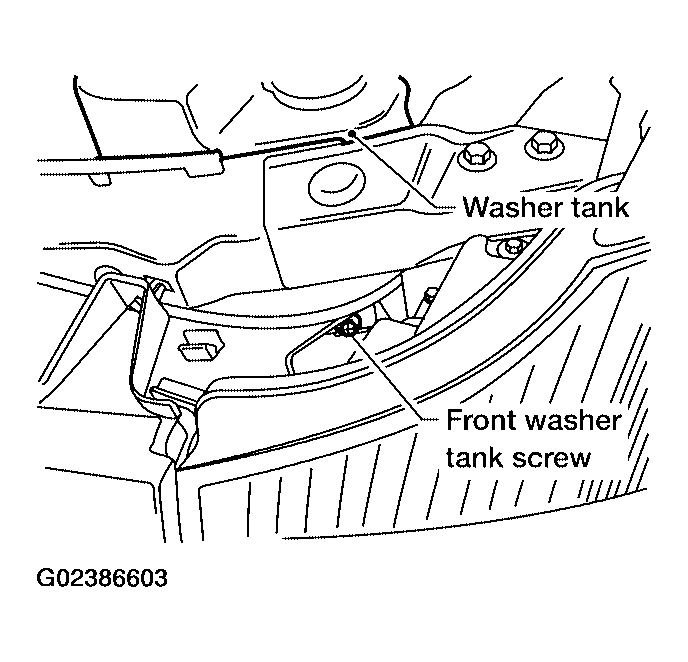

    Fig 3: Identifying Front Washer Tank Screw
    G02386603Courtesy of NISSAN MOTOR CO., U.S.A.
