Removal and Installation of Washer Motor: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove washer tank. Refer to "REMOVAL AND INSTALLATION OF WASHER TANK ".
Pull out front and rear washer motor in the direction of the arrow as shown, and remove the front and rear washer motor from the washer tank.

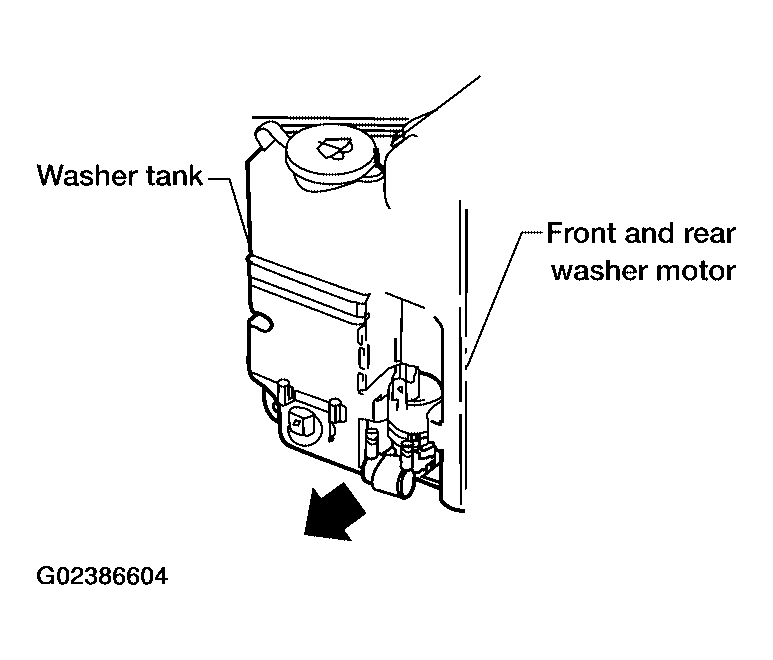

Fig 1: Pulling Out Front And Rear Washer Motor And Removing Front And Rear Washer Motor From Washer Tank
Courtesy of NISSAN MOTOR CO., U.S.A.
