Removal and Installation of Rear View Camera: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove back door lower finisher. Refer to "BACK DOOR TRIM ".
Remove connector.
Remove screws (2) and remove rear view camera.

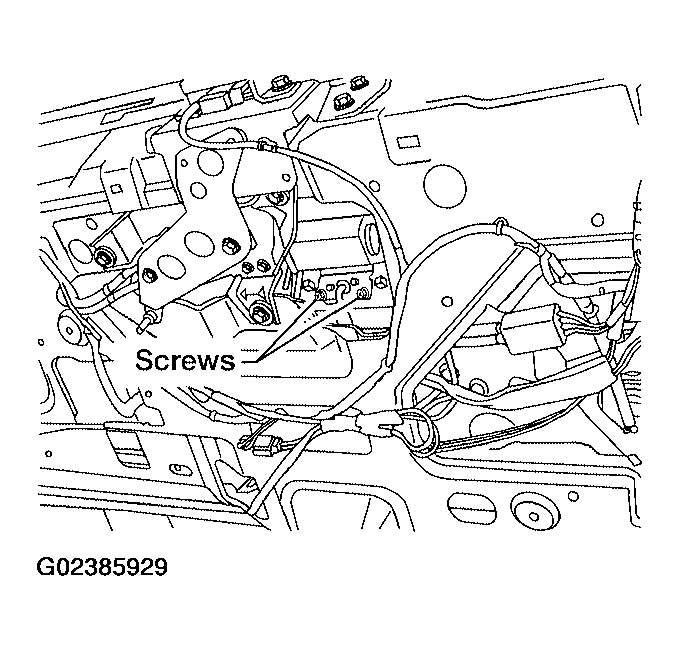

Fig 1: Identifying Rear View Camera Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
