Sonar Buzzer
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the sonar buzzer connector.

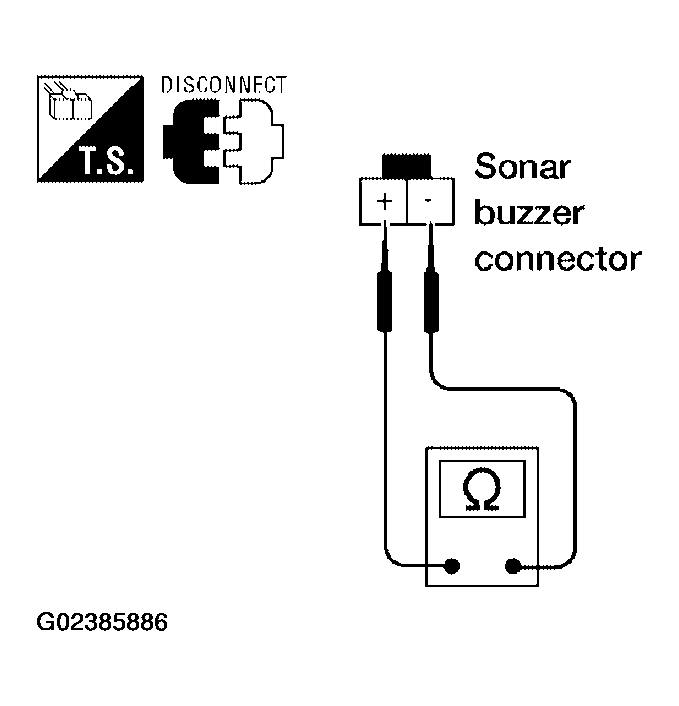

- Check continuity between buzzer connector M117 terminal (+) and terminal (-)
- (+) - (-): Continuity should exist
Courtesy of NISSAN MOTOR CO., U.S.A.
