Rear Sonar System Off Switch

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the rear sonar system OFF switch connector M116. Check continuity between the following terminals.

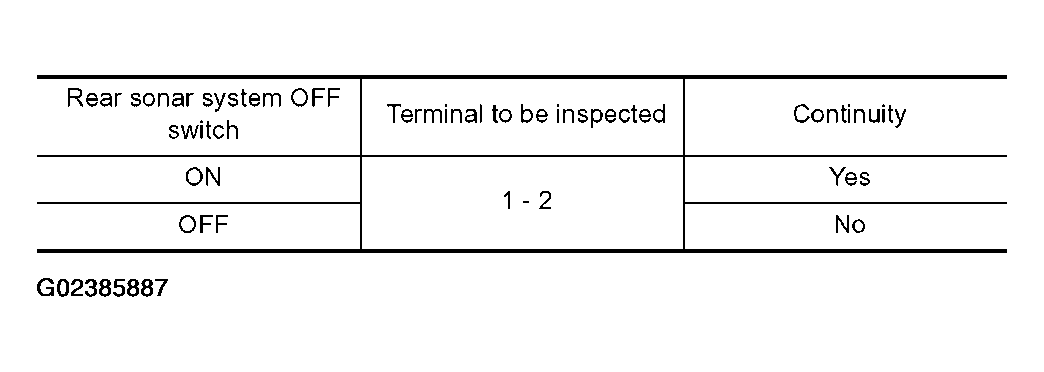

Fig 1: Rear Sonar System OFF Switch Terminal Continuity Specification Chart
G02385887Courtesy of NISSAN MOTOR CO., U.S.A.

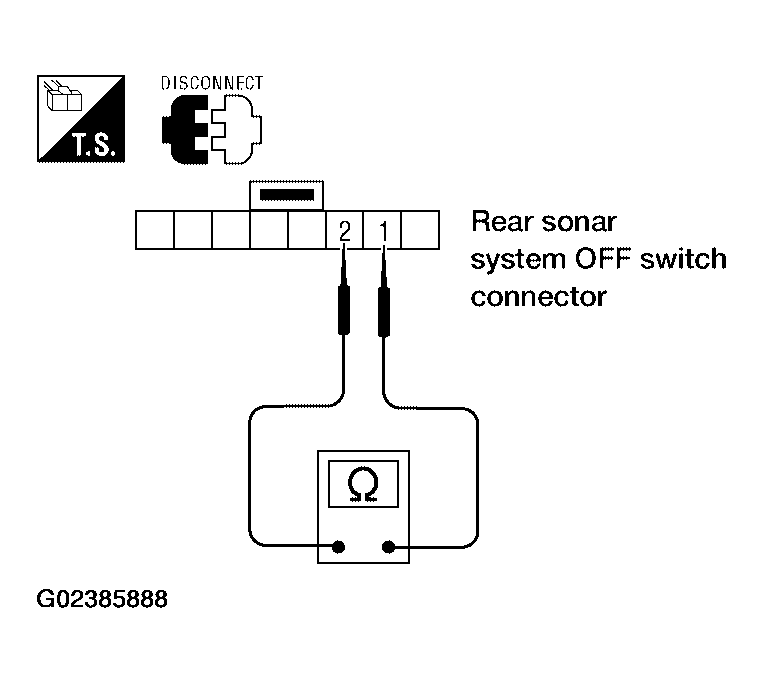

Fig 2: Disconnecting Rear Sonar System OFF Switch Connector M116
G02385888Courtesy of NISSAN MOTOR CO., U.S.A.
