Rear Sonar System Off Indicator

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the rear sonar system OFF switch connector M116, and apply battery voltage (approx. 12V) to terminal 5. Check the rear sonar system OFF indicator operation when terminal 6 is connected to battery ground.

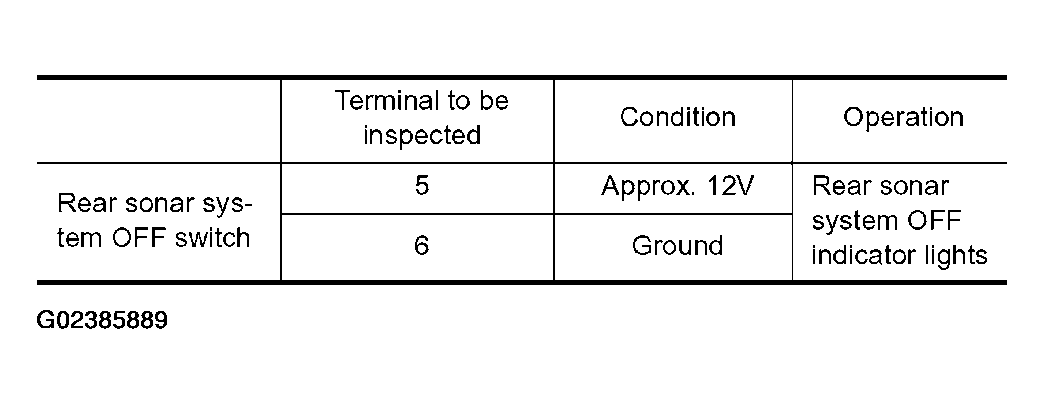

Fig 1: Rear Sonar System OFF Indicator Operation Chart
G02385889Courtesy of NISSAN MOTOR CO., U.S.A.

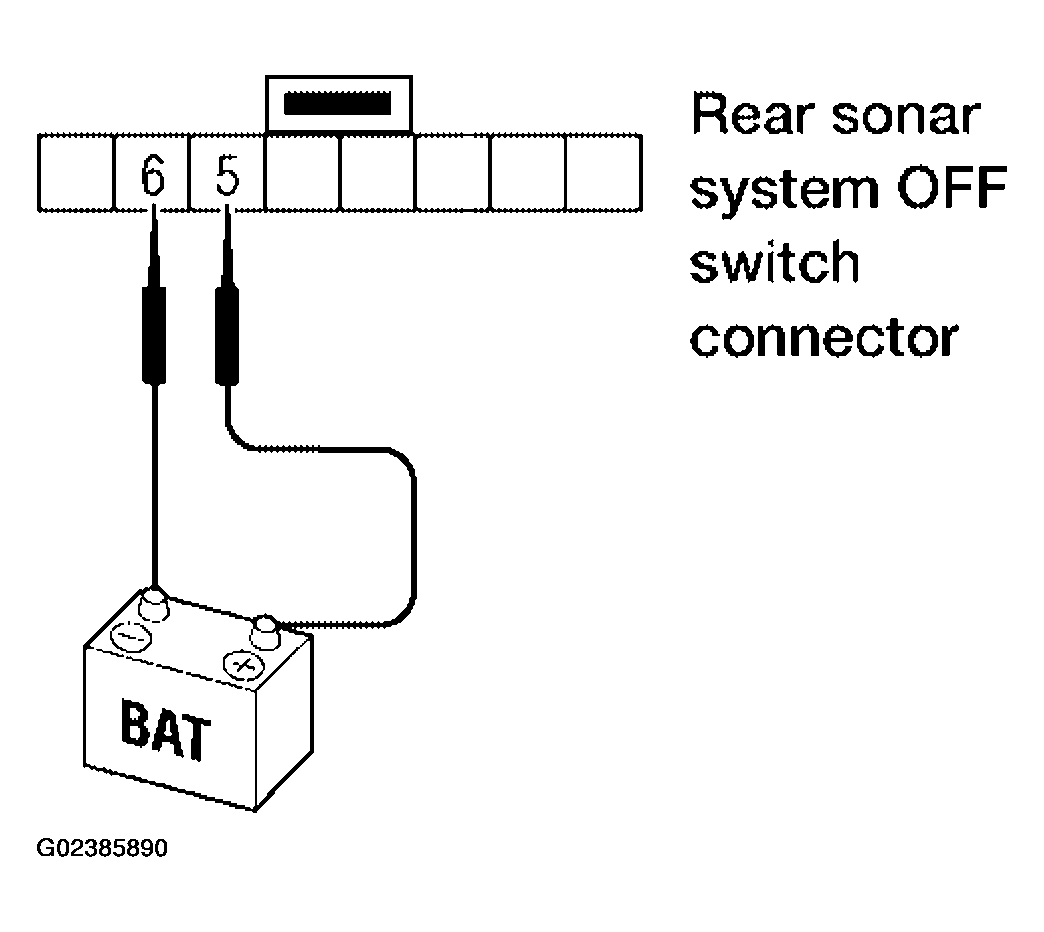

Fig 2: Checking Rear Sonar System OFF Indicator Operation With Terminal 6 Connected To Battery Ground
G02385890Courtesy of NISSAN MOTOR CO., U.S.A.
