Removal and Installation of Clock: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove screws (3) and remove clock from cluster lid C.

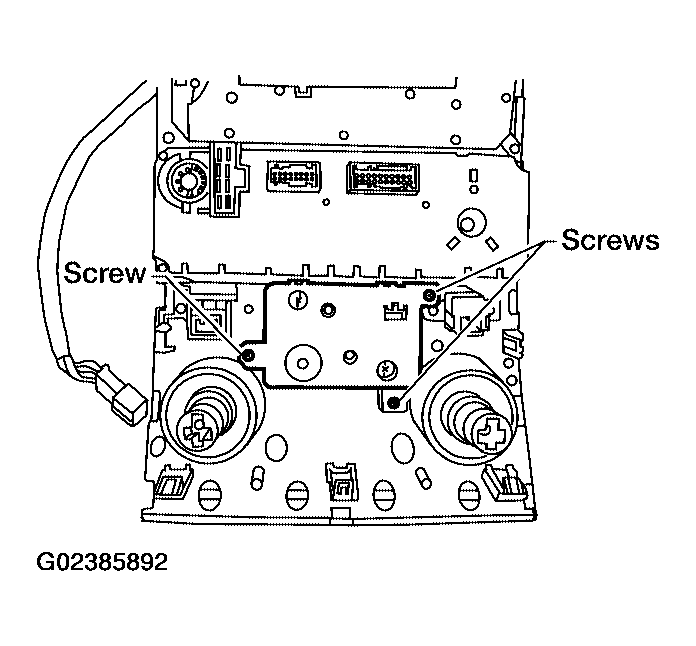

    Fig 1: Identifying Clock Screws
    G02385892Courtesy of NISSAN MOTOR CO., U.S.A.
