Turn Signal Lamp Does Not Operate

With CONSULT-II

Select "BCM" on CONSULT-II. With "FLASHER" data monitor, make sure "TURN SIGNAL R" and "TURN SIGNAL L" turns ON-OFF linked with operation of lighting switch.

• When lighting switch is in TURN RH position: TURN SIGNAL R ON
• When lighting switch is in TURN LH position: TURN SIGNAL L ON

Without CONSULT-II

Refer to "COMBINATION SWITCH INSPECTION ".

OK or NG

• OK: GO TO 2.
• NG: Check lighting switch. Refer to "COMBINATION SWITCH INSPECTION ".

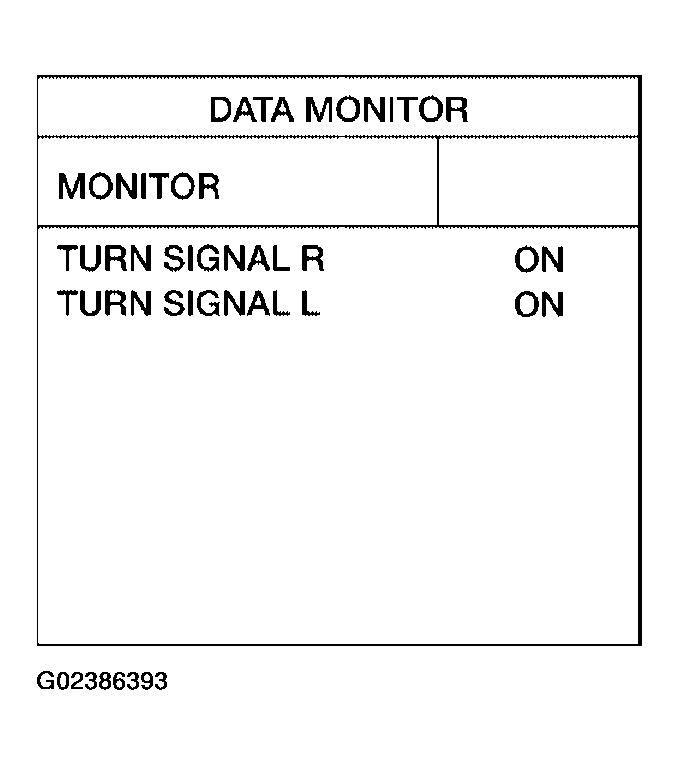

Fig 1: Identifying "TURN SIGNAL R" And "TURN SIGNAL L" Turned "ON"

Courtesy of NISSAN MOTOR CO., U.S.A.

With CONSULT-II

1. Select "FLASHER" during active test. Refer to "ACTIVE TEST ".
2. Make sure "FLASHER RH" and "FLASHER LH" operate.

Without CONSULT-II

GO TO 3.

OK or NG

• OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
• NG: GO TO 3.

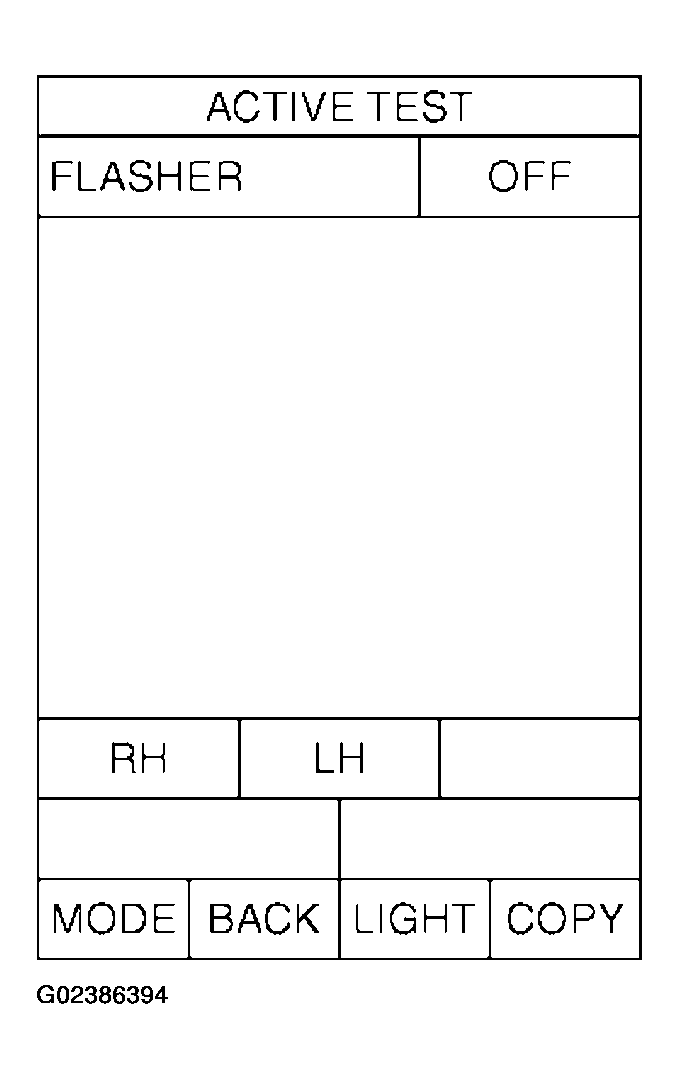

Fig 2: Identifying"FLASHER RH" And "FLASHER LH" On ACTIVE TEST

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Disconnect BCM connector and front turn/fog lamp LH and RH connectors.
3. Check continuity between BCM harness connector M20 terminal 60 (G/B) and front turn/fog lamp LH harness connector E101 terminal 2 (G/B).
   • 60 (G/B) - 2 (G/B): Continuity should exist.
4. Check continuity between BCM harness connector M20 terminal 61 (G/Y) and front turn/fog lamp RH harness connector E102 terminal 2 (G/Y).
   • 61 (G/Y) - 2 (G/Y): Continuity should exist.

   OK or NG

   • OK: GO TO 4.
   • NG: Repair harness or connector.

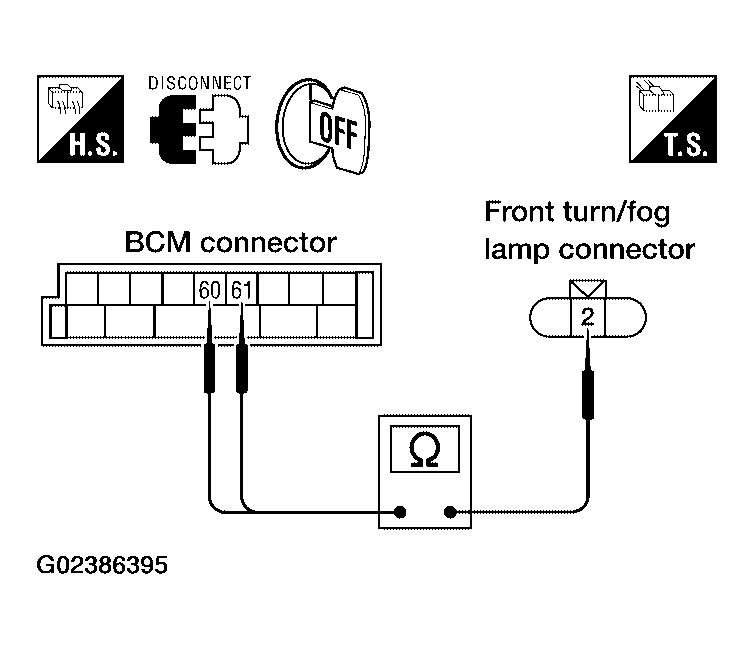

Fig 3: Checking Continuity Between BCM Harness Connector M20 Terminal 61 And Front Turn/Fog Lamp RH Harness Connector E102 Terminal 2

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Check continuity between front turn/fog lamp LH harness connector E101 terminal 3 (B) and ground.
   • 3 (B) - Ground: Continuity should exist.
2. Check continuity between front turn/fog lamp RH harness connector E102 terminal 3 (B) and ground.
   • 3 (B) - Ground: Continuity should exist.

OK or NG

• OK: GO TO 5.
• NG: Repair harness or connector.

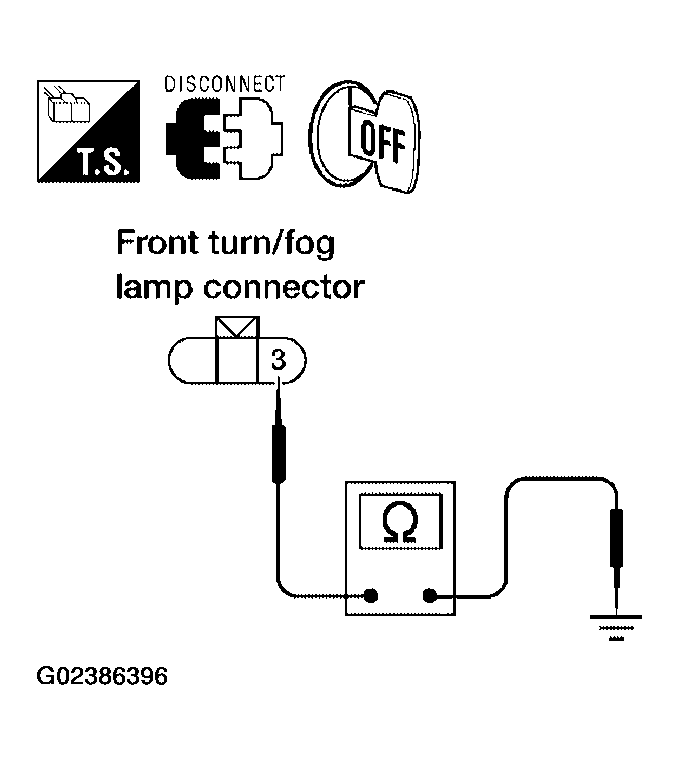

Fig 4: Checking Continuity Between Front Turn/Fog Lamp RH Harness Connector E102 Terminal 3 (B) And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Check bulb standard of each turn signal lamp is correct. Refer to "EXTERIOR LAMP ".

OK or NG

• OK: Replace BCM if turn signal lamps do not work after setting the connector again. Refer to "REMOVAL AND INSTALLATION OF BCM ".
• NG: Replace turn signal lamp bulb. Refer to "FRONT PARKING LAMP (INNER OR OUTER) ".
