Removal And Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door upper finisher.
  2. Remove 2 nuts and remove high-mounted stop lamp.

    Installation is in the reverse order of removal.

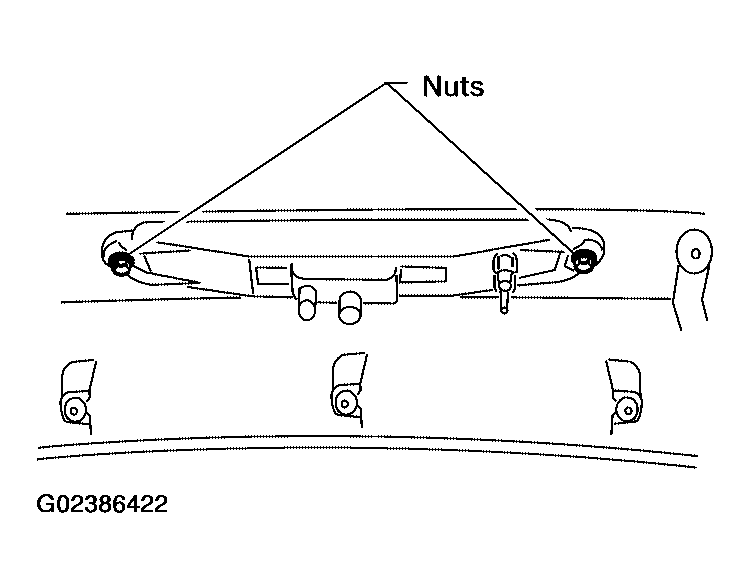

    Fig 1: Identifying High-Mounted Stop Lamp Nuts
    G02386422Courtesy of NISSAN MOTOR CO., U.S.A.
