Bulb Replacement (Turn Signal)

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The tail/stop lamp bulbs are LEDs and are not serviceable separately.
  1. Remove rear combination lamp mounting bolts.
  2. Pull rear combination lamp to remove from the vehicle.
  3. Turn bulb socket counterclockwise and unlock it.
  4. Remove bulb.

    Installation is in the reverse order of removal.

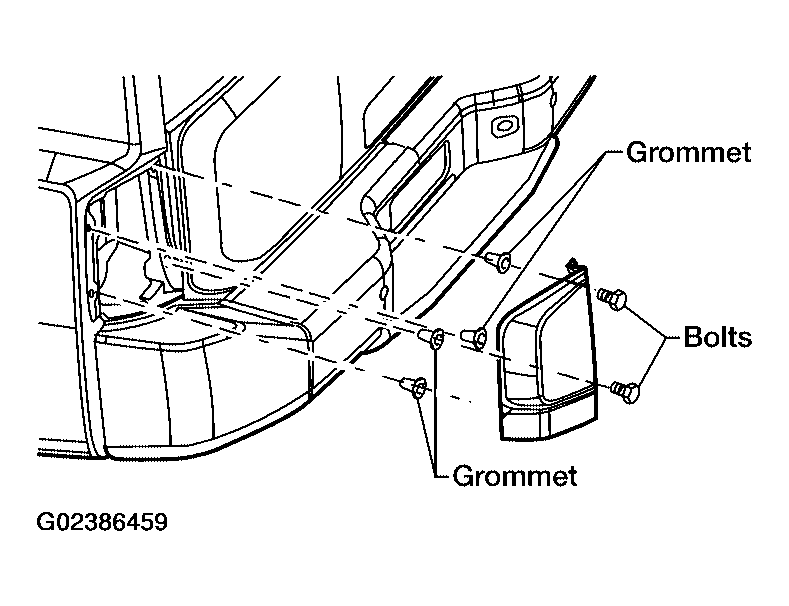

    Fig 1: Identifying Rear Combination Lamp Mounting Bolts
    G02386459Courtesy of NISSAN MOTOR CO., U.S.A.
