Wiring Diagram - TAIL/L -

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

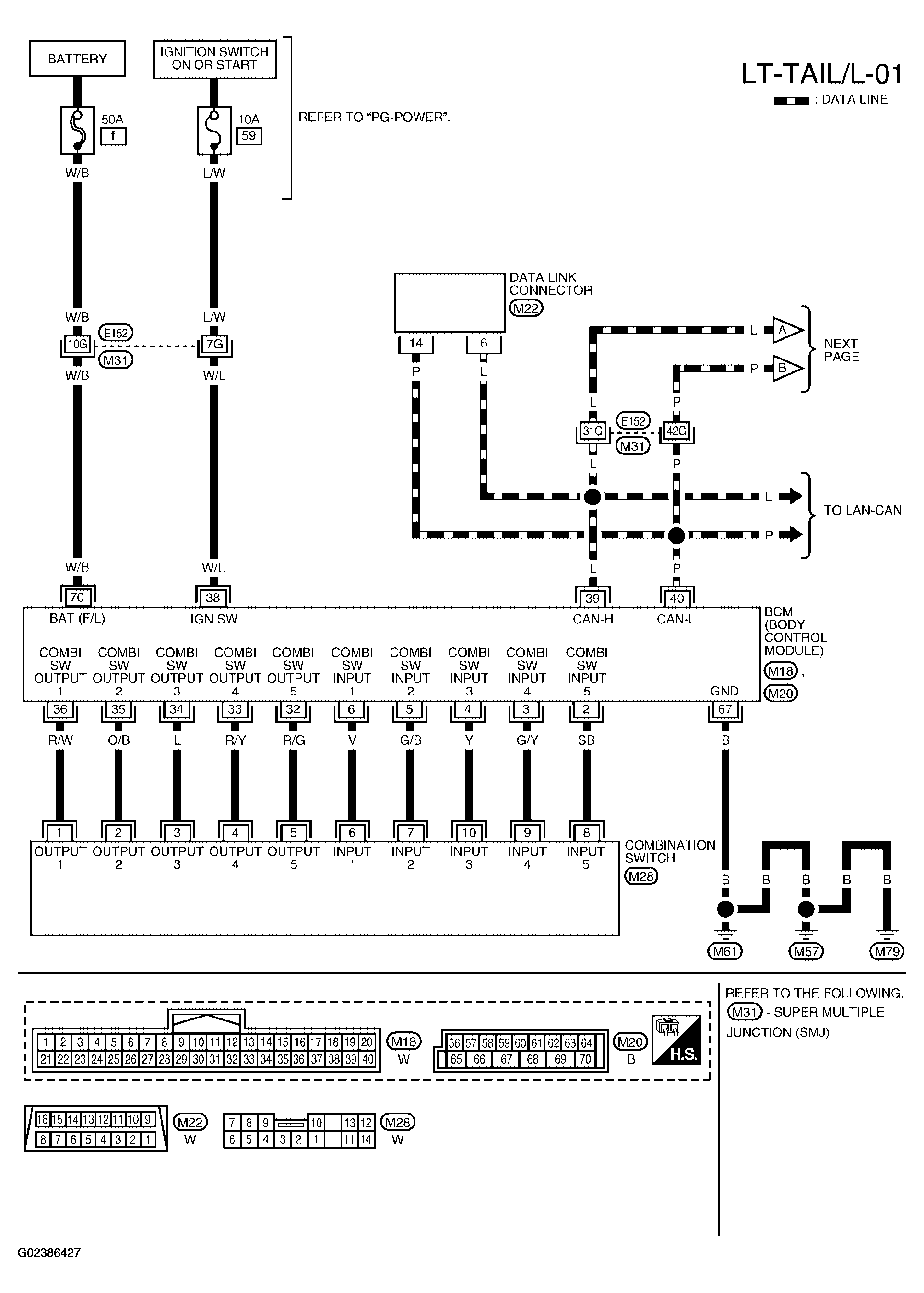

Fig 1: Wiring Diagram - LT-TAIL/L-01

Courtesy of NISSAN MOTOR CO., U.S.A.

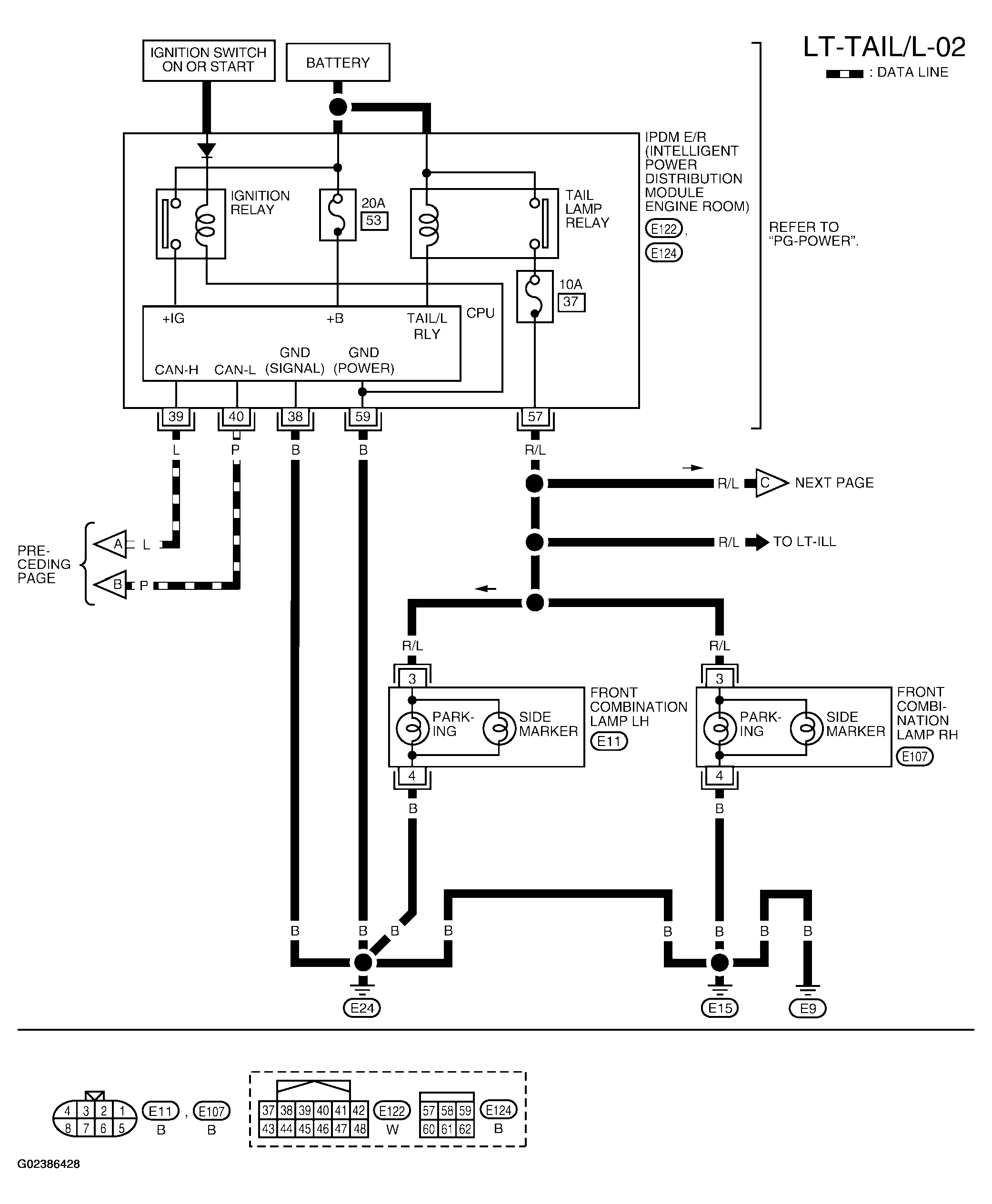

Fig 2: Wiring Diagram - LT-TAIL/L-02

Courtesy of NISSAN MOTOR CO., U.S.A.

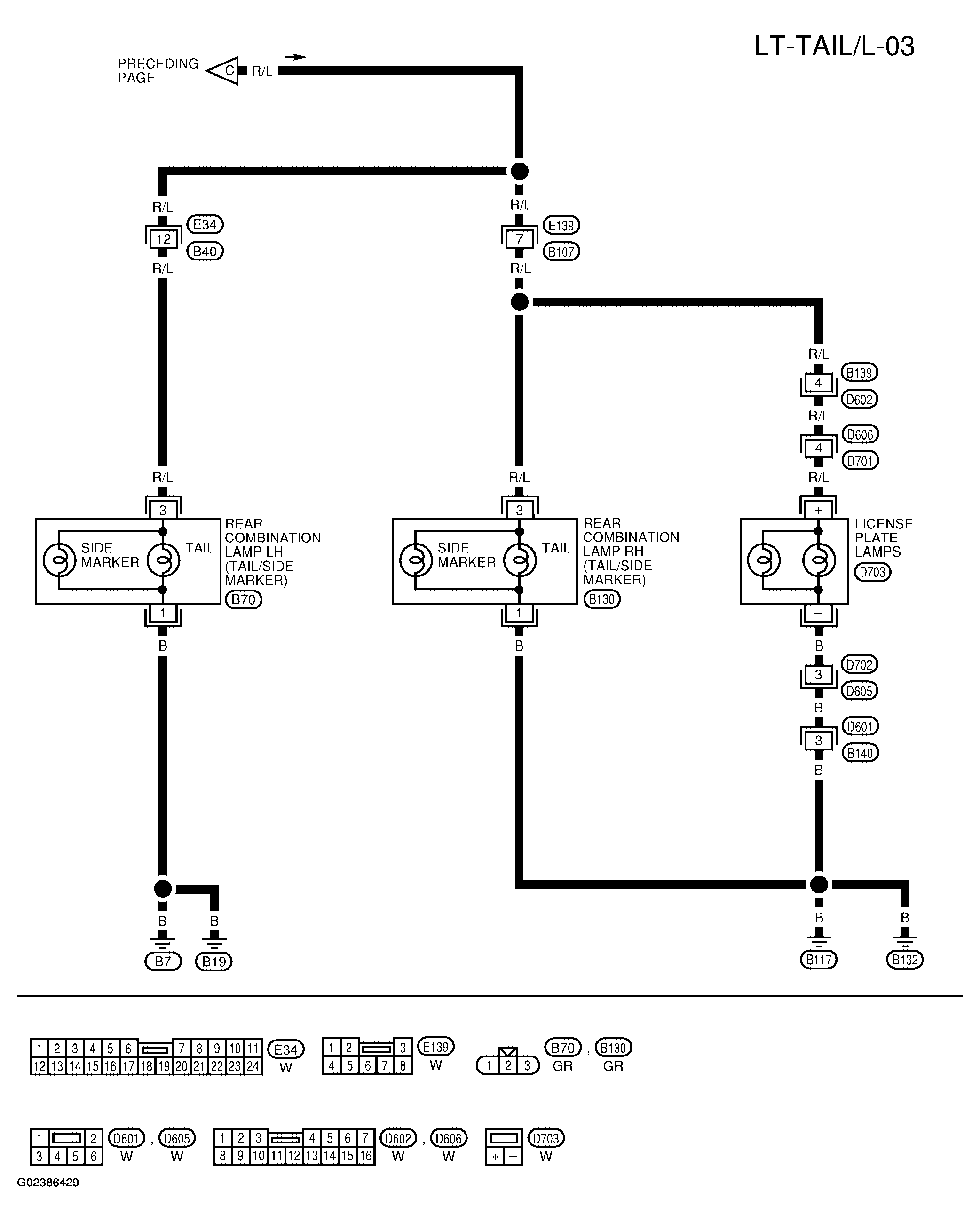

Fig 3: Wiring Diagram - LT-TAIL/L-03

Courtesy of NISSAN MOTOR CO., U.S.A.
