Parking, License Plate And Tail Lamps: Schematic

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

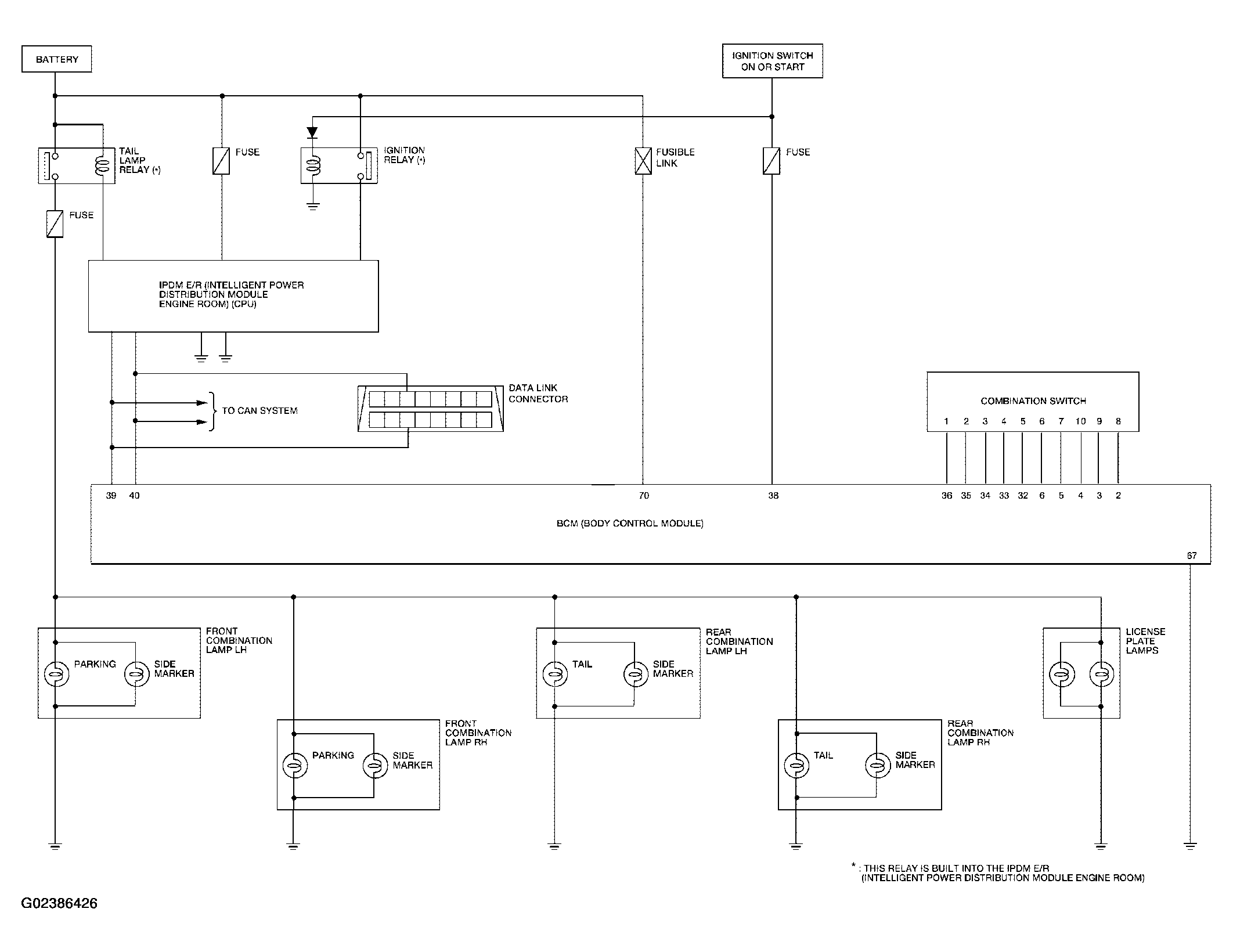

Fig 1: Parking, License Plate And Tail Lamps - Schematic Diagram
G02386426Courtesy of NISSAN MOTOR CO., U.S.A.
