Wiring Diagram - INT/L -

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

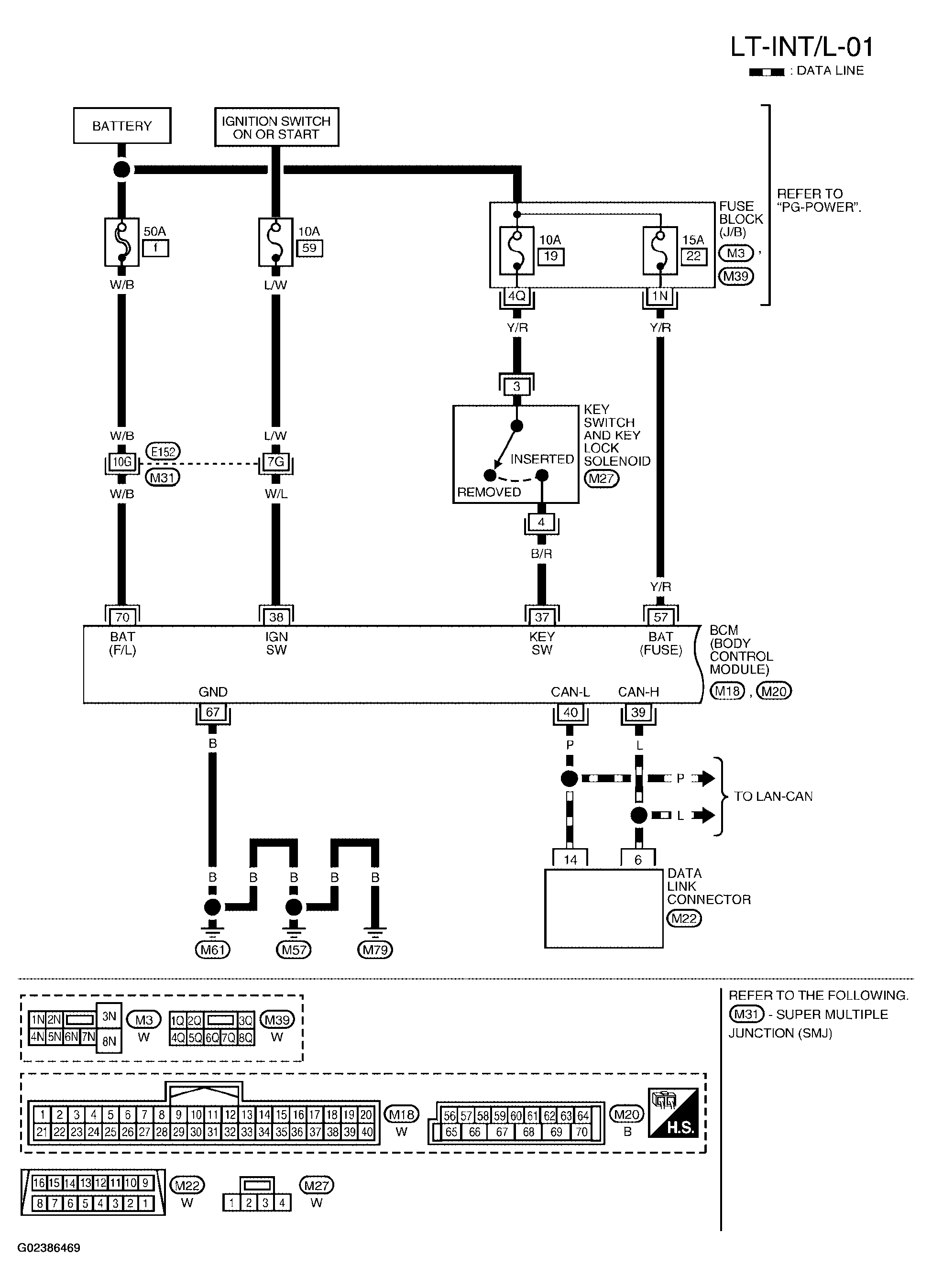

Fig 1: Wiring Diagram - LT-INT/L-01

Courtesy of NISSAN MOTOR CO., U.S.A.

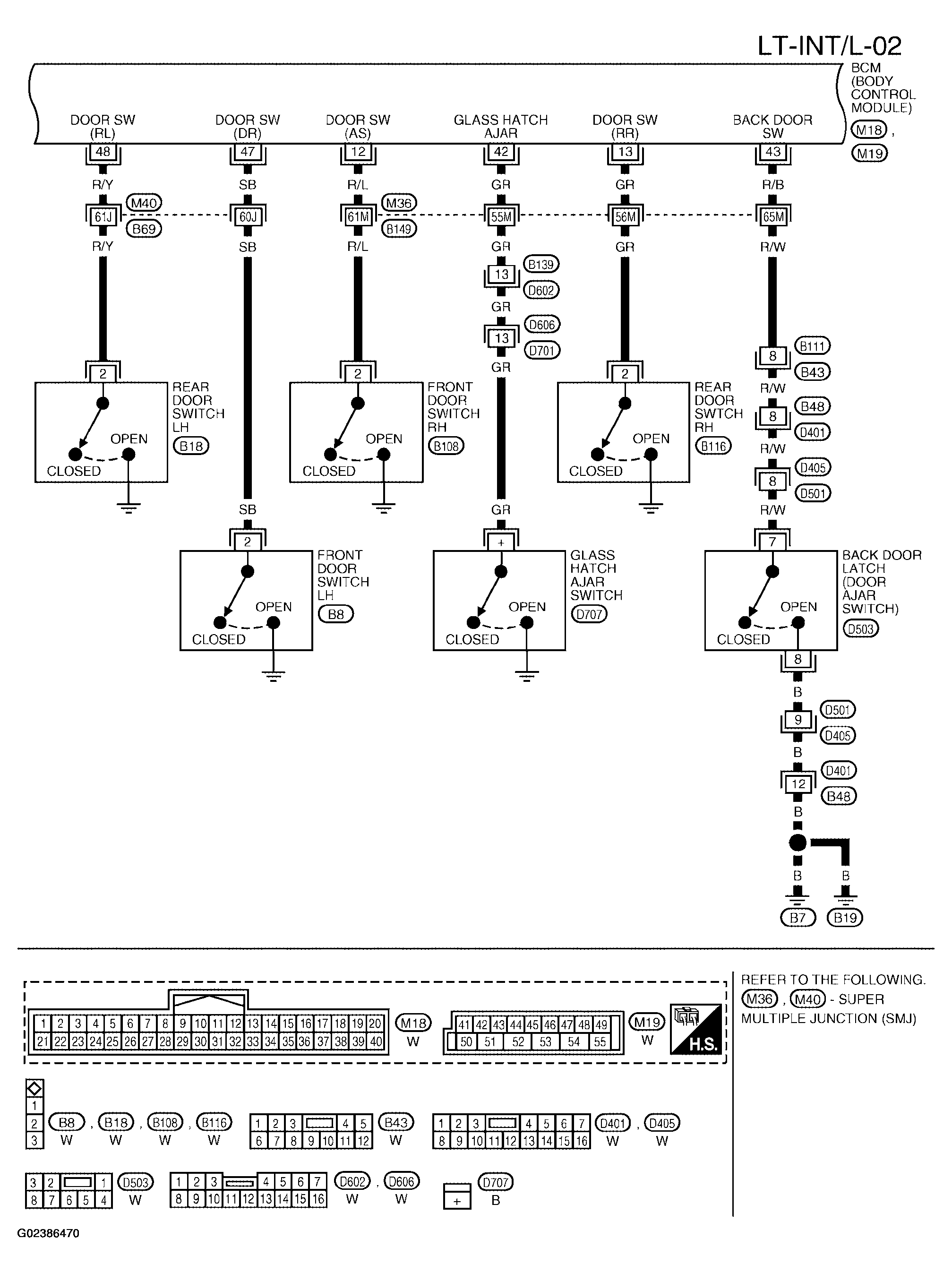

Fig 2: Wiring Diagram - LT-INT/L-02

Courtesy of NISSAN MOTOR CO., U.S.A.

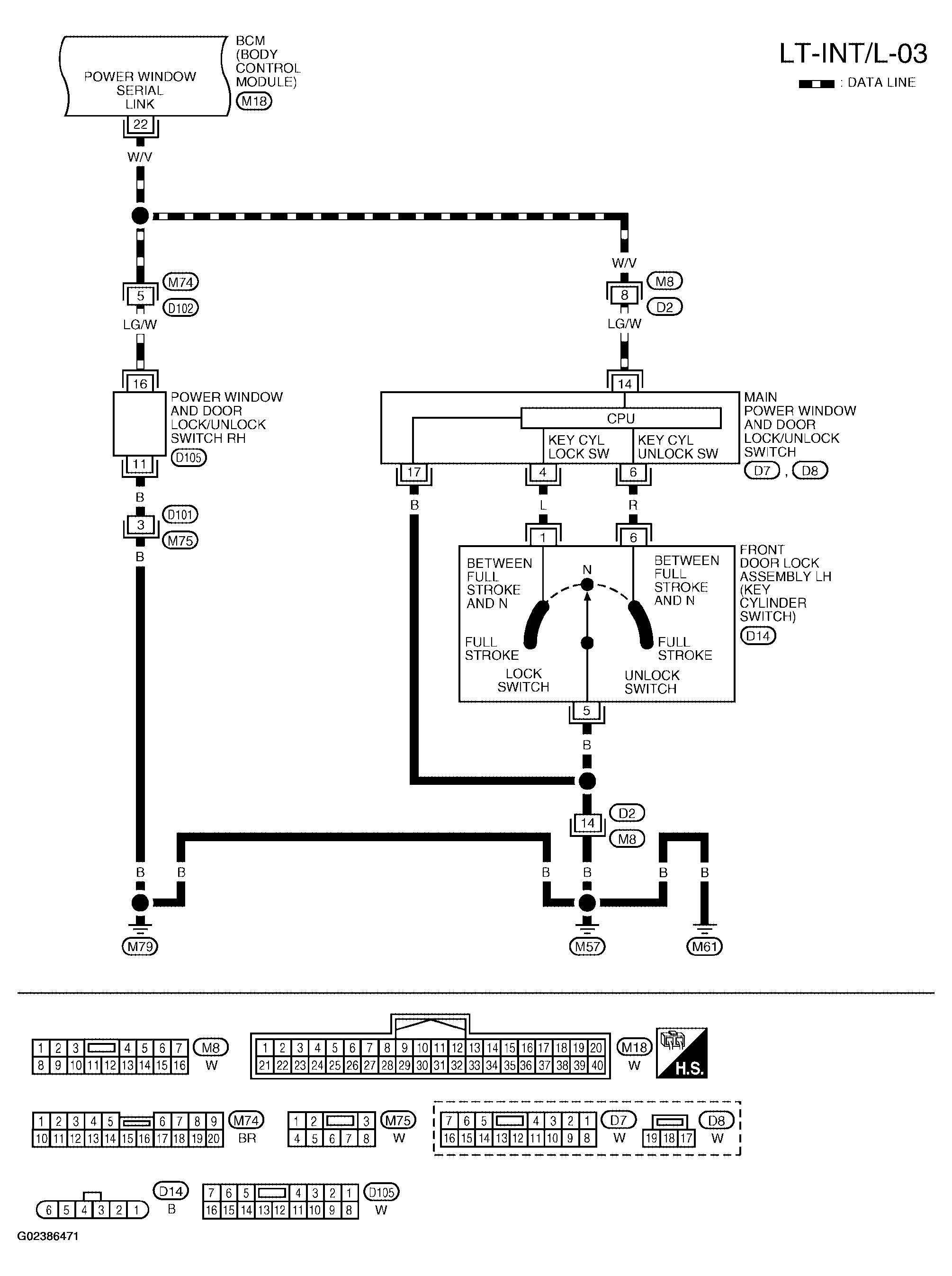

Fig 3: Wiring Diagram - LT-INT/L-03

Courtesy of NISSAN MOTOR CO., U.S.A.

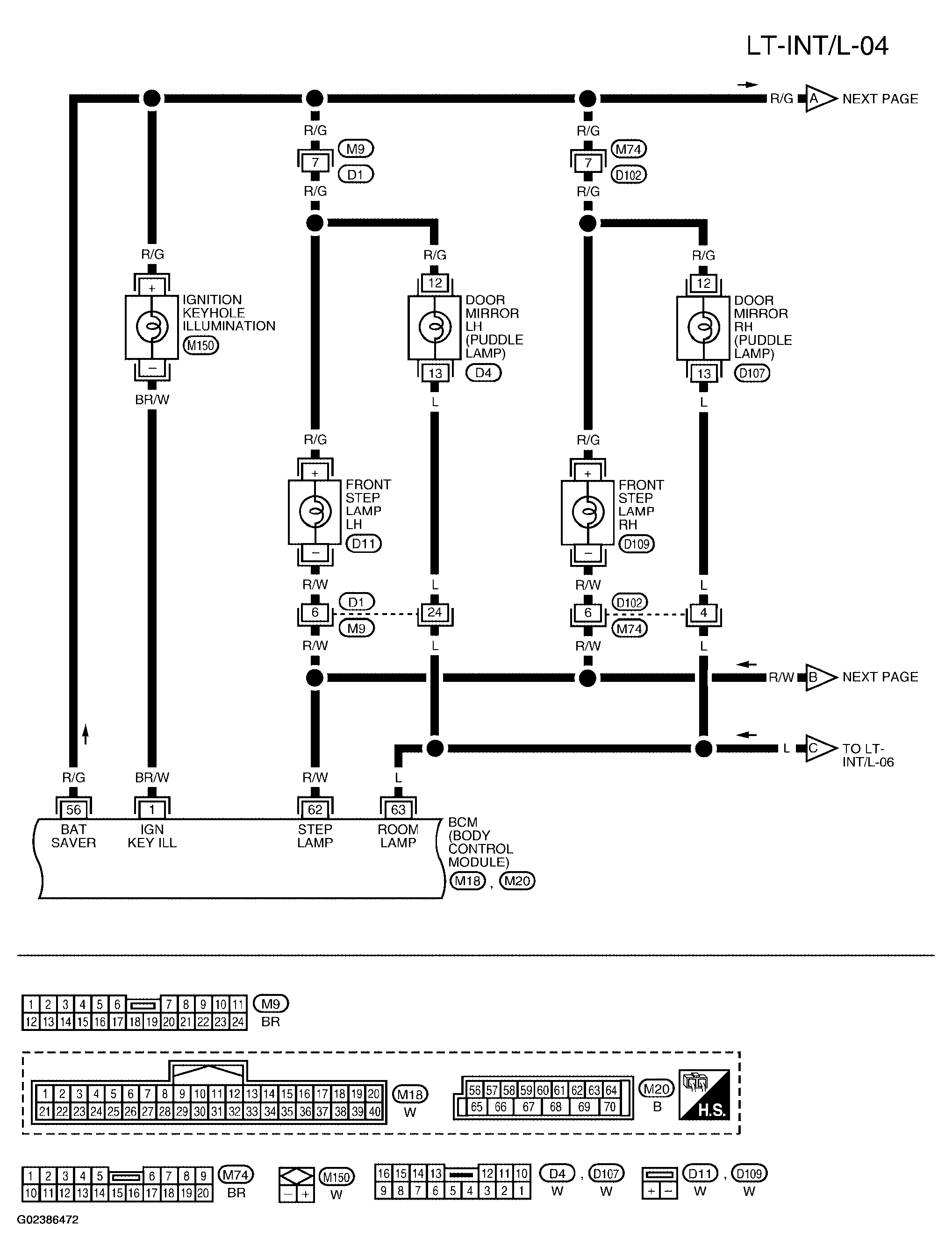

Fig 4: Wiring Diagram - LT-INT/L-04

Courtesy of NISSAN MOTOR CO., U.S.A.

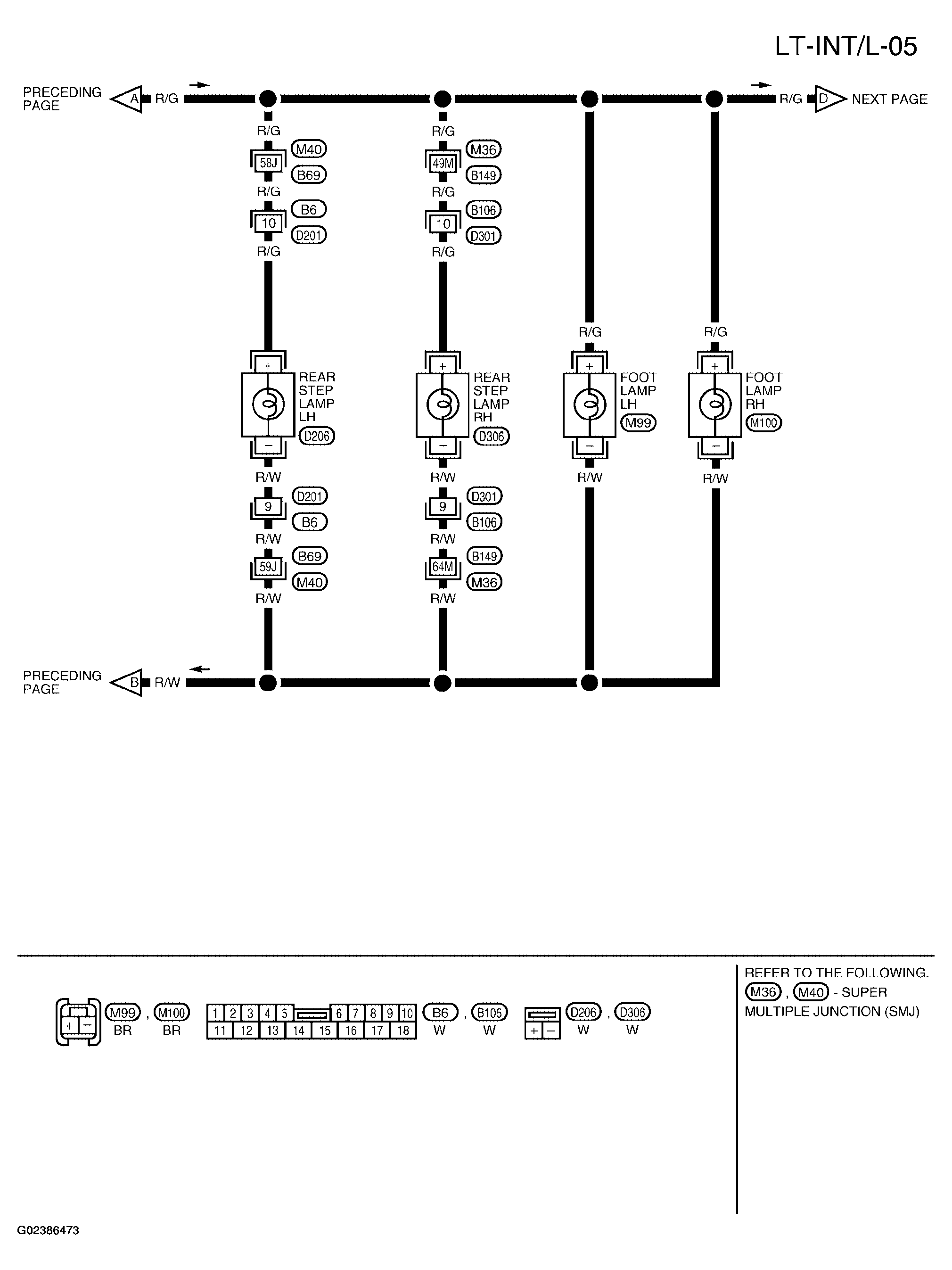

Fig 5: Wiring Diagram - LT-INT/L-05

Courtesy of NISSAN MOTOR CO., U.S.A.

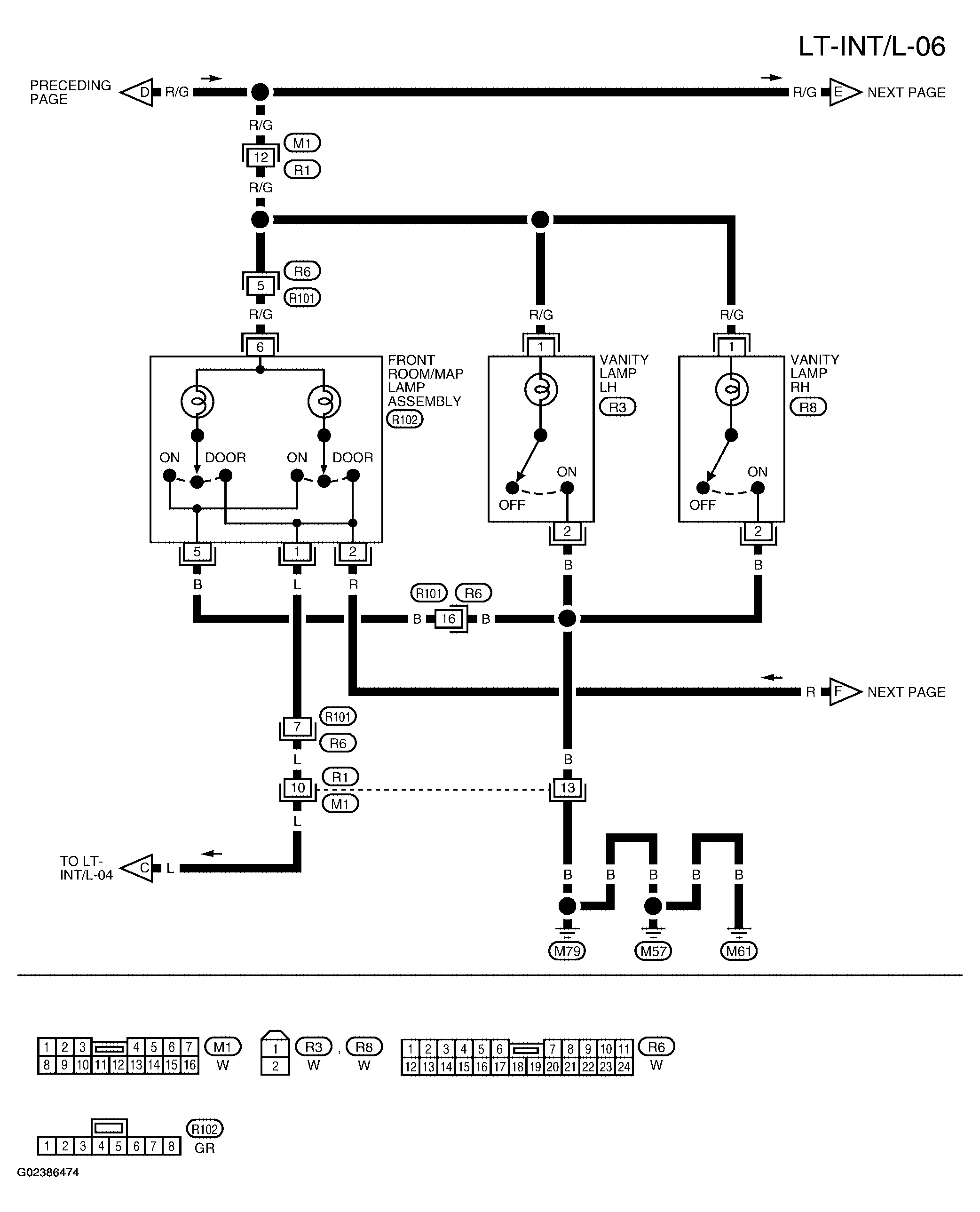

Fig 6: Wiring Diagram - LT-INT/L-06

Courtesy of NISSAN MOTOR CO., U.S.A.

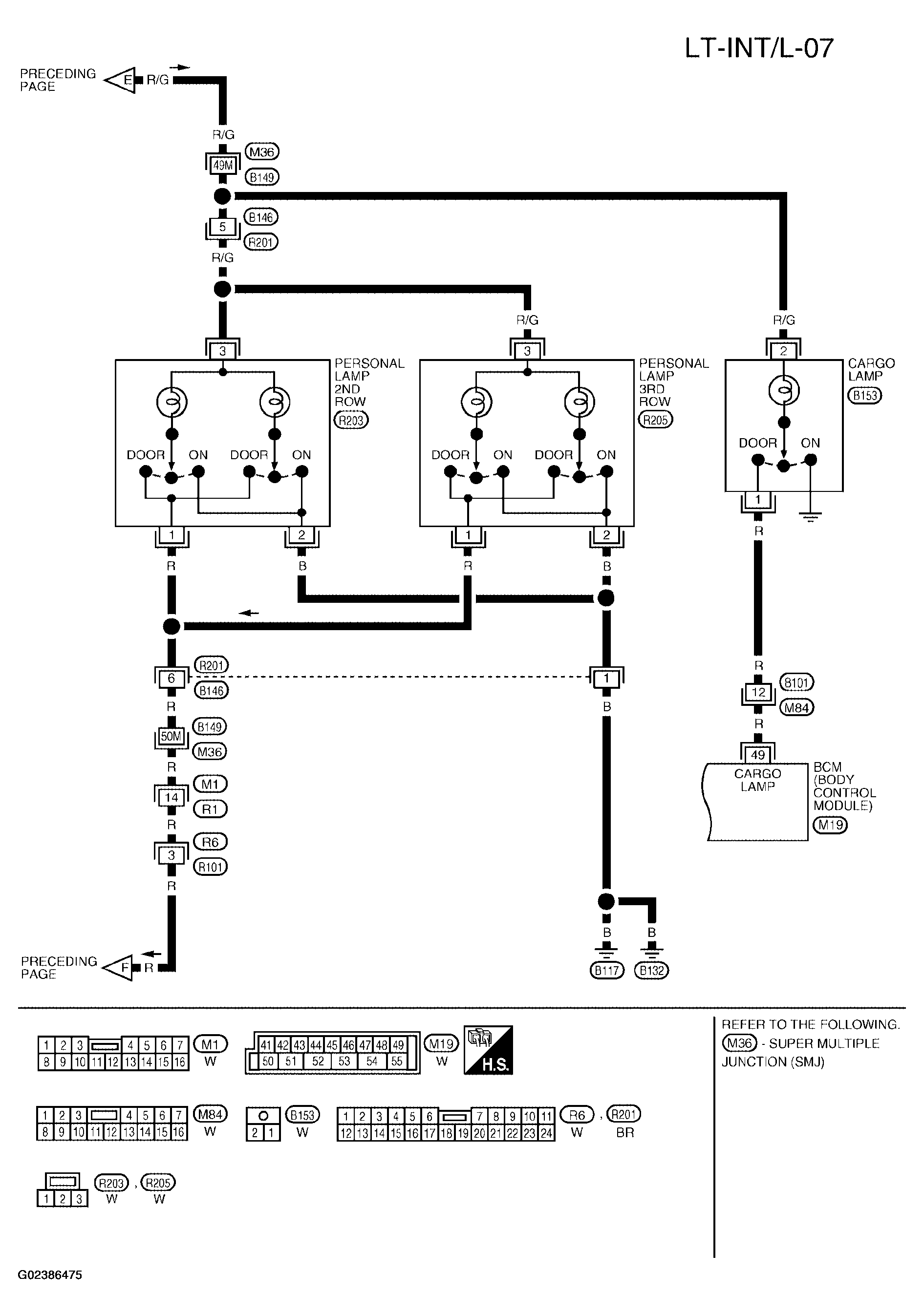

Fig 7: Wiring Diagram - LT-INT/L-07

Courtesy of NISSAN MOTOR CO., U.S.A.
