Wiring Diagram - ILL -

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

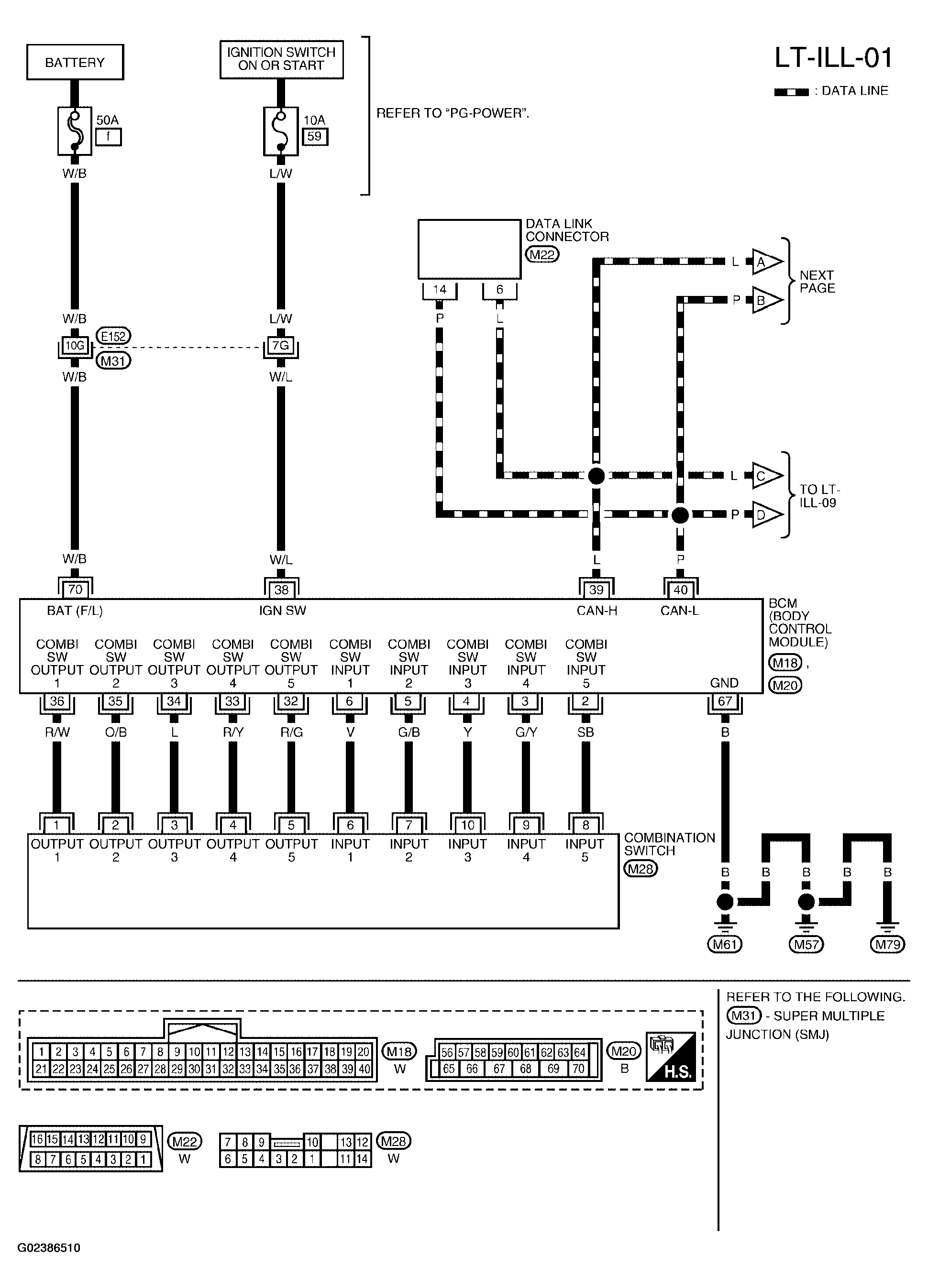

Fig 1: Wiring Diagram - LT-ILL-01

Courtesy of NISSAN MOTOR CO., U.S.A.

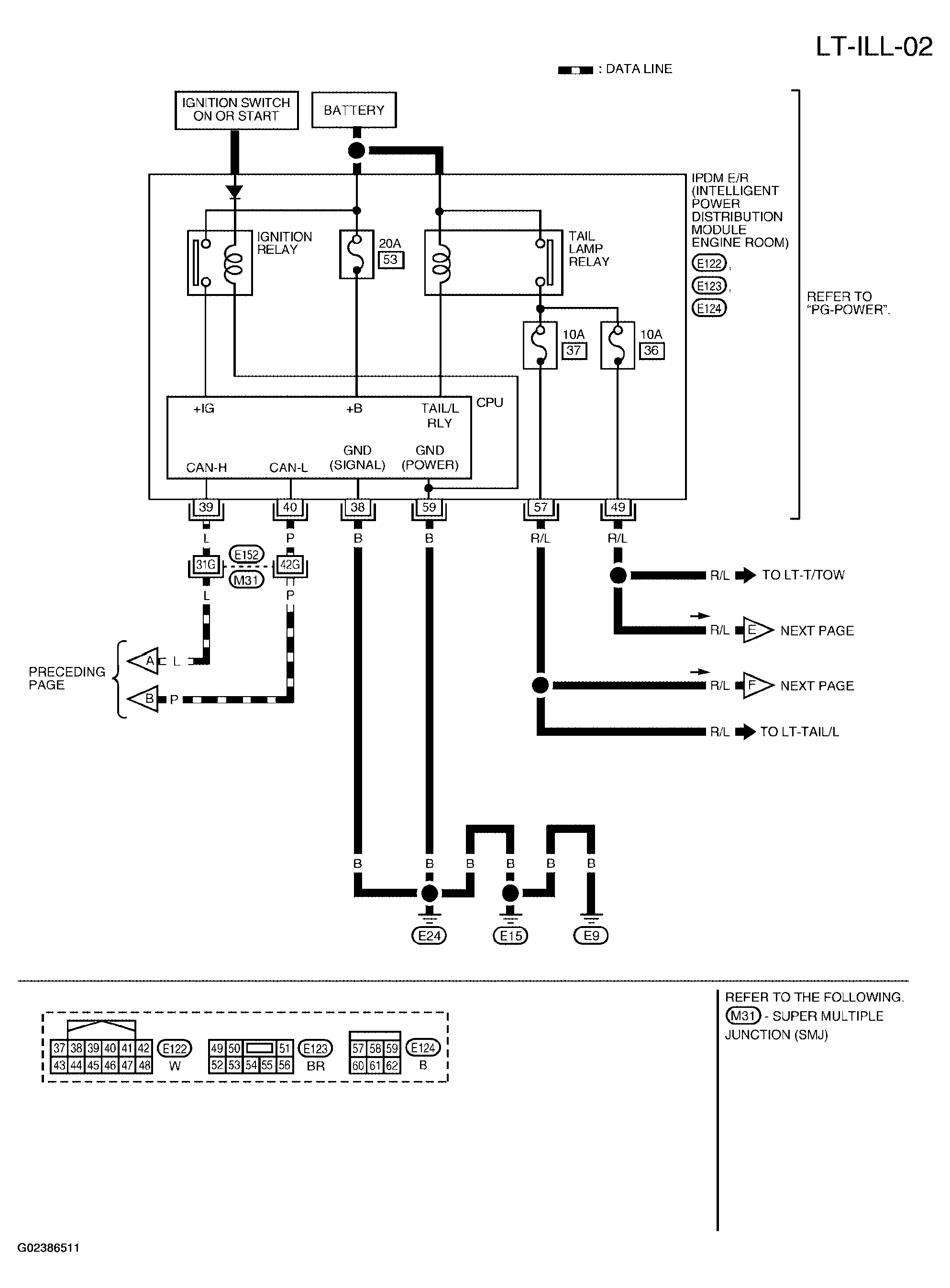

Fig 2: Wiring Diagram - LT-ILL-02

Courtesy of NISSAN MOTOR CO., U.S.A.

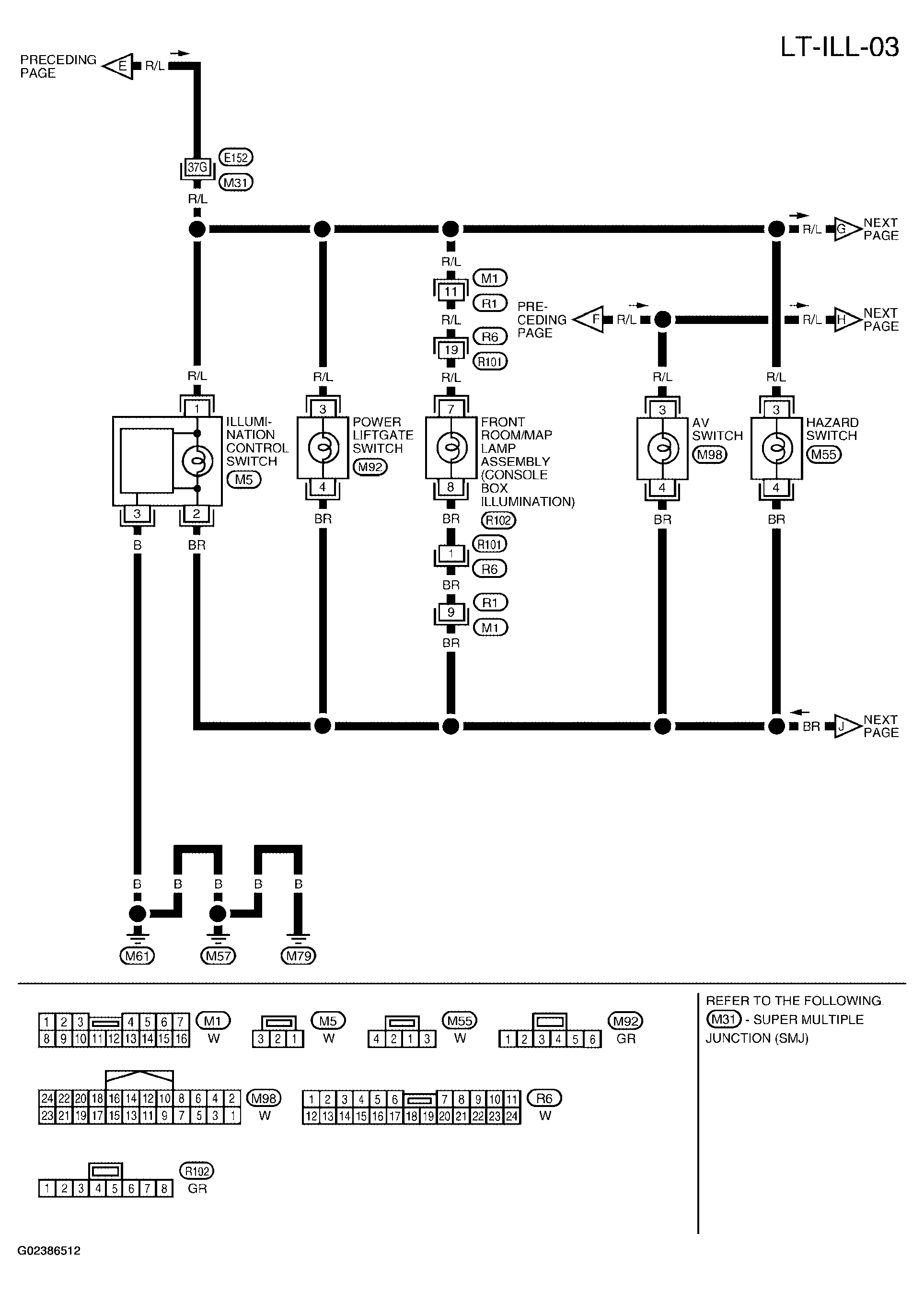

Fig 3: Wiring Diagram - LT-ILL-03

Courtesy of NISSAN MOTOR CO., U.S.A.

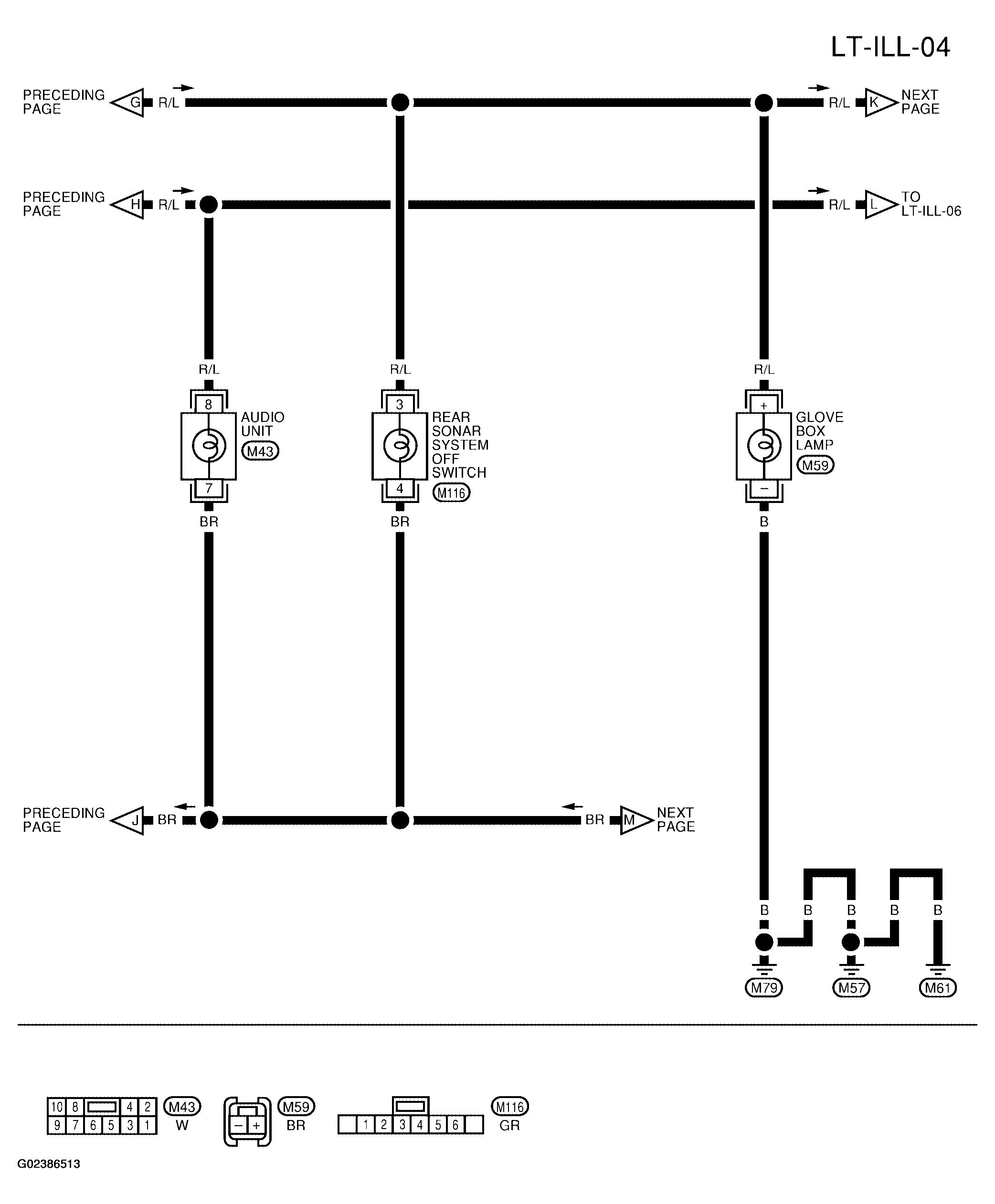

Fig 4: Wiring Diagram - LT-ILL-04

Courtesy of NISSAN MOTOR CO., U.S.A.

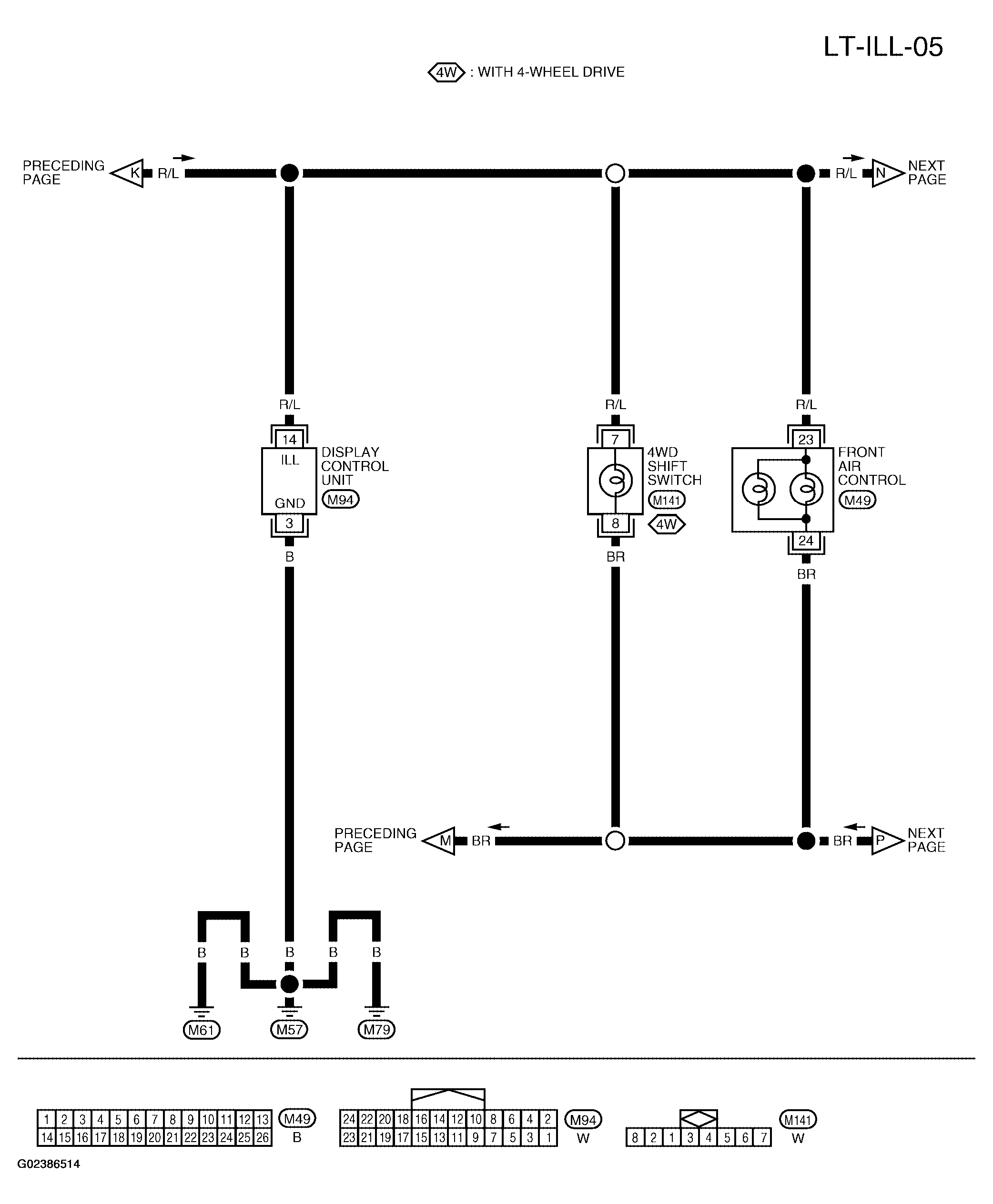

Fig 5: Wiring Diagram - LT-ILL-05

Courtesy of NISSAN MOTOR CO., U.S.A.

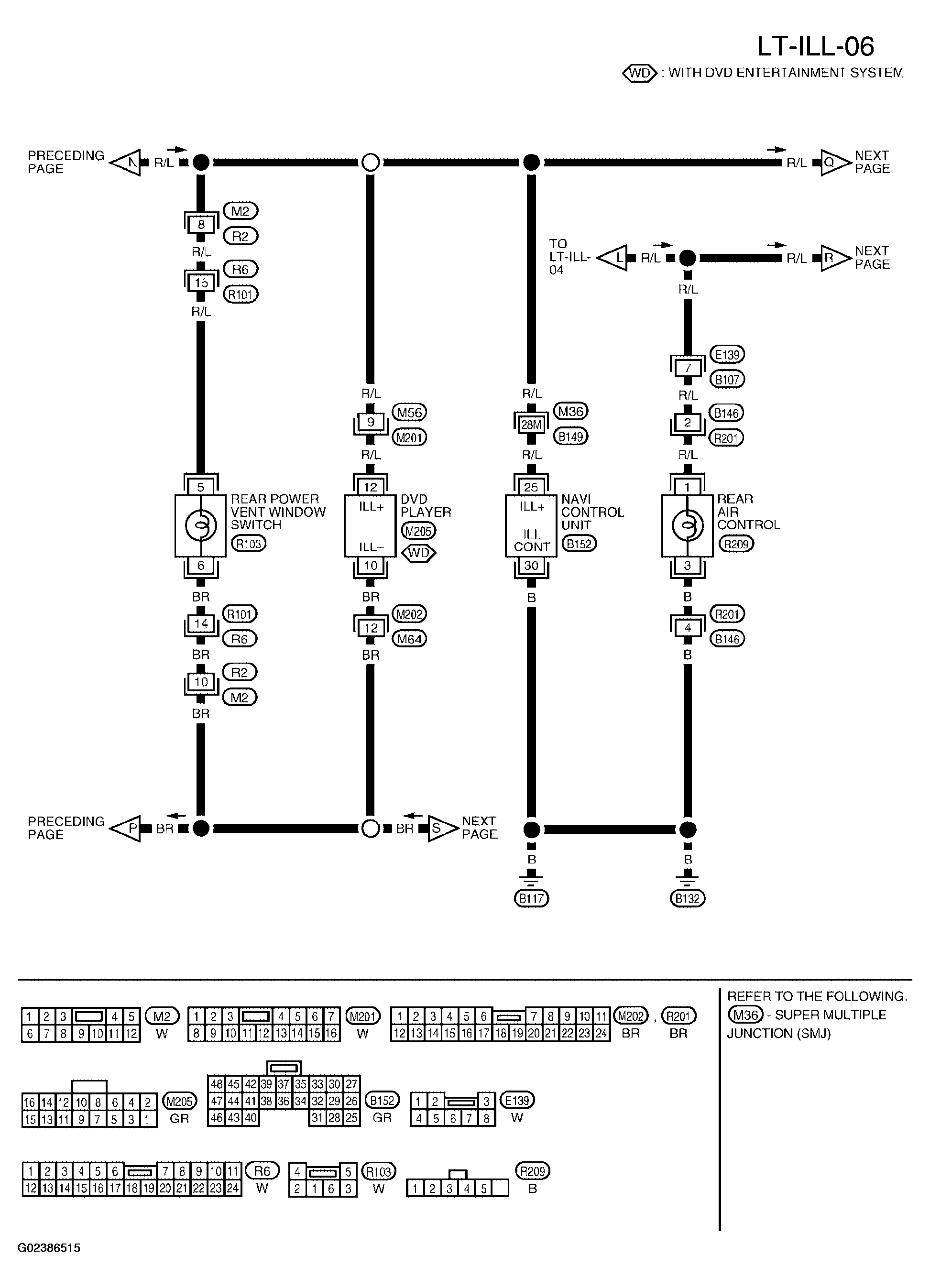

Fig 6: Wiring Diagram - LT-ILL-06

Courtesy of NISSAN MOTOR CO., U.S.A.

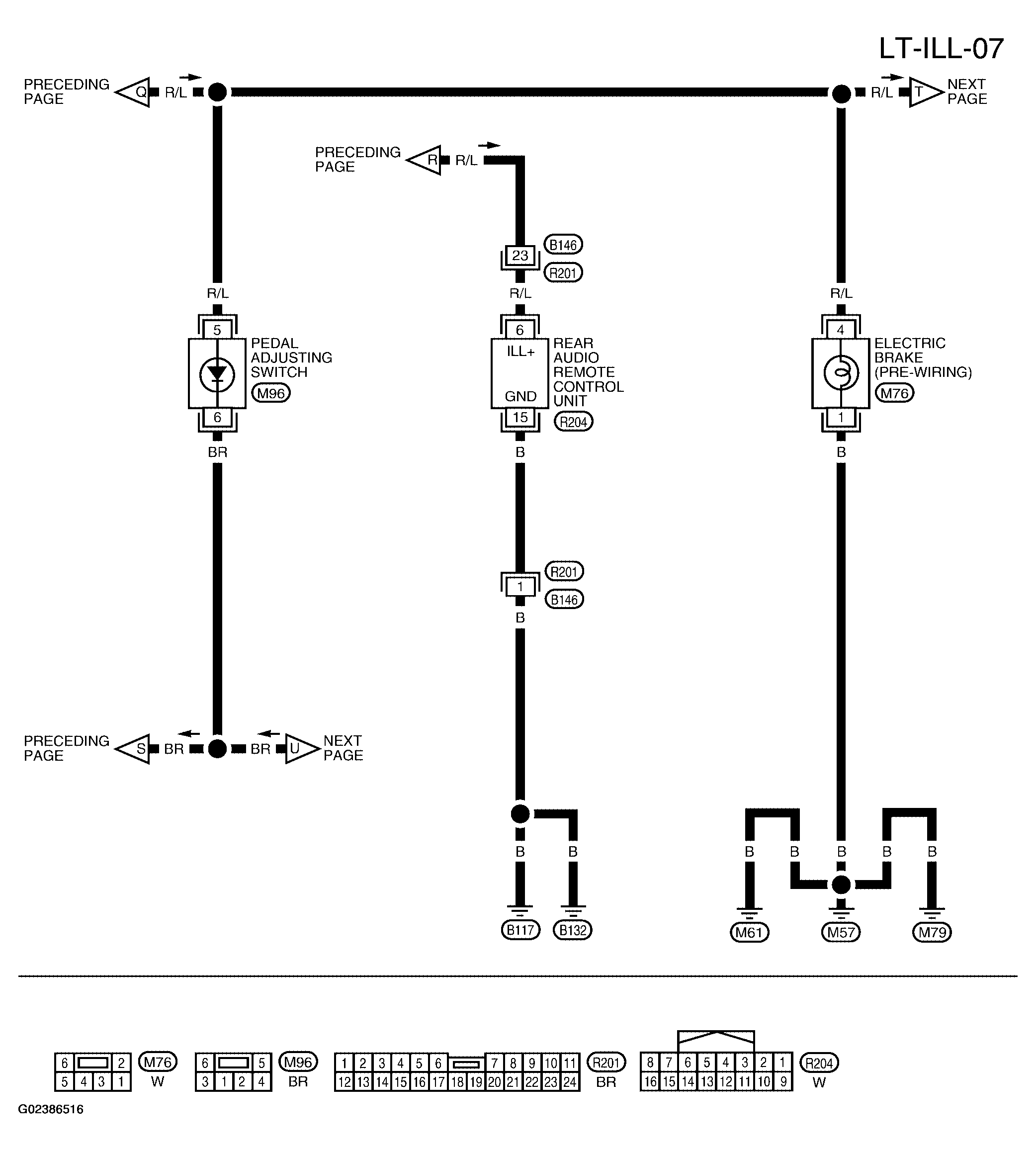

Fig 7: Wiring Diagram - LT-ILL-07

Courtesy of NISSAN MOTOR CO., U.S.A.

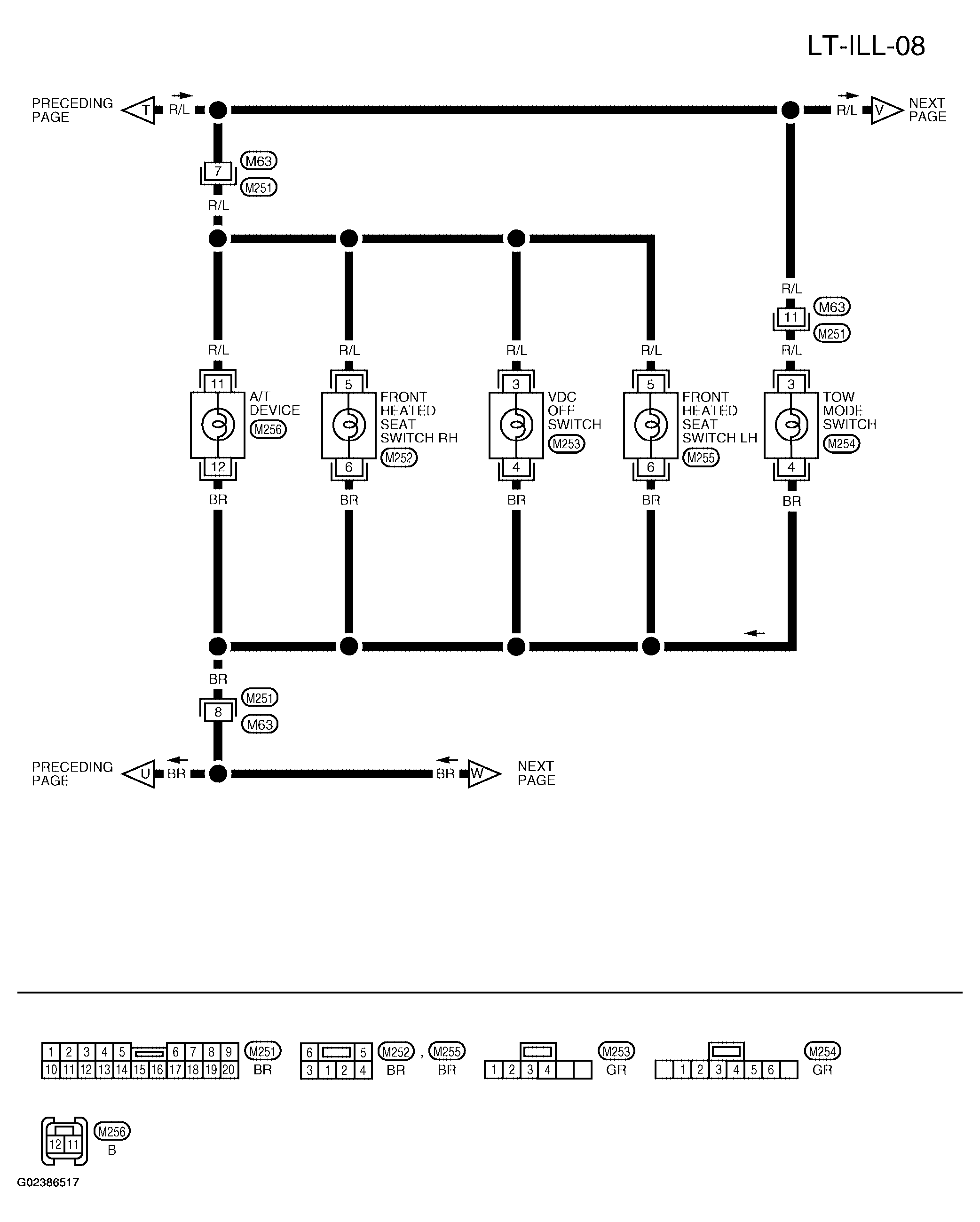

Fig 8: Wiring Diagram - LT-ILL-08

Courtesy of NISSAN MOTOR CO., U.S.A.

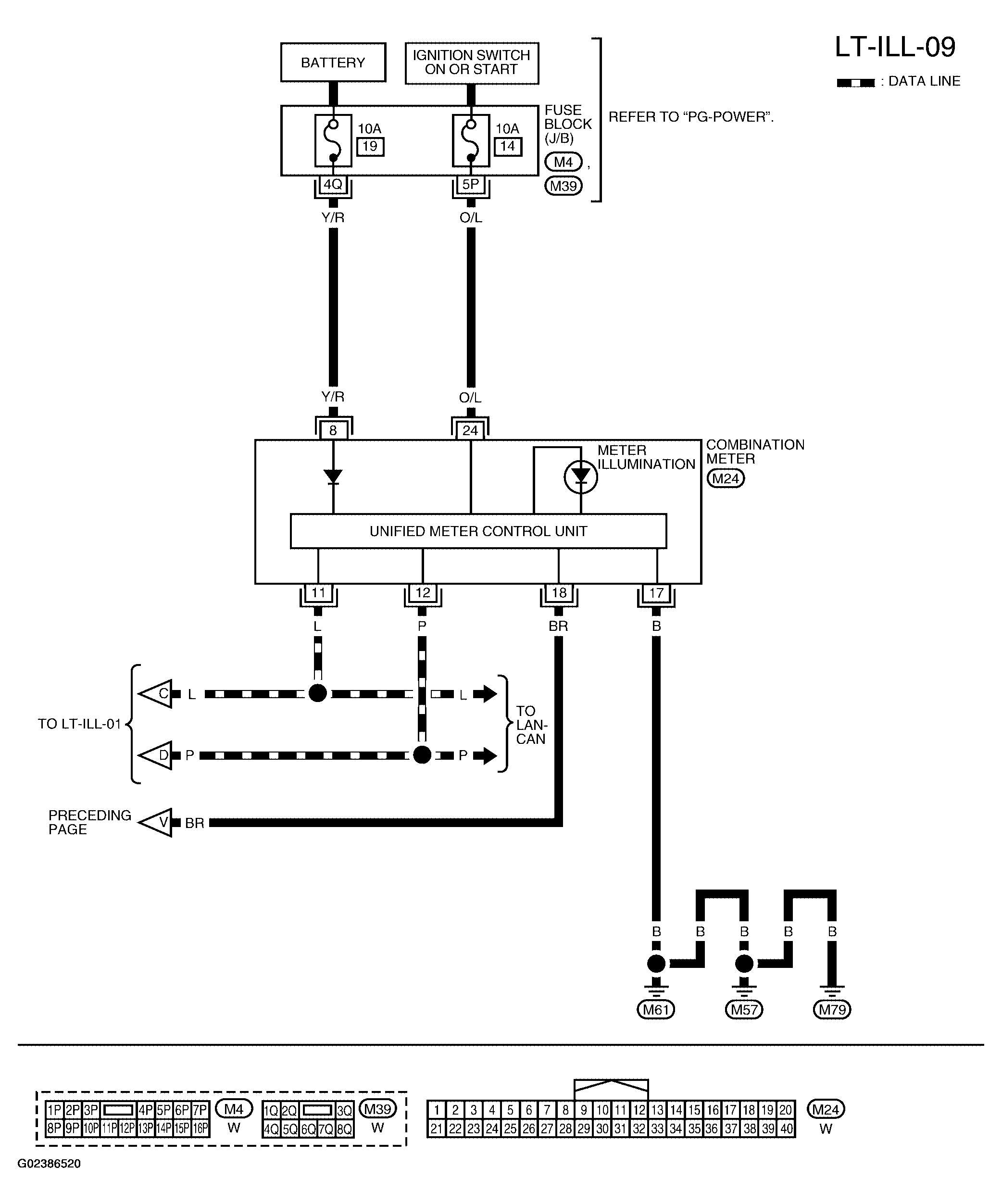

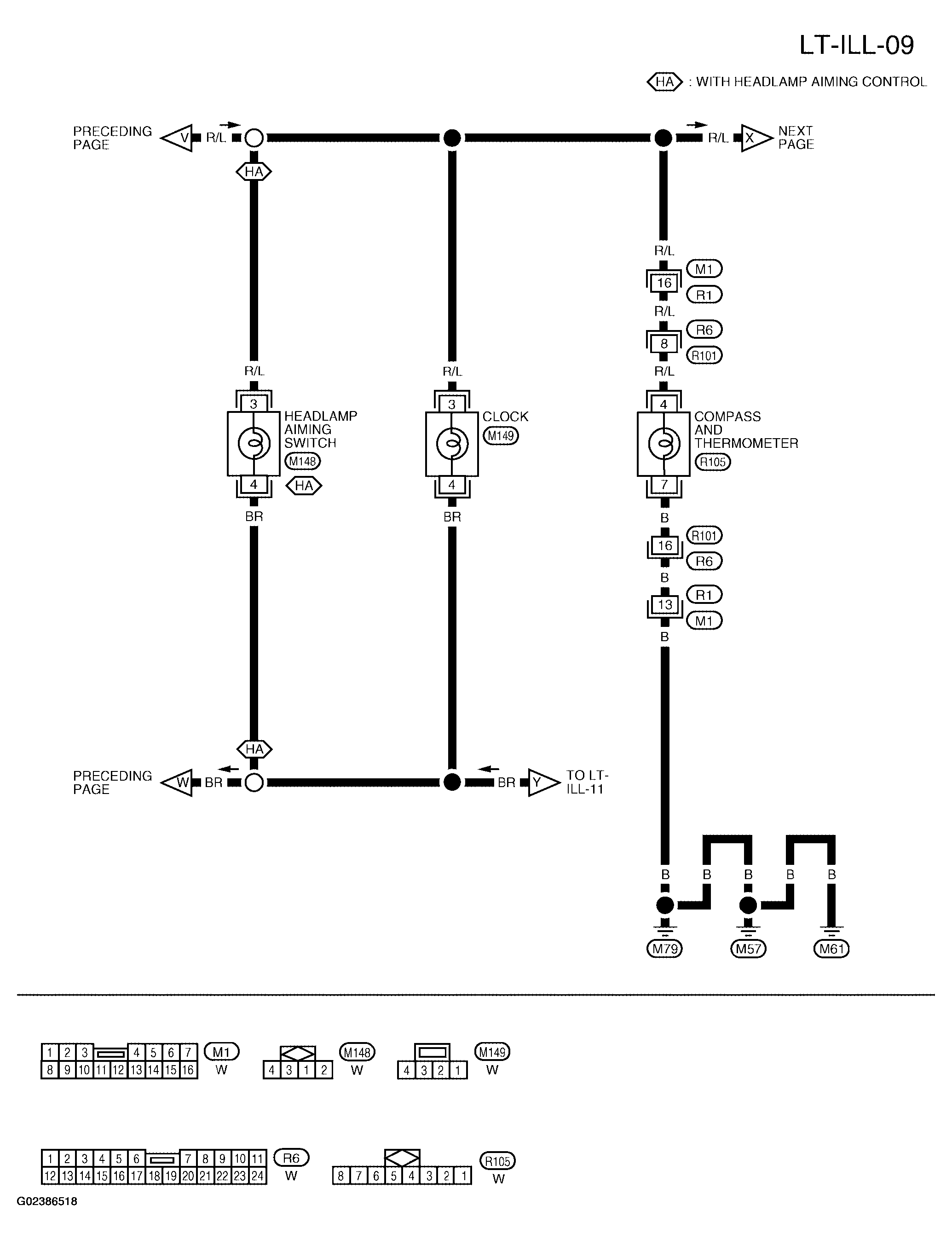

Fig 9: Wiring Diagram - LT-ILL-09

Courtesy of NISSAN MOTOR CO., U.S.A.

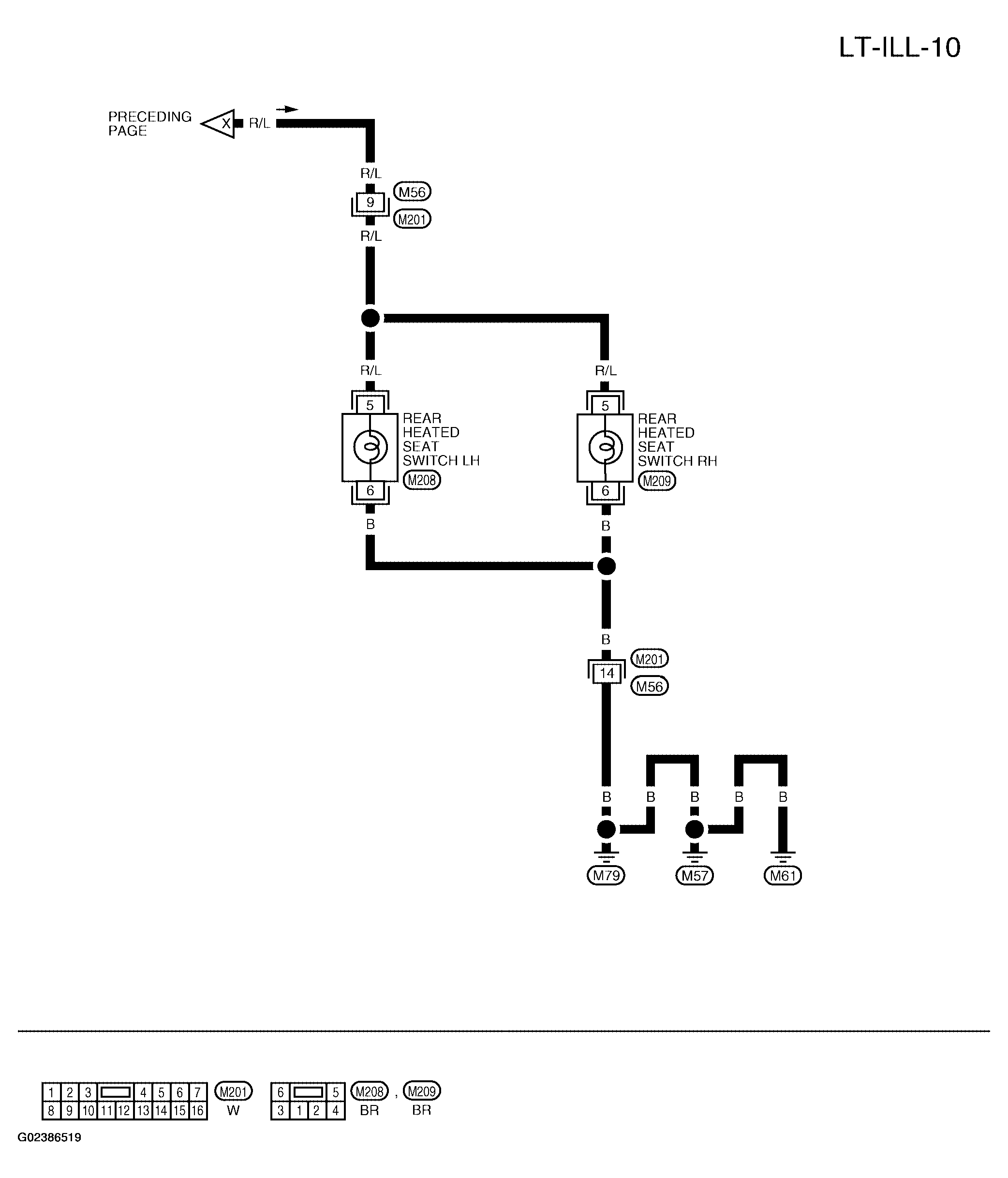

Fig 10: Wiring Diagram - LT-ILL-10

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Wiring Diagram - LT-ILL-09

Courtesy of NISSAN MOTOR CO., U.S.A.
