Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column cover.
  2. While pressing tabs, pull lighting and turn signal switch toward driver door and disconnect from the base.

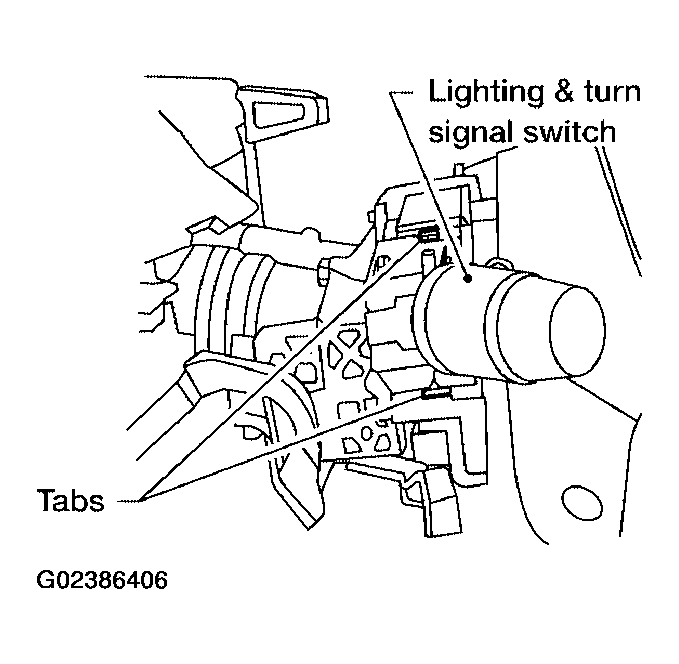

    Fig 1: Lighting And Turn Signal Switch Components
    G02386406Courtesy of NISSAN MOTOR CO., U.S.A.
