Removal and Installation of Headlamp Aiming Switch: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid A. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Carefully release the headlamp aiming switch retaining pawls and remove the switch.

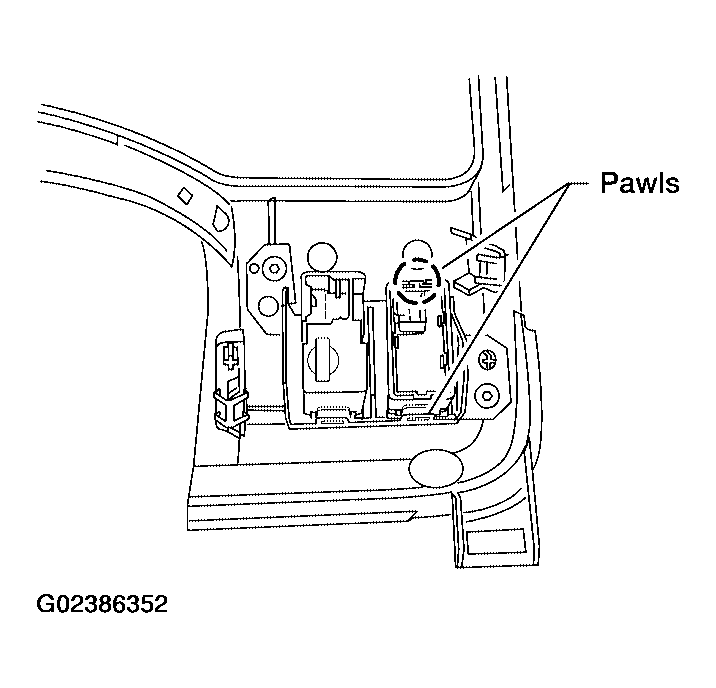

Fig 1: Identifying Headlamp Aiming Switch Retaining Pawls
Courtesy of NISSAN MOTOR CO., U.S.A.
