Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
  2. Touch "EXTERNAL LAMPS" on "SELECT TEST ITEM" screen.
  3. Touch item to be tested, and check operation.
  4. Touch "START".
  5. Touch "STOP" while testing to stop the operation.

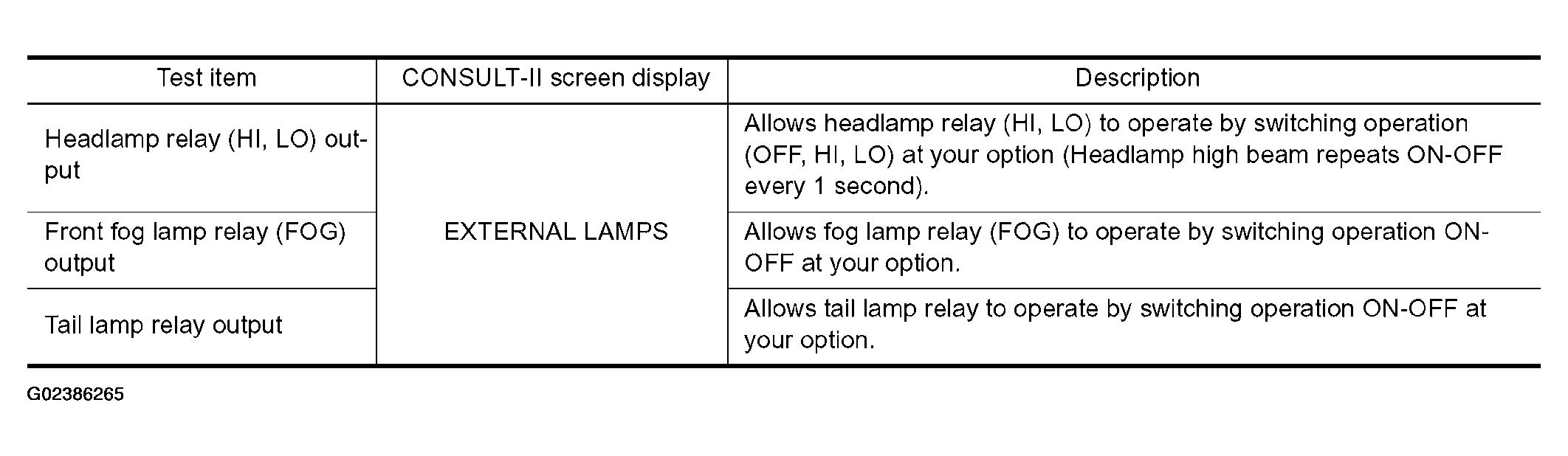

    Fig 1: Active Test - Operation Procedure Description Chart
    G02386265Courtesy of NISSAN MOTOR CO., U.S.A.
