Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove/disconnect the starter harness connectors.
  3. Remove the two starter bolts, using power tools.
  4. Remove the starter.

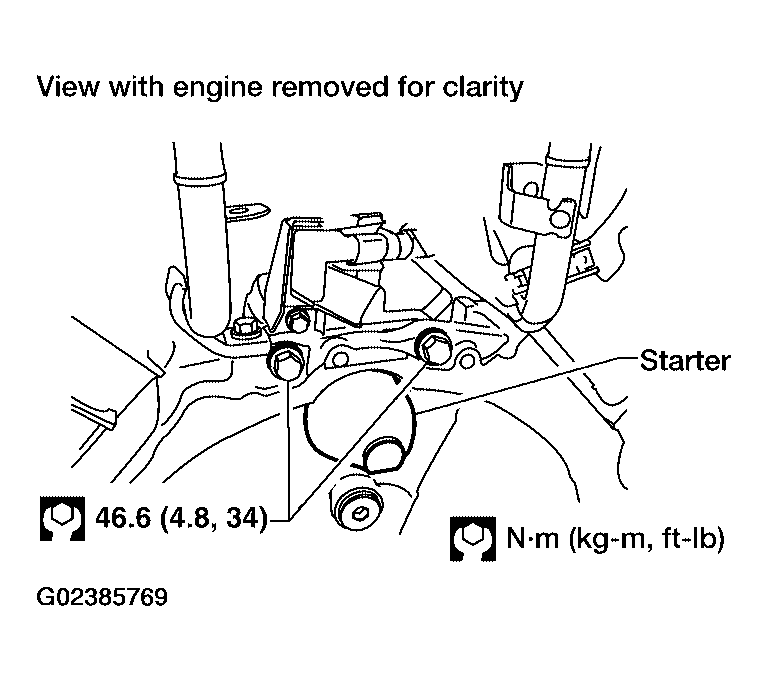

    Fig 1: Starter And Starter Bolts With Torque Specifications
    G02385769Courtesy of NISSAN MOTOR CO., U.S.A.
