Check Charge Warning Lamp Circuit

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CHARGE WARNING LAMP CONNECTION
1. Turn the ignition switch OFF.
2. Check to see if terminal 3 is clean and tight.
OK or NG
- OK: GO TO 2.
- NG: Repair terminal 3 connection. Confirm repair by performing complete Battery/Starting/Charging system test.
CHECK CHARGE WARNING LAMP CIRCUIT
1. Disconnect E205 connector from generator.
2. Apply ground to connector E205 terminal 3 (BR/W) with the ignition switch in the ON position.
  - Charge warning lamp should light up.
OK or NG
- OK: Replace the generator. Refer to "REMOVAL AND INSTALLATION ". Confirm repair by performing complete battery/starting/charging system test.
- NG: Check the following.
  - 10A fuse [No. 14, located in fuse block (J/B)]
  - Charge warning lamp
  - Harness for open or short between combination meter and fuse
  - Harness for open or short between combination meter and generator

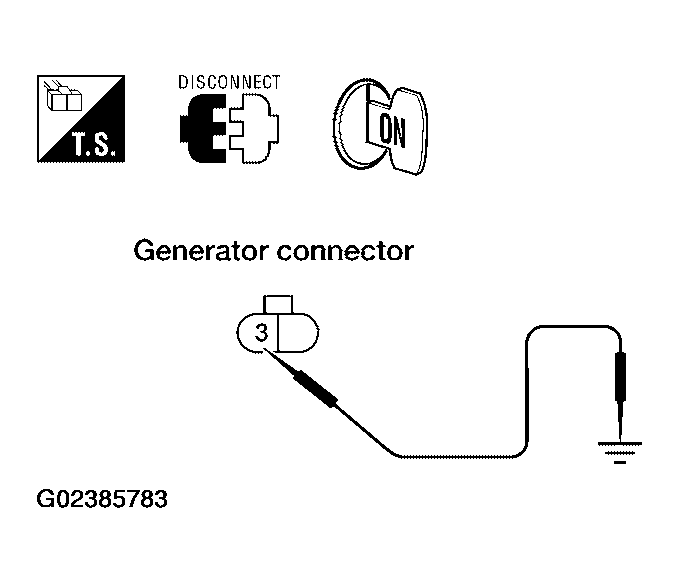

Fig 1: Applying Ground To Connector E205 Terminal 3
Courtesy of NISSAN MOTOR CO., U.S.A.
