CHECK CHARGE WARNING LAMP CIRCUIT CONNECTION
1. Turn the ignition switch OFF.
2. Check to see if terminal 3 is clean and tight.
OK or NG
- OK: GO TO 2.
- NG: Repair terminal 3 connection. Confirm repair by performing complete Battery/Starting/Charging system test.
CHECK CHARGE WARNING LAMP CIRCUIT
1. Disconnect E205 connector from generator.
2. Apply ground to connector E205 terminal 3 (BR/W) with the ignition switch in the ON position.
  - Charge warning lamp should light up.
OK or NG
- OK: GO TO "WORK FLOW ".
- NG: Check the following.
  - 10A fuse [No. 14, located in fuse block (J/B)]
  - Charge warning lamp
  - Harness for open or short between combination meter and fuse
  - Harness for open or short between combination meter and generator

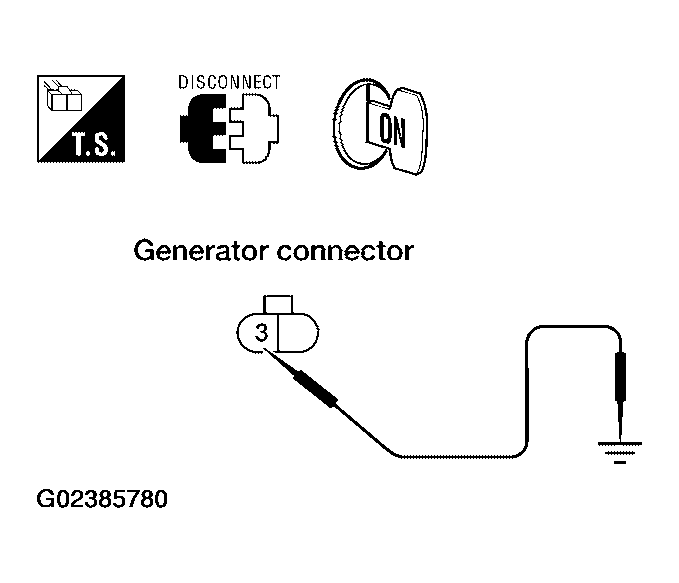

Fig 1: Applying Ground To Connector E205 Terminal 3
Courtesy of NISSAN MOTOR CO., U.S.A.
